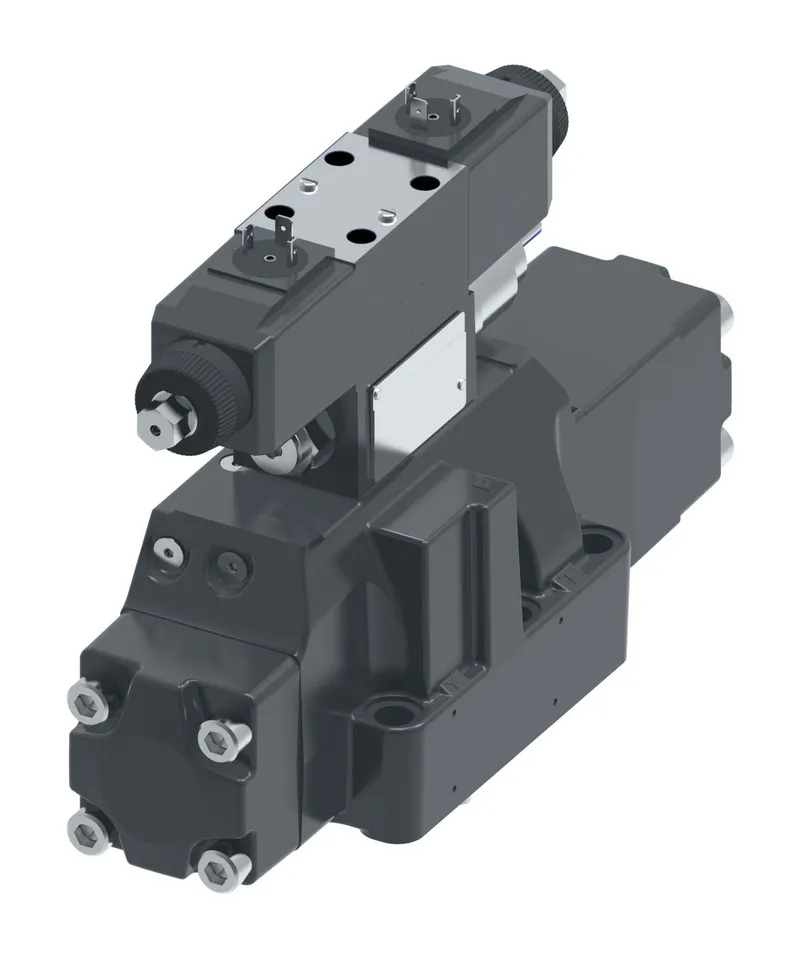

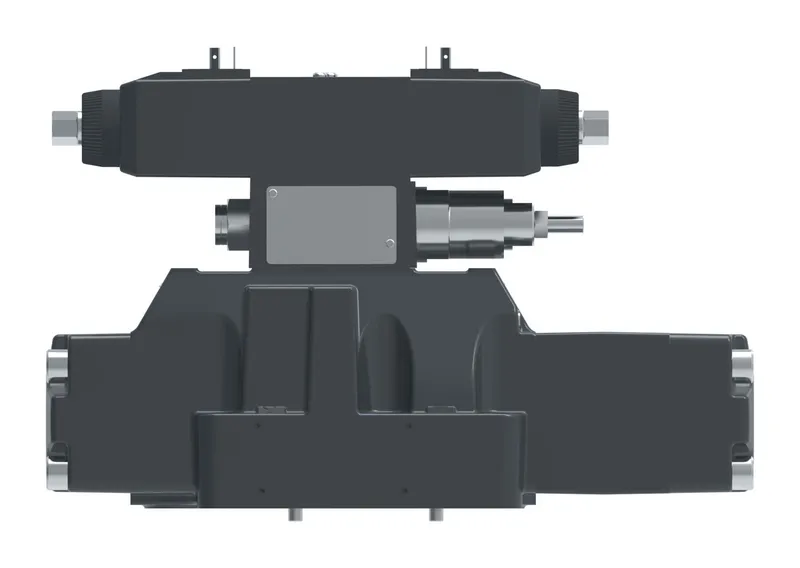

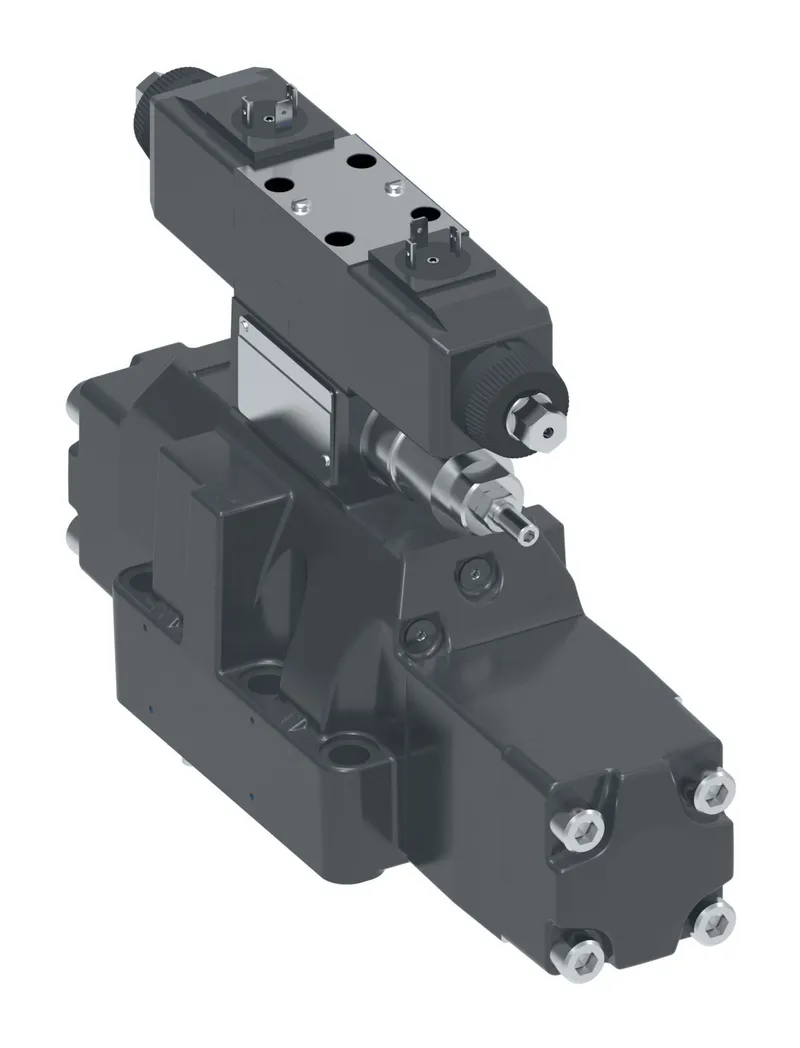

KDG5V-8-2C330N-X-H-M-U-H1-20, KDG5V82C330NXHMUH120

Name: KDG5V-8-2C330N-X-H-M-U-H1-20, KDG5V82C330NXHMUH120
Brand: Danfoss (Drives)
SKU: 02-353756

MPN: 02-353756 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Manifold directional control valves
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-353756 be shipped?

02-353756 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-353756 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-353756 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-353756, subject to availability and destination.

KDG5V-8-2C330N-X-H-M-U-H1-20, KDG5V82C330NXHMUH120 - 02-353756

Specifications

A Port flow LPM	330.00
A Port flow USGPM	87.20
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	330.00
B Port flow USGPM	87.20
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	20 Series
Electrical Connection	ISO 4400 (DIN 43650) connector
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters

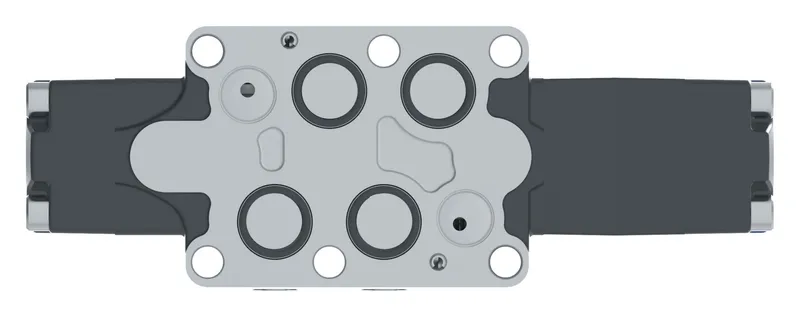

Interface	ISO4401-08/NFPA D08/CETOP 8/NG25
Manual override	Water-resistant
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KDG5V82C330NXHMUH120
On board electronics	No
Performance	Standard
Pilot drain	External
Pilot supply	Internal
Product height in	10.100
Product height mm	256.540
Product length in	9.600
Product length mm	243.840
Product width in	4.520
Product width mm	114.808
ProFX compatible	No
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	350
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
