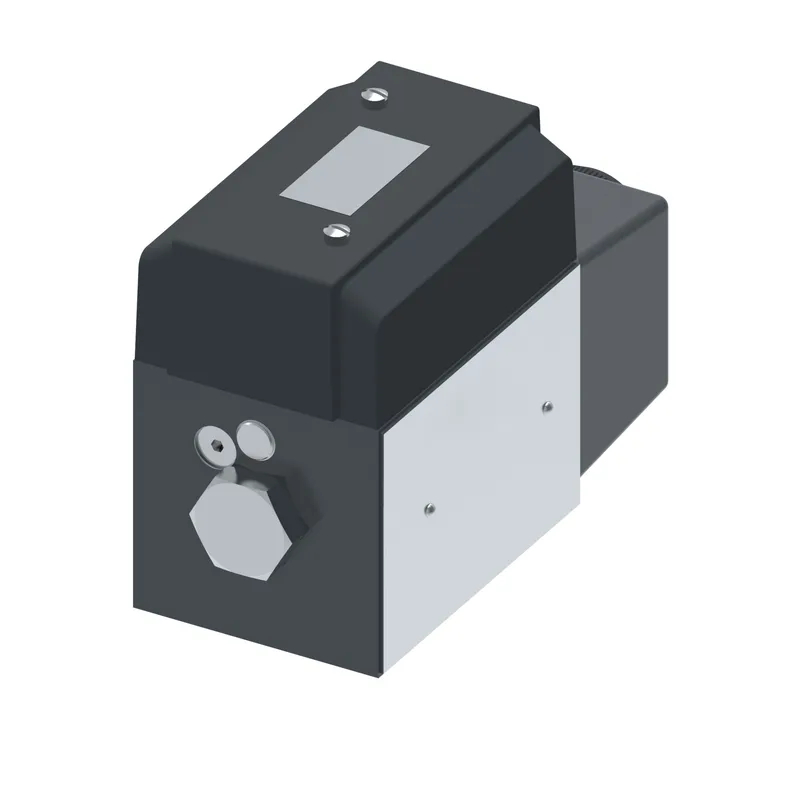

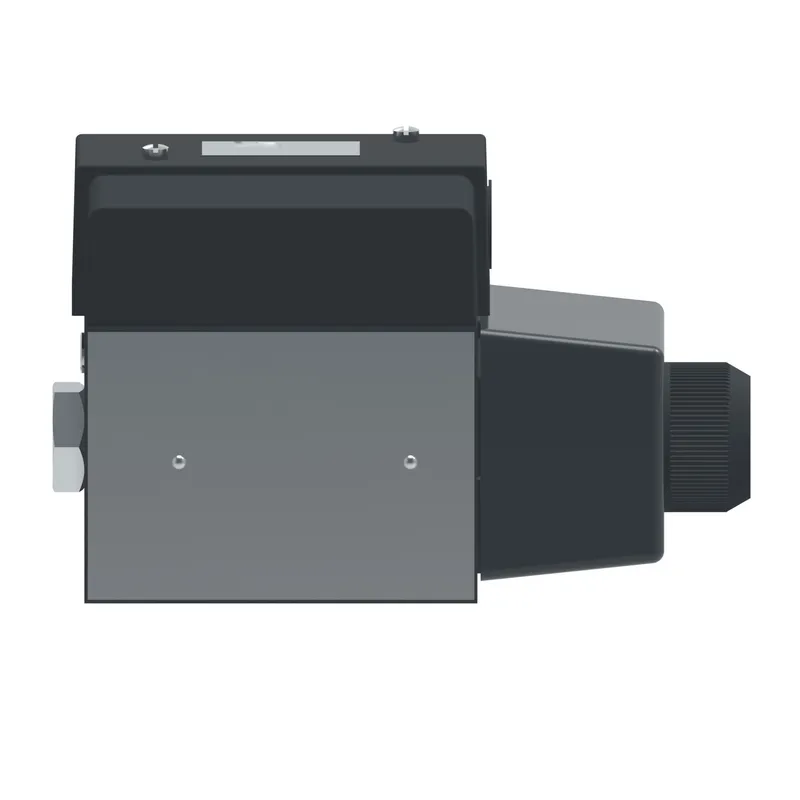

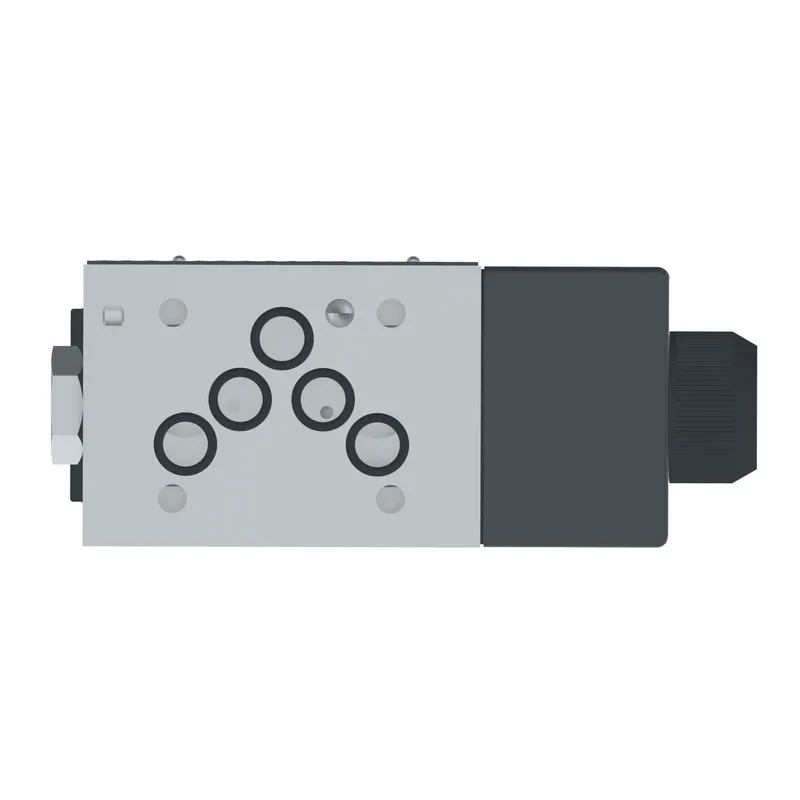

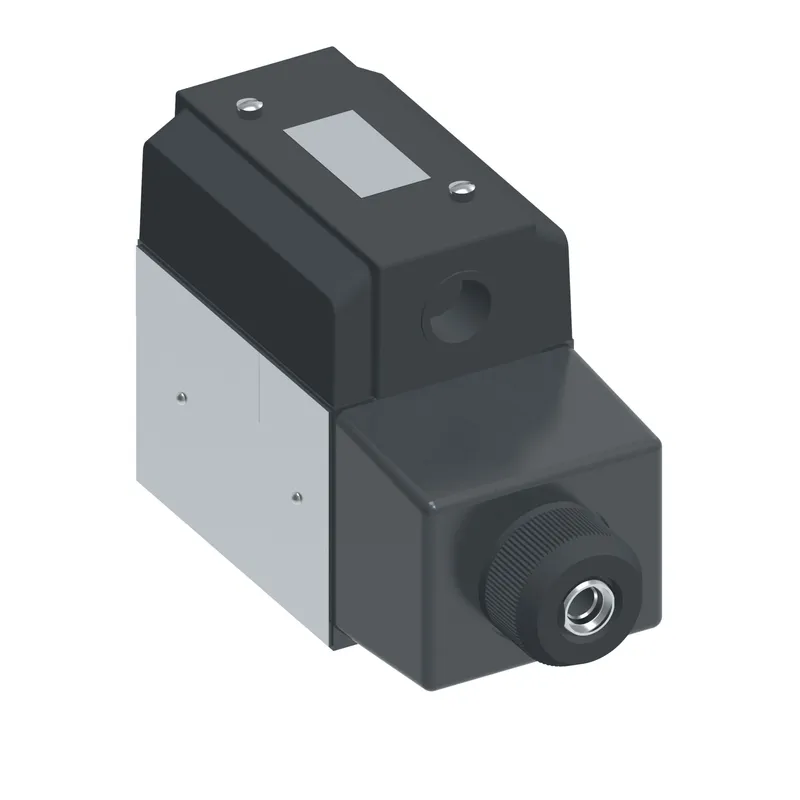

DG4V4-012A-M-W-B-5-10, DG4V4012AMWB510

Name: DG4V4-012A-M-W-B-5-10, DG4V4012AMWB510
Brand: Danfoss (Drives)
SKU: 02-337549

MPN: 02-337549 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Industrial valves
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-337549 be shipped?

02-337549 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-337549 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-337549 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-337549, subject to availability and destination.

DG4V4-012A-M-W-B-5-10, DG4V4012AMWB510 - 02-337549

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	10 Series
Electrical Connection	1/2" NPT thread wiring housing
Energ Time	18-25 ms
Flow rate upto GPM	30.0
Flow rate upto LPM	115.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05/NFPA D05
Manual override	Plain
Model Code 1	DG4V4012AMWB510
Performance	Standard performance
Power Consumption	37 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	4.590
Product length in	6.880
Product length mm	174.752
Product width in	2.840
Product width mm	72.136
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset end to end
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	120.0
Tank port rating PSI	1750
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	50
Working temp max F	122
Working temp min C	20
Working temp min F	70
