PVQ25AR01AUB0A2100000200100CD0A, PVQ25AR01AUB0A2100000200100CD0A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Medium-duty open-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-335528 be shipped?
02-335528 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-335528 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-335528 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-335528, subject to availability and destination.

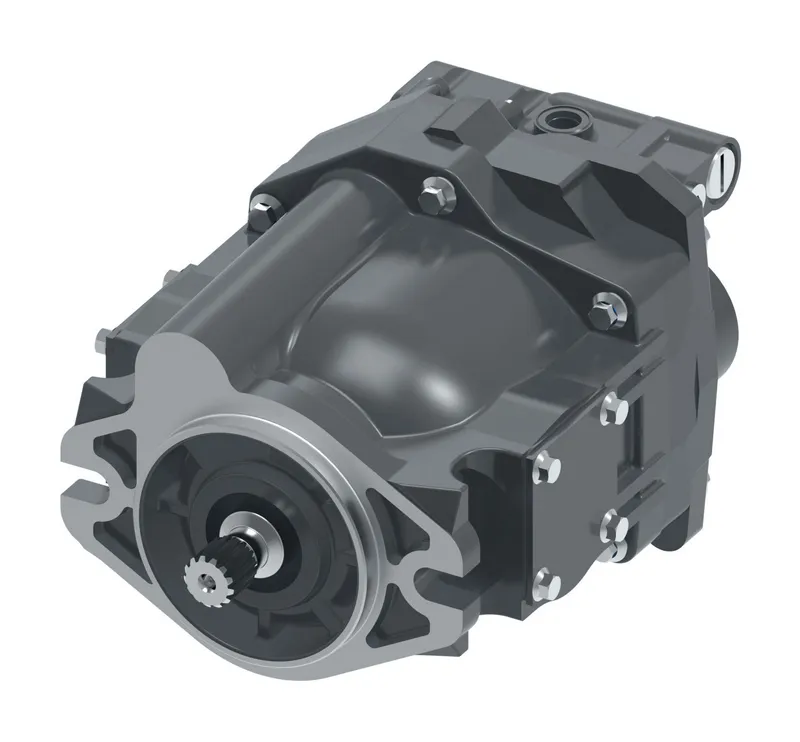

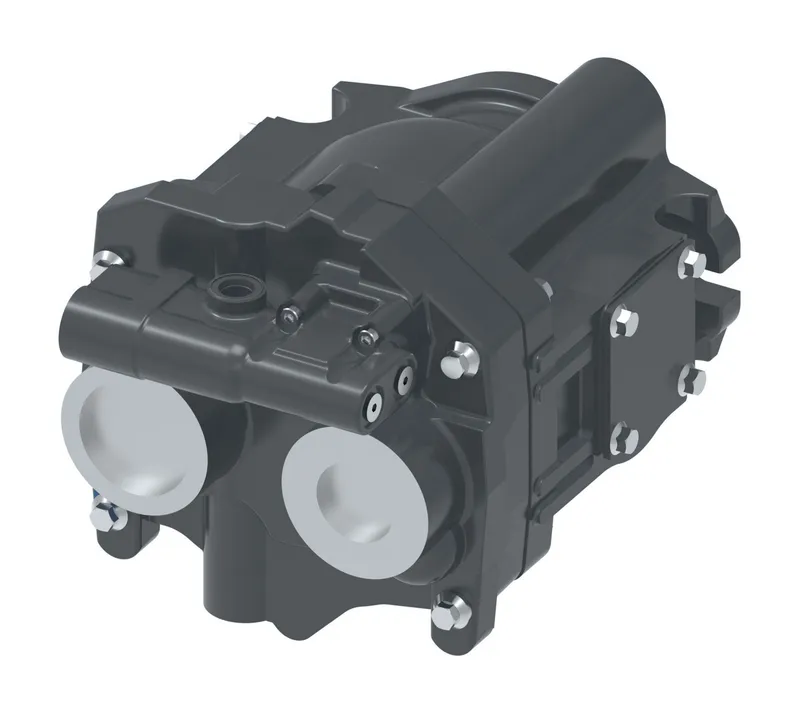

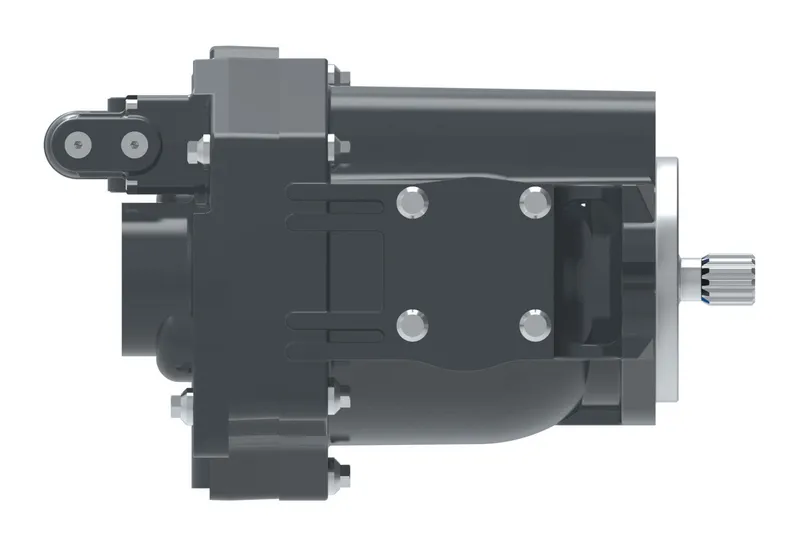

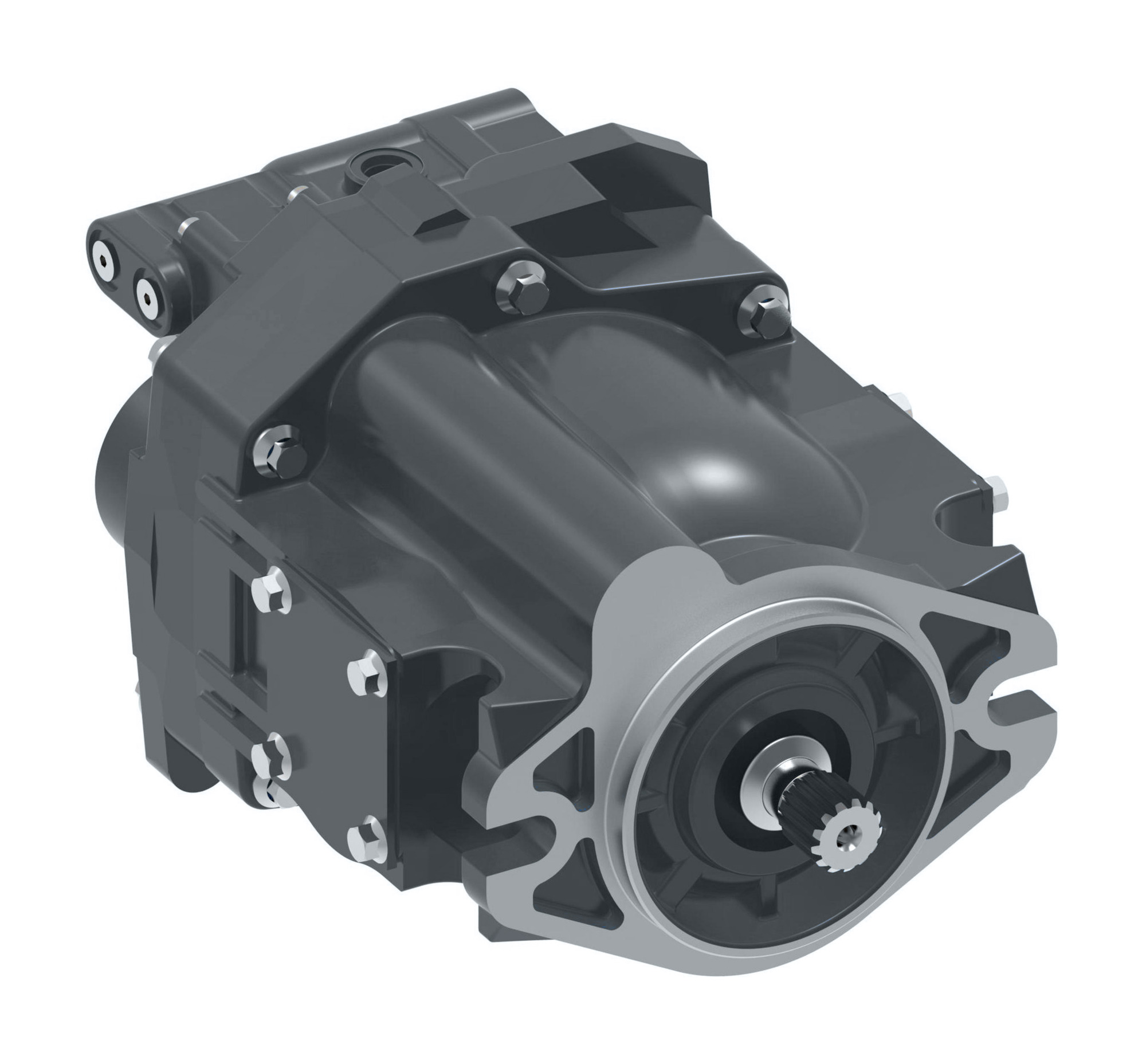

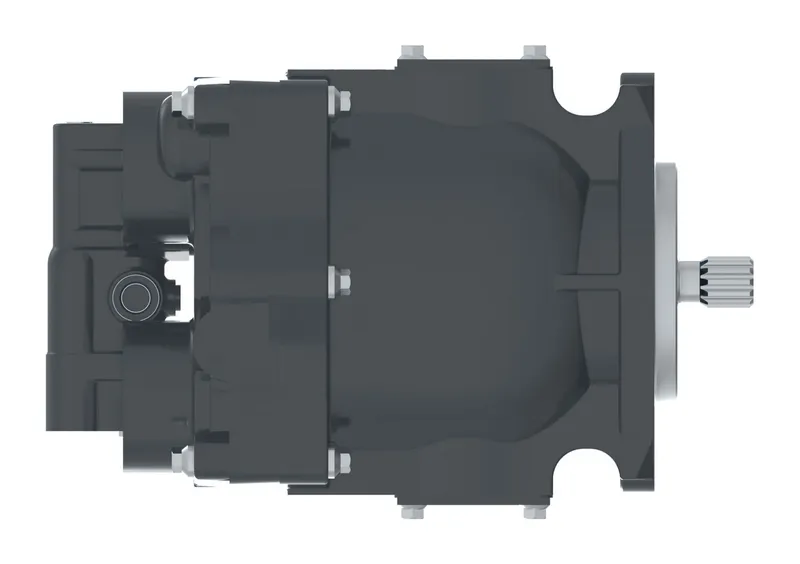

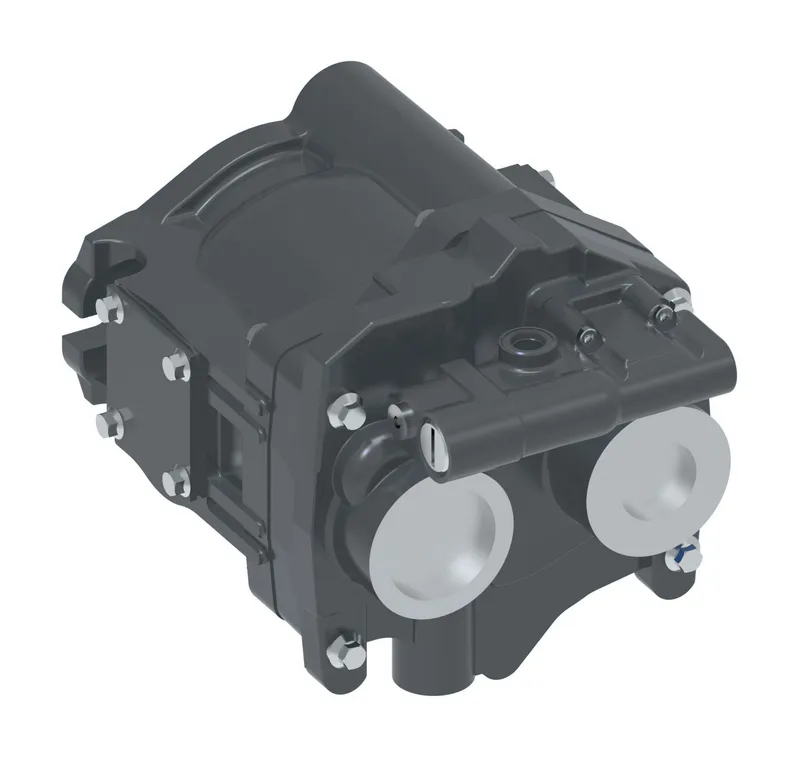

Danfoss PVQ25AR01AUB0A2100000200100CD0A, PVQ25AR01AUB0A2100000200100CD0A, manufacturer part number 02-335528. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| CODE TITLE | OPEN CIRCUIT PISTON PUMP |
| DISPLACEMENT | 25.2 cm3/r [1.54 in3/r] |
| Input shaft rotation | RIGHT-HAND ROTATION (CW) |
| FRONT MOUNTING & INPUT SHAFT | 2 BOLT B (SAE J744-101-2) WITH 22.2 [.88] DIA STRAIGHT KEY SHAFT (SAE J744-22-1) (KEY INCLUDED) |
| MAIN PORT LOCATION & SIZE | END PORTS; SUCTION - 1.625-12 UN-2B SAE O-RING PORT; PRESSURE - 1.0625-12 UN-2B SAE O-RING PORT |
| Drain port size & location | .750-16 UNF-2B SAE O-RING PORT - TOP (D1); BOTTOM PLUGGED (D2) |
| DIAGNOSTIC PRESSURE PORT | NO DIAGNOSTIC PRESSURE PORT |
| CONTROLLER TYPE | NON-ADJUSTABLE PRESSURE COMPENSATOR (012 ONLY) |
| PR COMP UNLOADING VALVE STG | 203.4-210.3 bar [2950-3050 lbf/in2] |
| FLOW COMP STG OR UV STANDBY | NO FLOW COMPENSATOR SETTING |
| SECONDARY COMPENSATOR STETTING | NO SECONDARY COMPENSATOR SETTING |
| Control special features | NO SPECIAL FEATURES |
| Maximum displacement option | ADJUSTABLE MAXIMUM DISPLACEMENT (SET AT MAXIMUM) |
| AUXILIARY MOUNTING & OUTPUT S | NO AUXILIARY MOUNTING OR OUTPUT SHAFT |
| SHAFT SEALS | STANDARD SHAFT SEAL (NITRILE) |
| SPECIAL FEATURES | NO SPECIAL FEATURES |
| Paint | BLUE PRIMER |
| CUSTOMER & UNIT IDENTIFICATION | NONE - MARK ASSEMBLY NUMBER, COMPLETE MODEL CODE AND BUILD DATE CODE ON PLATE |
| DESIGN CODE | FIRST DESIGN |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | PVQ 25cc Pump |
| Model Code 1 | PVQ25AR01AUB0A2100000200100CD0 |
| Model Code 2 | A |
