EPV10-0-V-12D-S-W-10, EPV10-0-V-12D-S-W-10
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-325126 be shipped?
02-325126 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-325126 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-325126 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-325126, subject to availability and destination.

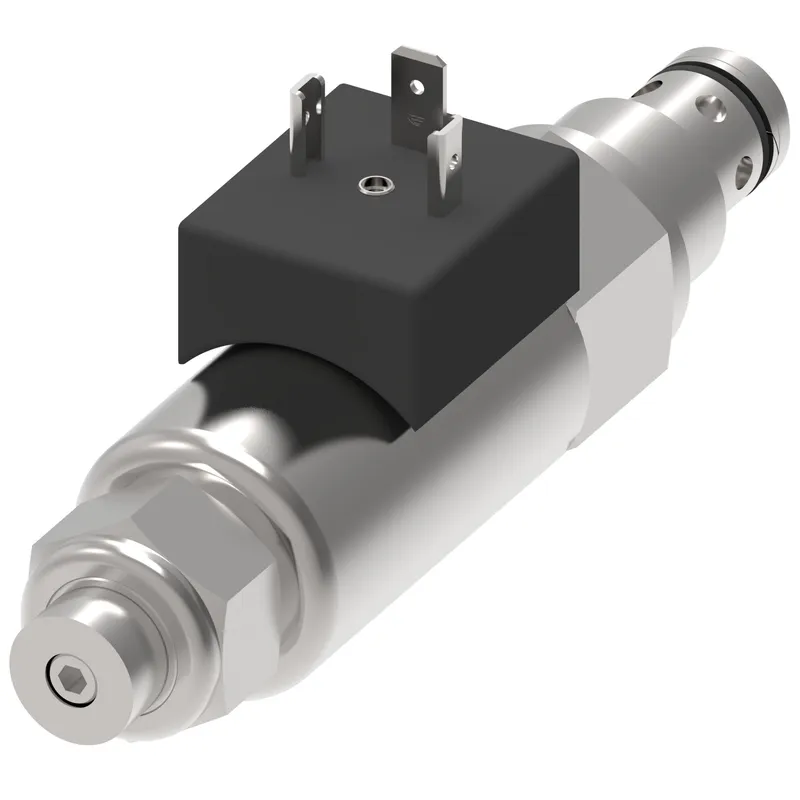

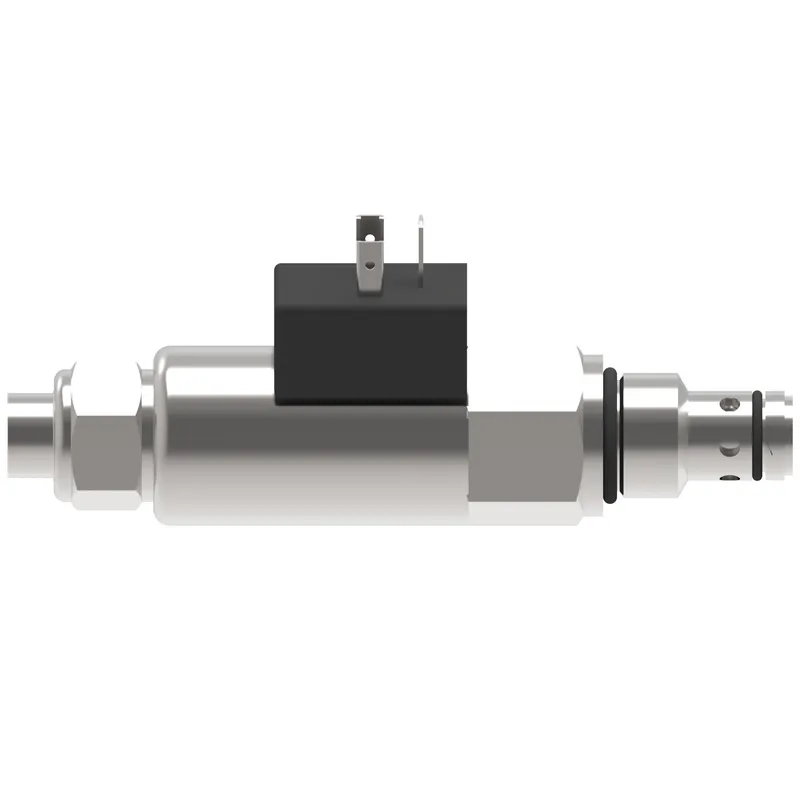

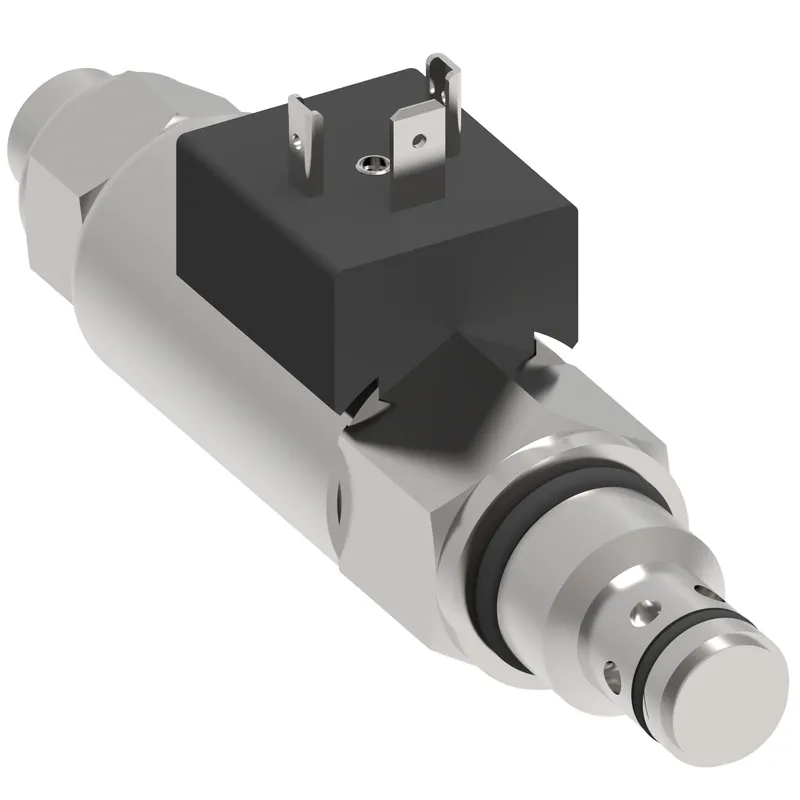

Danfoss EPV10-0-V-12D-S-W-10, EPV10-0-V-12D-S-W-10, manufacturer part number 02-325126. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Coil series | EPV Series |
| Coil termination | Flying Lead |
| Diode | No |
| Flow rate GPM | 8.00 |
| Flow rate LPM | 30.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Prop Flow Control |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 10 cc/min |
| Minimum working pressure BAR | 350.00 |
| Minimum working pressure PSI | 5000.00 |
| Model Code 1 | EPV10-0-V-12D-S-W-10 |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -30 C to 90 C (-22 to 194 F) |
| Operation | Elecro Proportionally Ctrl |
| Override type | Screw-in type |
| Port size | None |
| Port type | Cartridge Only |
| Pressure rating BAR | 350.00 |
| Pressure rating PSI | 5000.00 |
| Product height in | 1.710 |
| Product height mm | 43.434 |
| Product length in | 5.170 |
| Product length mm | 131.318 |
| Product width in | 1.710 |
| Product width mm | 43.434 mm |
| Recommended filtration level | 15/13/11 |
| Seal type | Viton |
| Special features | None |
| Style | Poppet |
| Torque into aluminium cavity | 47-54 Nm |
| Torque into steel cavity | 68-75 Nm |
| Voltage | 12 V |
| Voltage type | DC |
| Working pressure max BAR | 350.00 |
| Working pressure max PSI | 5000.00 |
