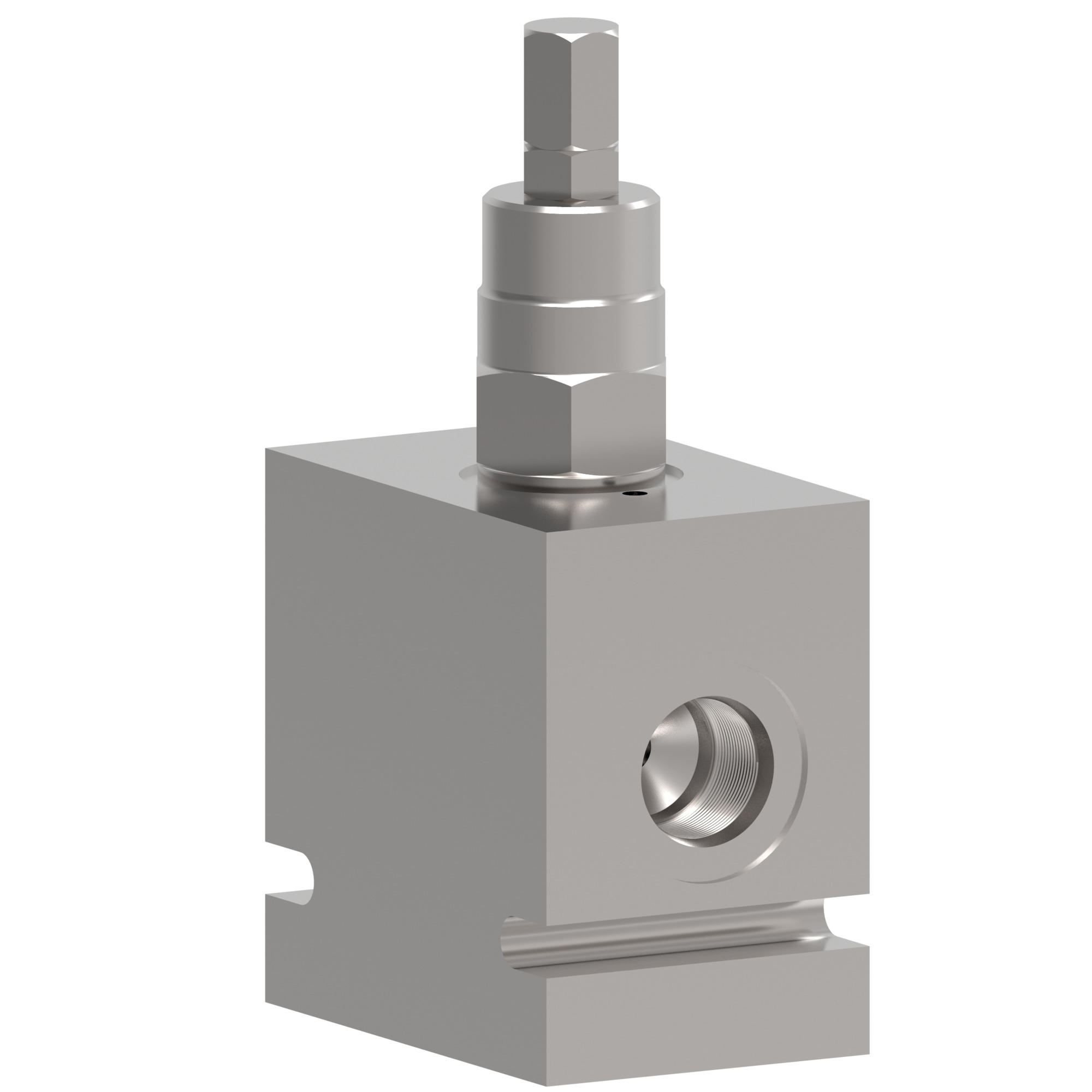

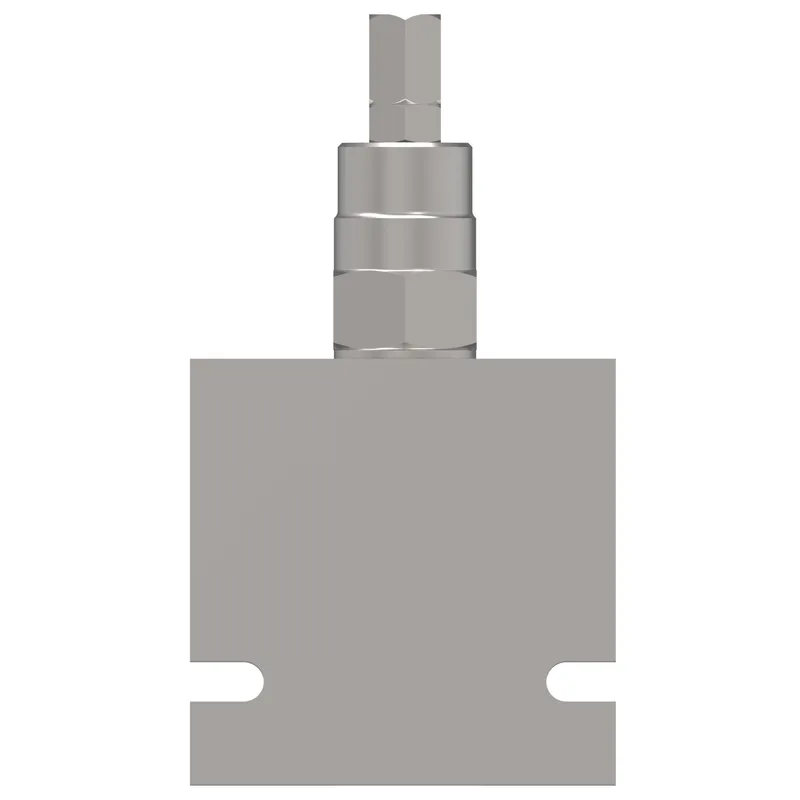

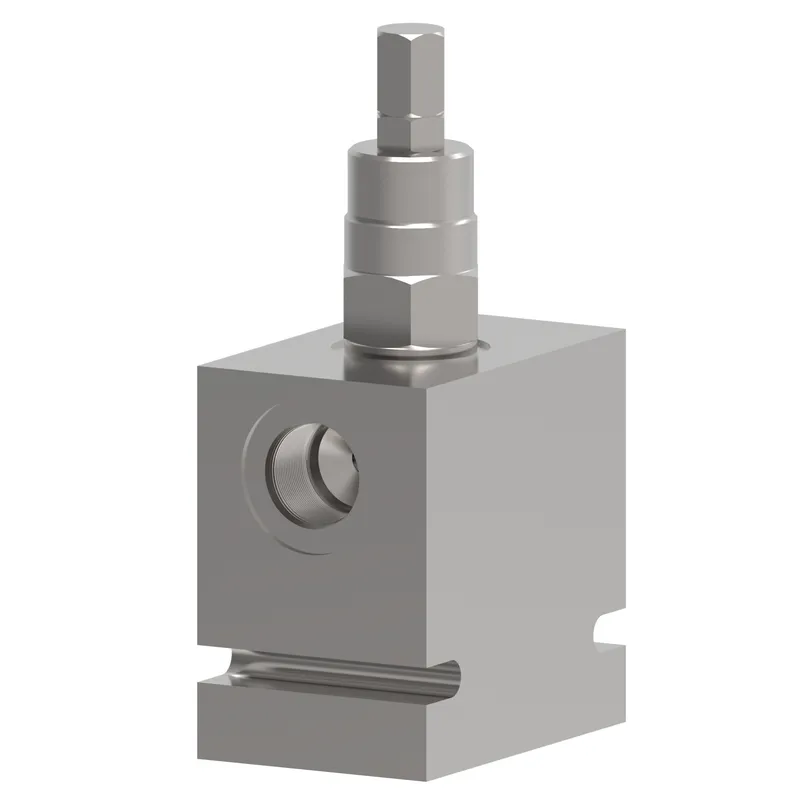

CBV2-10-C-DS8T-A-50/36 CNTRBLNCE VLV10-1, CBV2-10-C-D-S-8T-A-50-36
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-180312 be shipped?
02-180312 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-180312 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-180312 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-180312, subject to availability and destination.
Danfoss CBV2-10-C-DS8T-A-50/36 CNTRBLNCE VLV10-1, CBV2-10-C-D-S-8T-A-50-36, manufacturer part number 02-180312. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Cap |
| Brand | Vickers by Danfoss |
| Cavity | C-10-3S |
| Flow rate GPM | 16.00 |
| Flow rate LPM | 60.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Counterbalance Valve |
| Housing | Yes |
| Housing material | Aluminum |
| Installation type | Screw-in Cartridge |
| Leakage | 5 dpm |
| Max pilot adjust p BAR | 29.000 |
| Max pilot adjust p PSI | 429.000 |
| Max relief press BAR | 350.000 |
| Max relief press PSI | 5000.000 |
| Min pilot adjust p BAR | 24.000 |
| Min pilot adjust p PSI | 351.000 |
| Model Code 1 | CBV2-10-C-D-S-8T-A-50-36 |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot ratio | 10:1 |
| Port size | 1/2" |
| Port type | SAE |
| Pressure rating BAR | 350.000 |
| Pressure rating PSI | 5000.000 |
| Product height in | 4.250 |
| Product height mm | 107.950 |
| Product length in | 3.500 |
| Product length mm | 88.900 |
| Product width in | 2.000 |
| Product width mm | 50.800 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Pilot assisted relief w check |
| Valve torque into cavity | 68-75 Nm |
