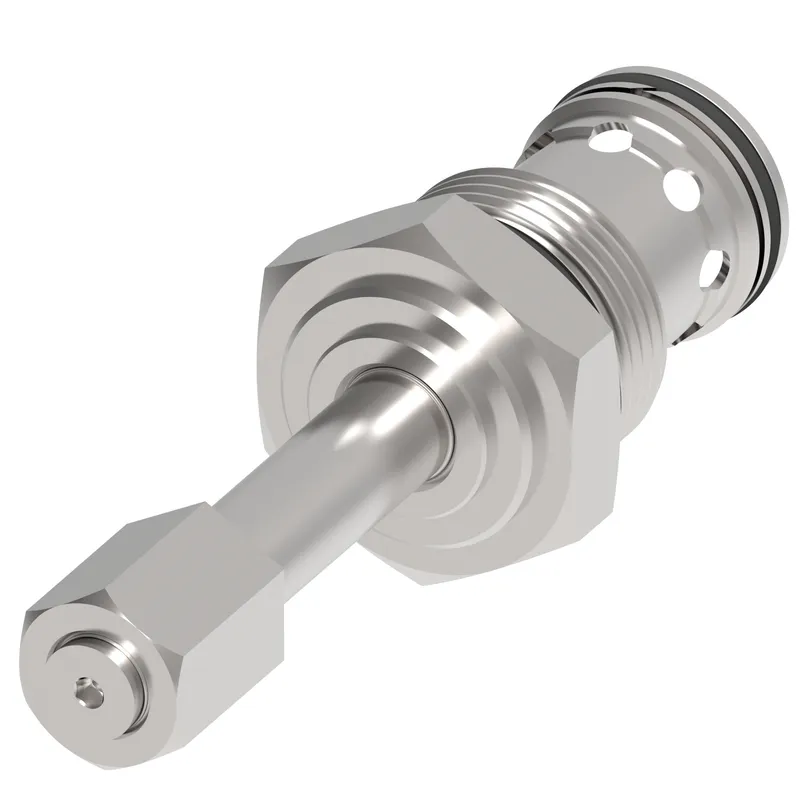

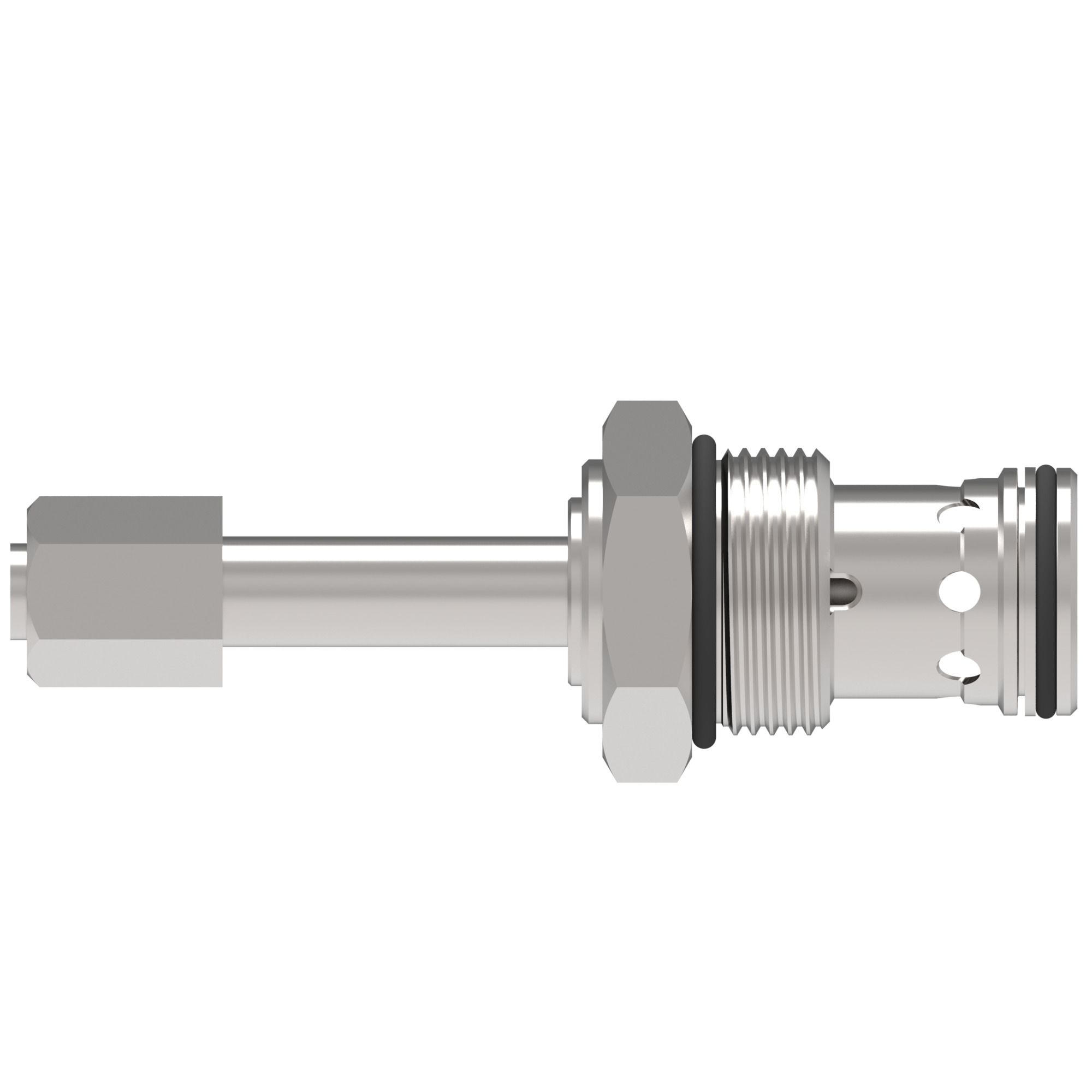

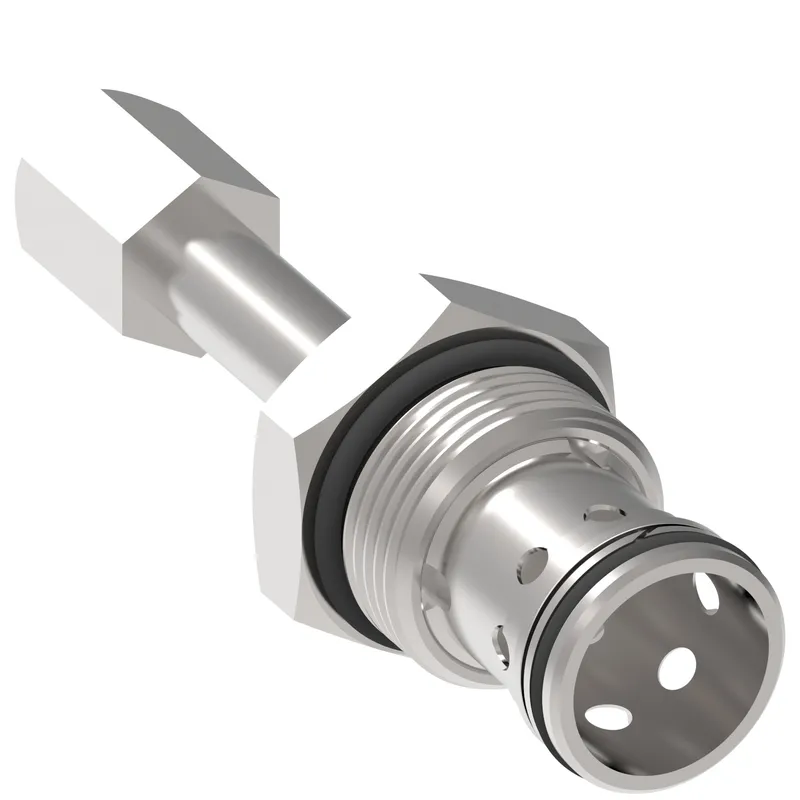

ERV1-16-8.00-0-00, ERV1-16-8.00-0-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-176785 be shipped?
02-176785 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-176785 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-176785 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-176785, subject to availability and destination.
Danfoss ERV1-16-8.00-0-00, ERV1-16-8.00-0-00, manufacturer part number 02-176785. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-16-2 |
| Coil series | None |
| Coil termination | None |
| Diode | No |
| Factory set pressure BAR | 55.120 |
| Factory set pressure PSI | 801.00 |
| Flow rate GPM | 35.00 |
| Flow rate LPM | 132.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Proportional Pressure Relief |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Minimum working pressure BAR | 4.00 |
| Minimum working pressure PSI | 51.00 |
| Model Code 1 | ERV1-16-8.00-0-00 |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Elecronically Proportionally Controlled |
| Override type | None |
| Port size | None |
| Port type | Cartridge only |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3053.00 |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Spool |
| Torque into aluminium cavity | 108-122 Nm |
| Torque into steel cavity | 136-149 Nm |
| Voltage type | DC |
| Working pressure max BAR | 210.00 |
| Working pressure max PSI | 3000.00 |
