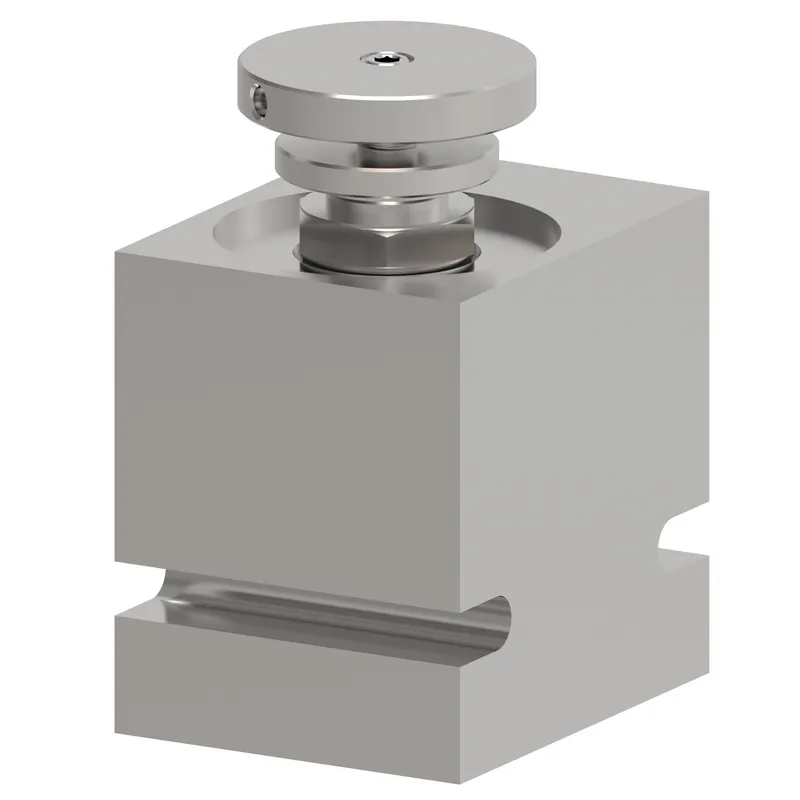

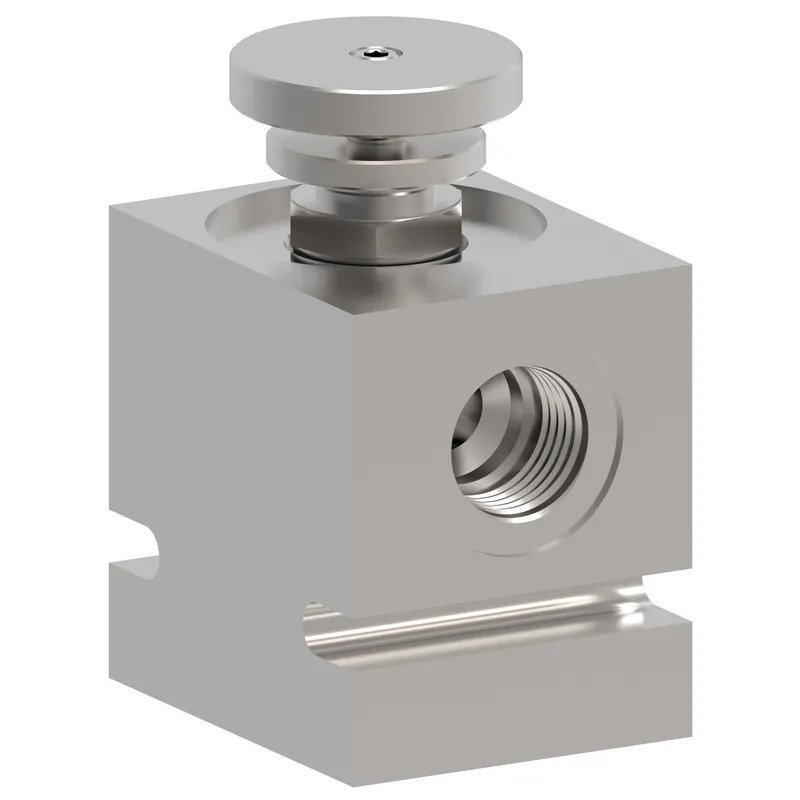

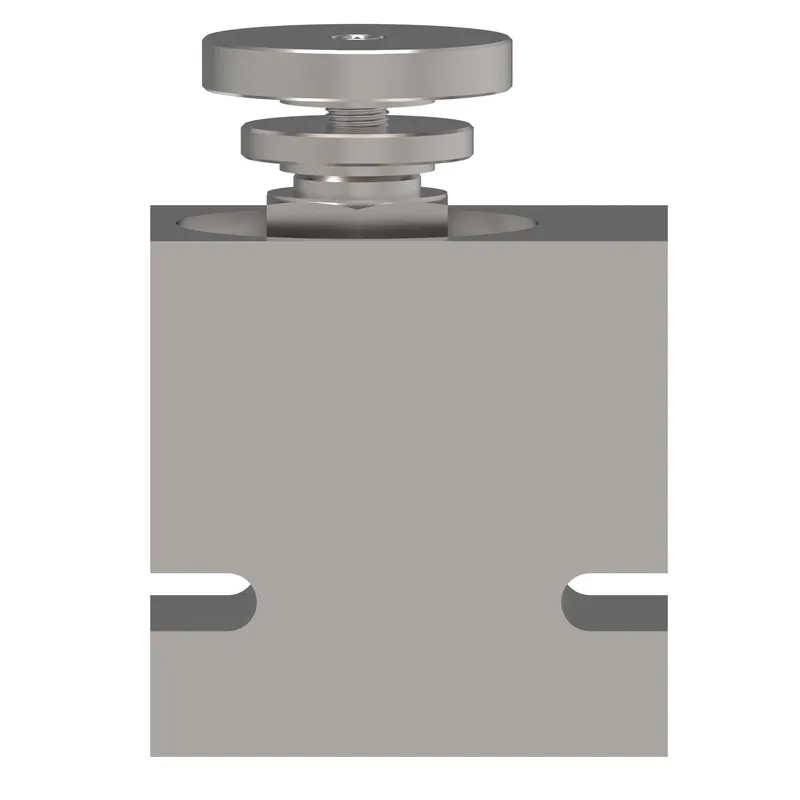

NV1-20-K-16T, NV1-20-K-16T
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-175981 be shipped?
02-175981 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-175981 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-175981 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-175981, subject to availability and destination.
Danfoss NV1-20-K-16T, NV1-20-K-16T, manufacturer part number 02-175981. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Knob |
| Brand | Vickers by Danfoss |
| Cavity | C-20-2 |
| Flow rate GPM | 70.000 |
| Flow rate LPM | 265.00 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Needle Valve |
| Housing | Yes |
| Housing material | Aluminum |
| Installation type | Line Mounted |
| Leakage | 0.3 cc/min |
| Maximum flow rate LPM | 70.00 |
| Minimum flow rate GPM | 70.000 |
| Minimum flow rate LPM | 265.00 |
| Model Code 1 | NV1-20-K-16T |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Port size | 1" |
| Port type | SAE |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3000.00 |
| Product height in | 6.440 |
| Product height mm | 163.576 |
| Product length in | 4.000 |
| Product length mm | 101.600 |
| Product width in | 3.240 |
| Product width mm | 82.296 mm |
| Rec filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Spool seal | No |
| Style | Spool |
| Torque alu cavity | 128-155 Nm |
| Torque steel cavity | 163-183 Nm |
