FCV7-10-K-8H-NV, FCV7-10-K-8H-NV
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-172885 be shipped?
02-172885 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-172885 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-172885 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-172885, subject to availability and destination.

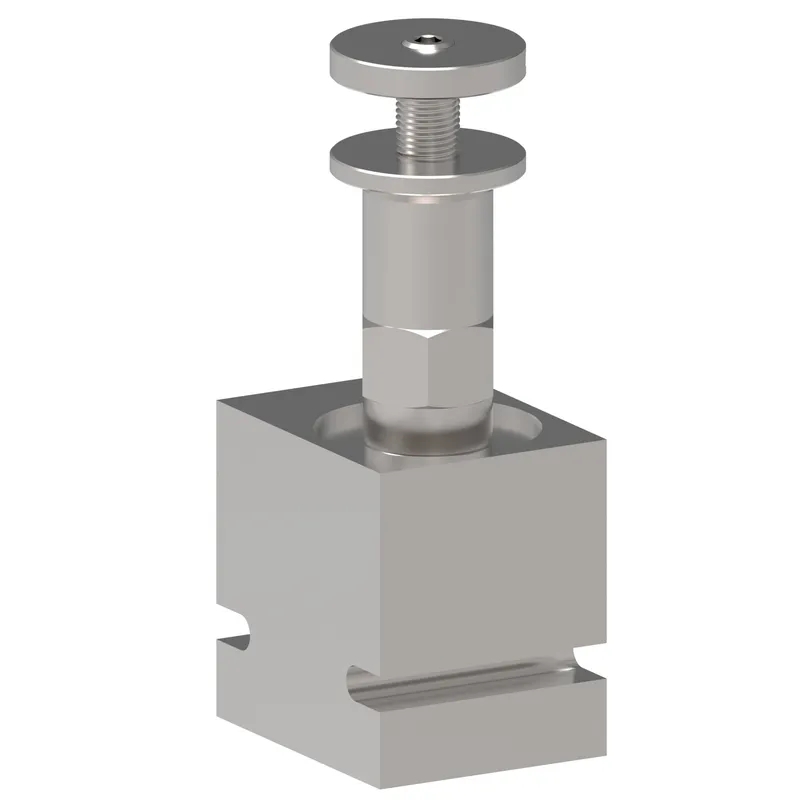

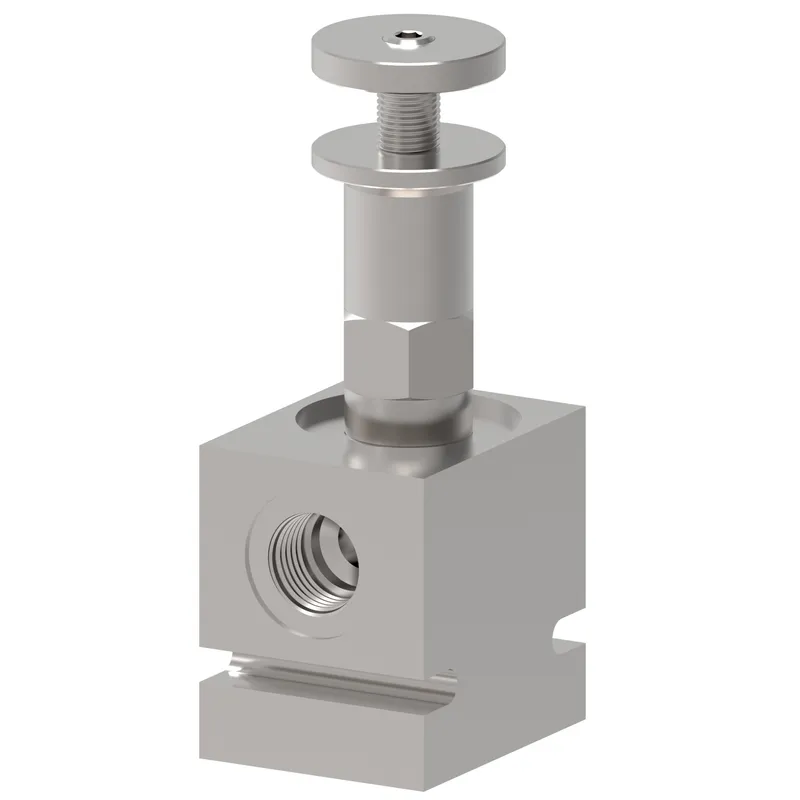

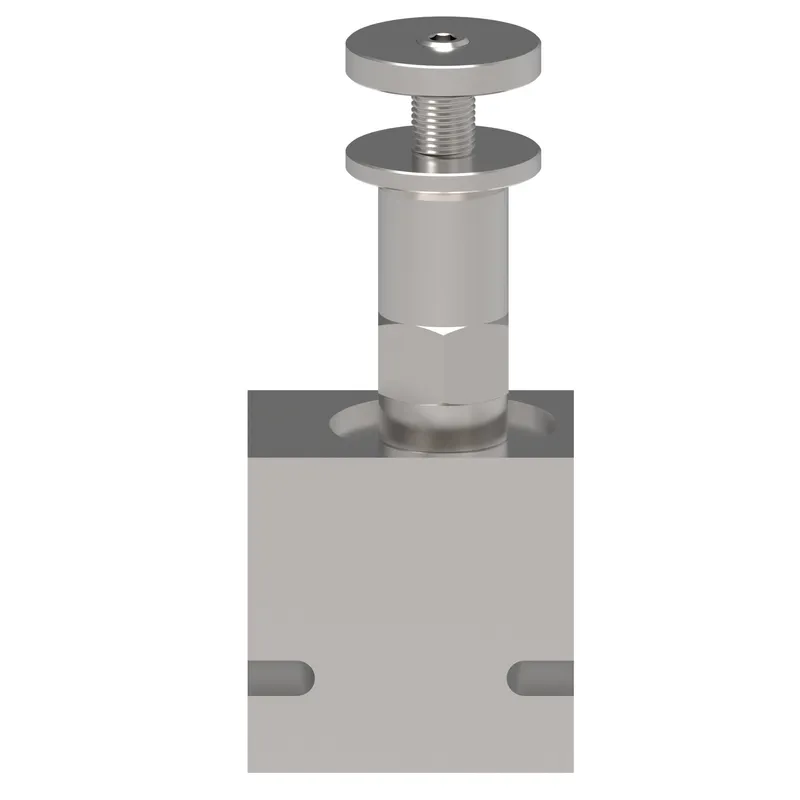

Danfoss FCV7-10-K-8H-NV, FCV7-10-K-8H-NV, manufacturer part number 02-172885. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Knob |
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Factory set flow rate LPM | 22.50 |
| Flow rate LPM | 45.00 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Needle Valve |
| Housing | Yes |
| Installation type | Screw-in Cartridge |
| Leakage | Standard |
| Maximum flow rate LPM | 45.00 |
| Model Code 1 | FCV7-10-K-8H-NV |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Port size | 1/2" |
| Port type | SAE |
| Pressure rating BAR | 210.00 |
| Product height in | 3.380 |
| Product height mm | 85.852 |
| Product length in | 2.000 |
| Product length mm | 50.800 |
| Product width in | 1.250 |
| Product width mm | 31.750 mm |
| Seal type | Buna-N |
| Special features | None |
| Spool seal | No |
| Style | Flow Restrictor |
