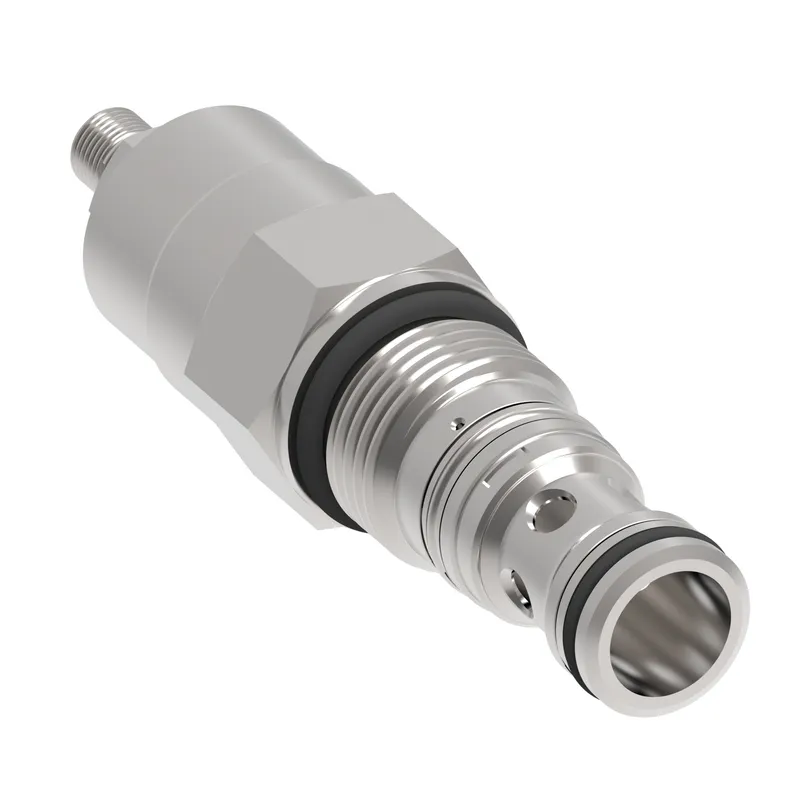

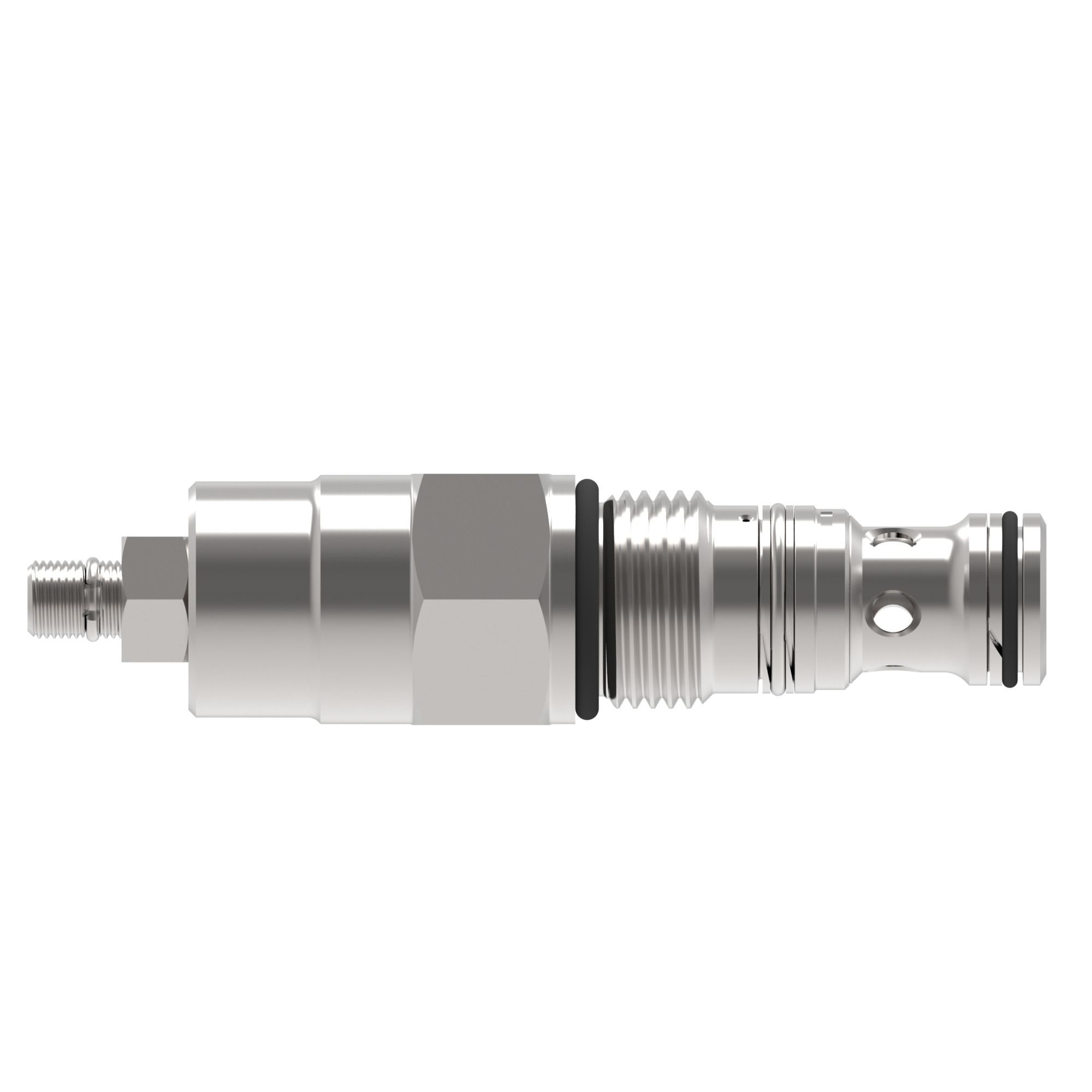

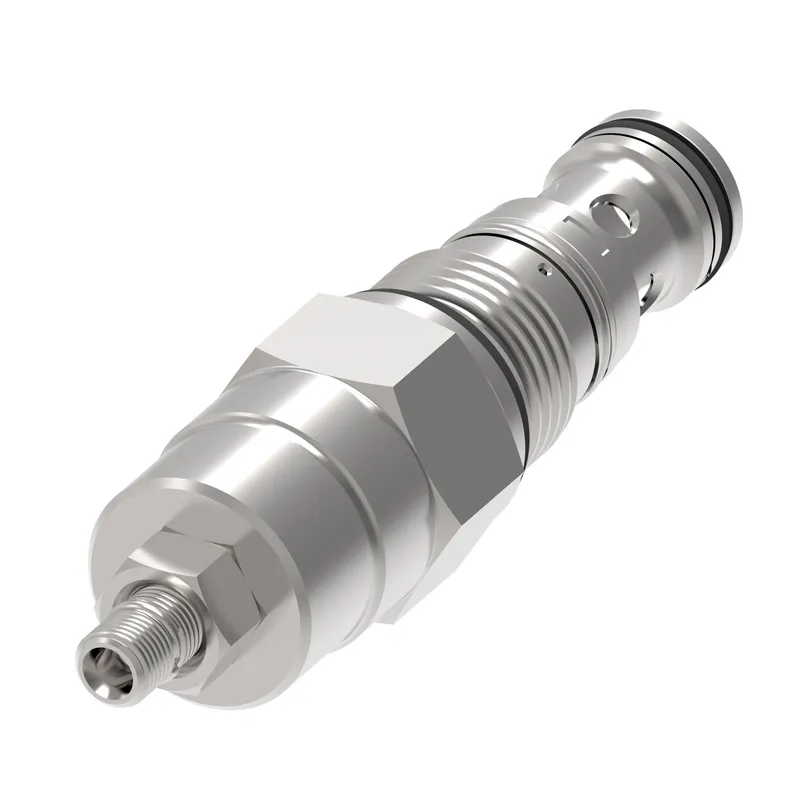

CBV1-12-S-0-B-30/25 COUNTBALANCE CART4-1, CBV1-12-S-0-B-30-25
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-172422 be shipped?
02-172422 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-172422 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-172422 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-172422, subject to availability and destination.
Danfoss CBV1-12-S-0-B-30/25 COUNTBALANCE CART4-1, CBV1-12-S-0-B-30-25, manufacturer part number 02-172422. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Screw |
| Brand | Vickers by Danfoss |
| Cavity | C-12-3S |
| Flow rate GPM | 30.00 |
| Flow rate LPM | 114.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Counterbalance Valve |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 5 dpm |
| Max pilot adjust p BAR | 37.000 |
| Max pilot adjust p PSI | 544.000 |
| Max relief press BAR | 350.000 |
| Max relief press PSI | 5000.000 |
| Min pilot adjust p BAR | 31.000 |
| Min pilot adjust p PSI | 445.000 |
| Model Code 1 | CBV1-12-S-0-B-30-25 |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot ratio | 4:1 |
| Port size | None |
| Port type | Cartridge Only |
| Pressure rating BAR | 350.000 |
| Pressure rating PSI | 5000.000 |
| Product height in | 1.250 |
| Product height mm | 31.750 |
| Product length in | 4.070 |
| Product length mm | 103.378 |
| Product width in | 1.250 |
| Product width mm | 31.750 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | Pilot assisted relief with check |
| Valve torque into cavity | 81-95 Nm |
