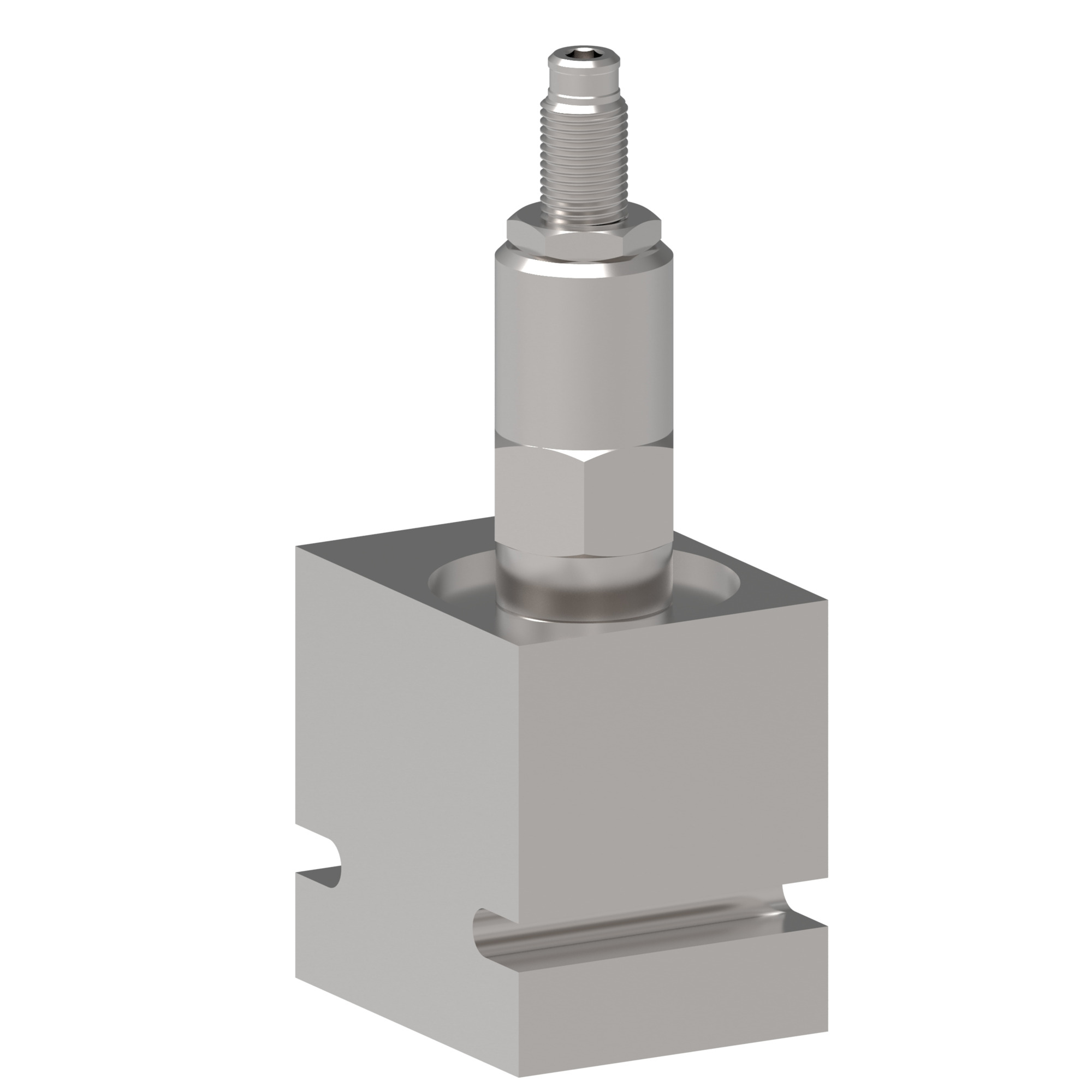

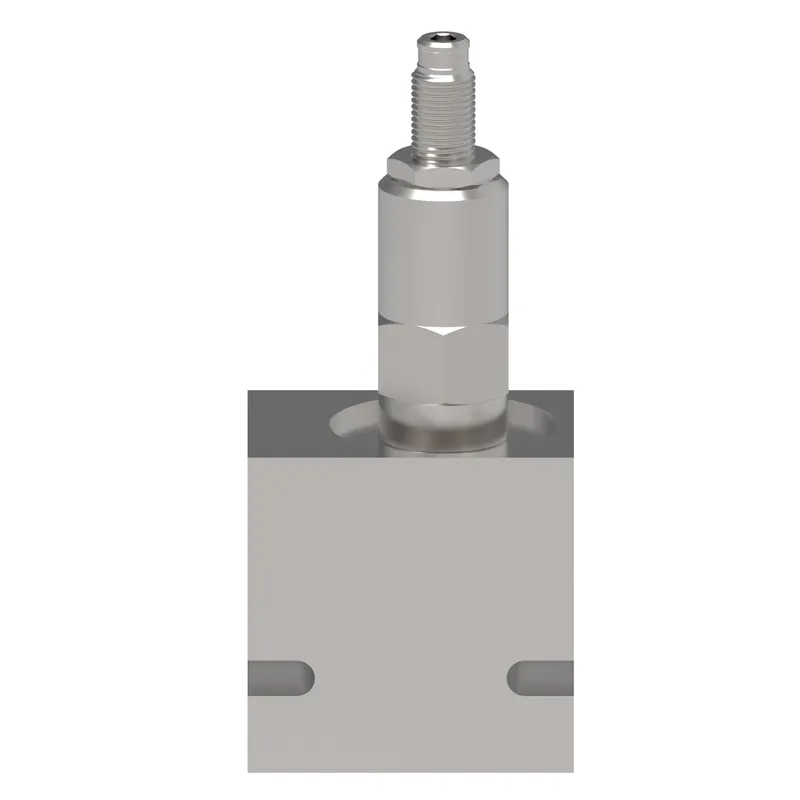

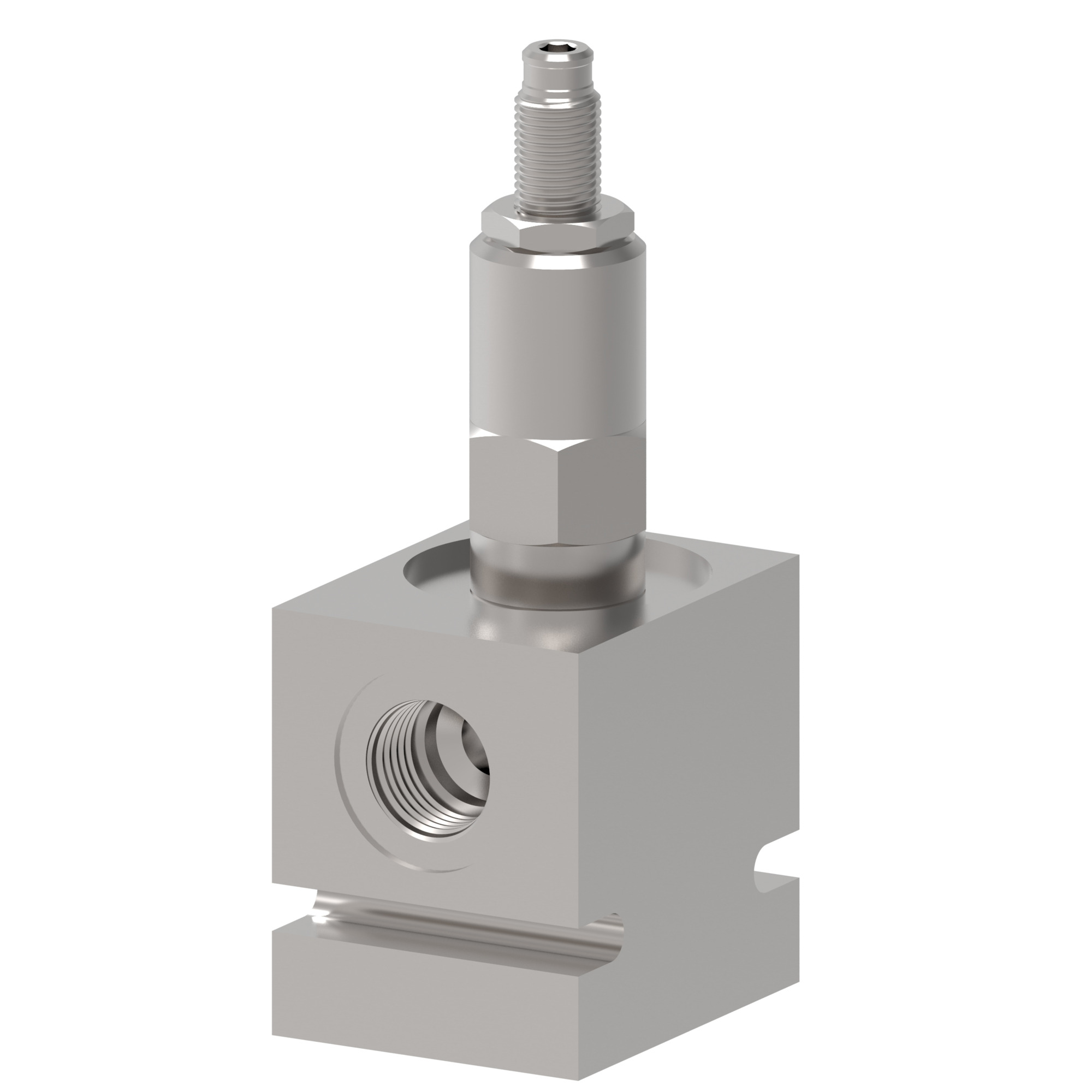

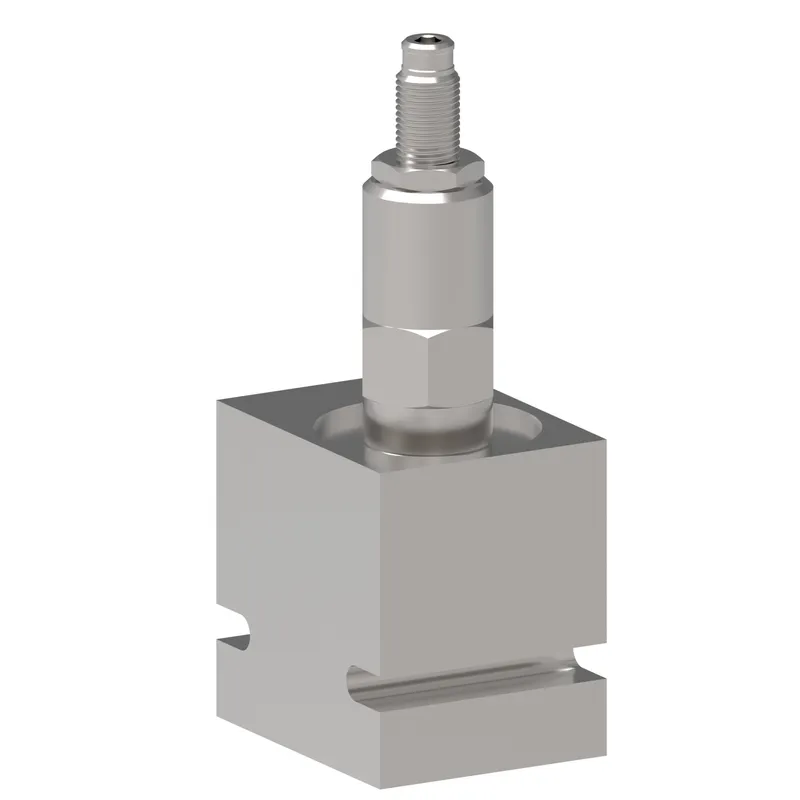

PRV2-10V-S-8T-35/16, PRV2-10-V-S-S-8T-35-16
MPN: 02-170168 · Brand: Danfoss (Drives)
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-170168 be shipped?
02-170168 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-170168 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-170168 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-170168, subject to availability and destination.
PRV2-10V-S-8T-35/16, PRV2-10-V-S-S-8T-35-16 - 02-170168
Specifications
Specifications
| Adjustment type | Screw |
| Brand | Vickers by Danfoss |
| Cavity | C-10-3 |
| Factory set pressrue BAR | 110.000 |
| Factory set pressrue PSI | 1604.000 |
| Flow rate GPM | 10.00 |
| Flow rate LPM | 38.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pressure Reducing/Relieving Valves |
| Housing | Yes |
| Housing material | Steel |
| Installation type | Screw-in Cartridge |
| Leakage | 820 cc/min |
| Max working pressure BAR | 240.000 |
| Max working pressure PSI | 3490.000 |
| Min working pressure BAR | 17.000 |
| Min working pressure PSI | 247.000 |
| Model Code 1 | PRV2-10-V-S-S-8T-35-16 |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Port size | 1/2" |
| Port type | SAE |
| Product height in | 6.300 |
| Product height mm | 160.020 |
| Product length in | 3.000 |
| Product length mm | 76.200 |
| Product width in | 1.760 |
| Product width mm | 44.704 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Viton |
| Special features | None |
| Style | Spool |
