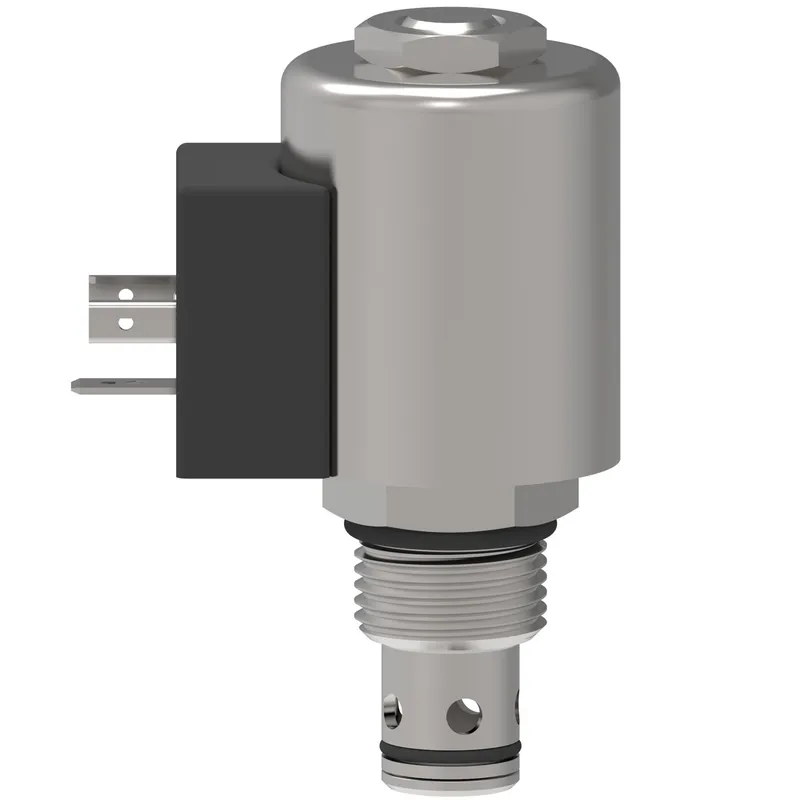

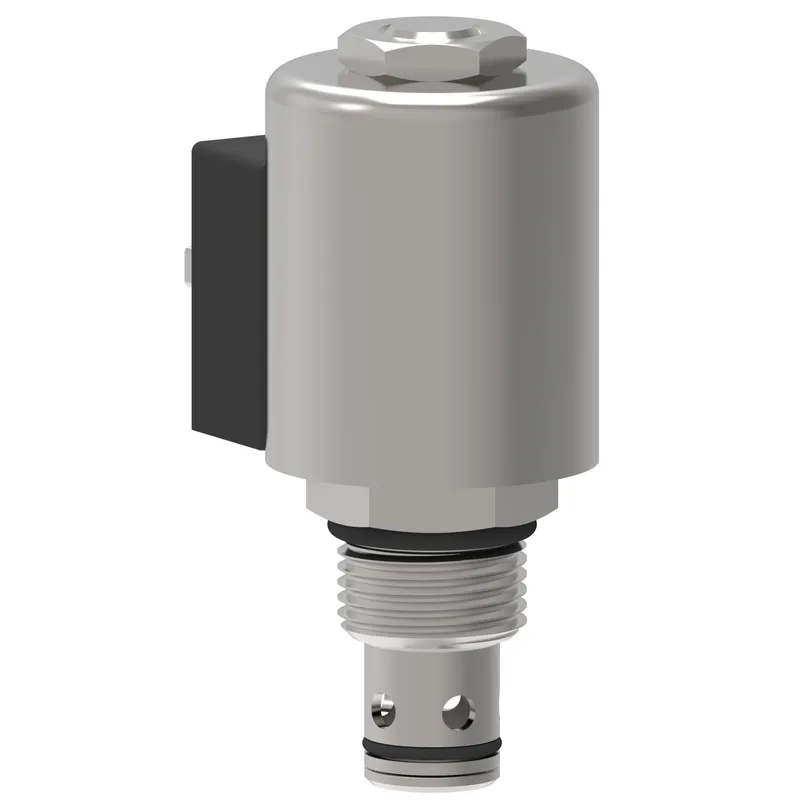

SV4-10V-C-0-115AG, SV4-10V-C-0-115AG
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-167816 be shipped?
02-167816 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-167816 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-167816 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-167816, subject to availability and destination.
Danfoss SV4-10V-C-0-115AG, SV4-10V-C-0-115AG, manufacturer part number 02-167816. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Coil termination | DIN 43650 |
| Diode | No |
| Flow rate LPM | 23.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Solenoid Valve |
| Housing | No |
| Housing material | Aluminum |
| Installation type | Screw-in Cartridge |
| Leakage | 82 cm3/min |
| Model Code 1 | SV4-10V-C-0-115AG |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Electrically operated |
| Override type | None |
| Port type | Cartridge Only |
| Pressure rating BAR | 210.00 |
| Product height in | 1.930 |
| Product height mm | 49.022 |
| Product length in | 3.500 |
| Product length mm | 88.900 |
| Product width in | 1.530 |
| Product width mm | 38.862 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Viton |
| Special features | None |
| Style | 2-Way 2-Position NC |
| Voltage | 115 V |
| Voltage type | AC |
