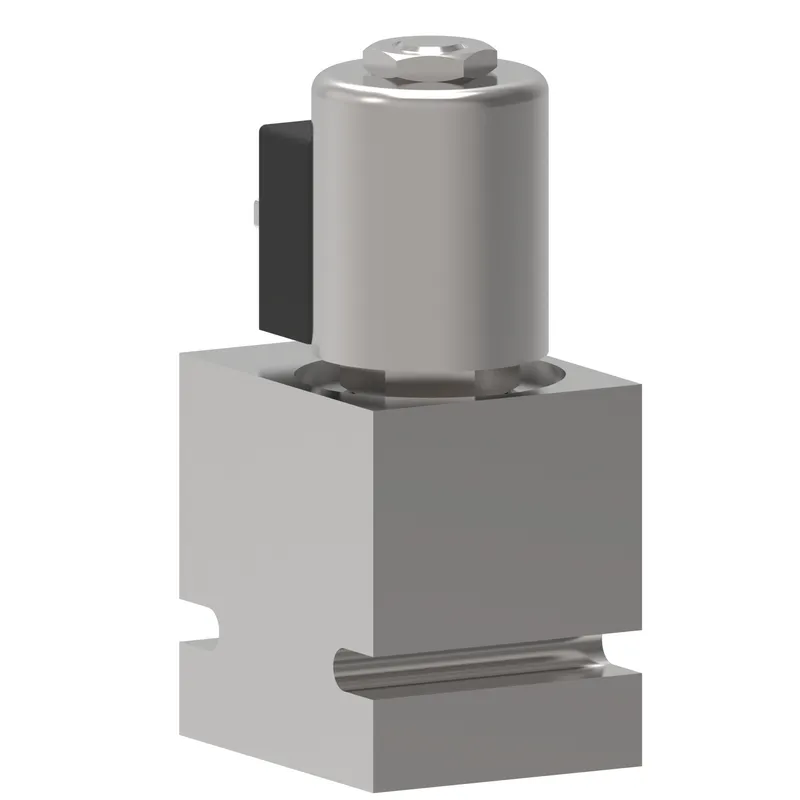

SV3-10-0-6T-115AG, SV3-10-O-6T-115A-G
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-167335 be shipped?
02-167335 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-167335 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-167335 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-167335, subject to availability and destination.
Danfoss SV3-10-0-6T-115AG, SV3-10-O-6T-115A-G, manufacturer part number 02-167335. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-10-2 |
| Coil series | J Series |
| Coil termination | DIN 43650 |
| Diode | No |
| Flow rate GPM | 12.00 |
| Flow rate LPM | 45.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Solenoid Valve |
| Housing | Yes |
| Housing material | Aluminum |
| Installation type | Screw-in Cartridge |
| Leakage | 5 drops/min, max @ 350 bar |
| Model Code 1 | SV3-10-O-6T-115A-G |
| Number of housing ports | 2 |
| Number of valve ports | 2 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Electrically operated |
| Override type | None |
| Port size | 3/8" |
| Port type | SAE |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3000.00 |
| Product height in | 5.270 |
| Product height mm | 133.858 |
| Product length in | 2.500 |
| Product length mm | 63.500 |
| Product width in | 2.000 |
| Product width mm | 50.800 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Style | 2-Way, 2-Position, Poppet, NO |
| Torque into aluminium cavity | 47-54 Nm |
| Voltage | 115 V |
| Voltage type | AC |
