PFR1-10-F-0-/4.00_02-165713, PFR1-10-F-0-4.0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-165713 be shipped?
02-165713 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-165713 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-165713 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-165713, subject to availability and destination.

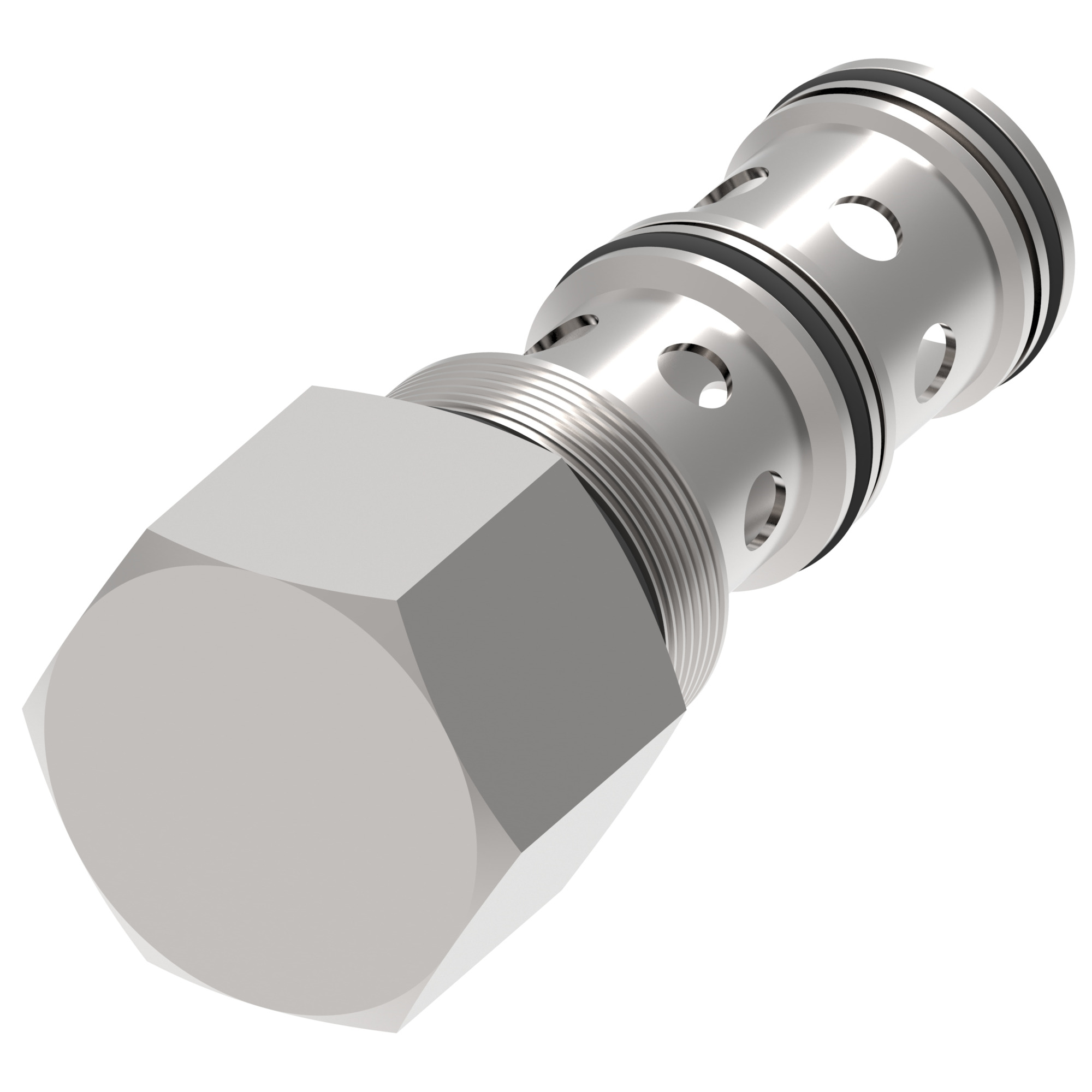

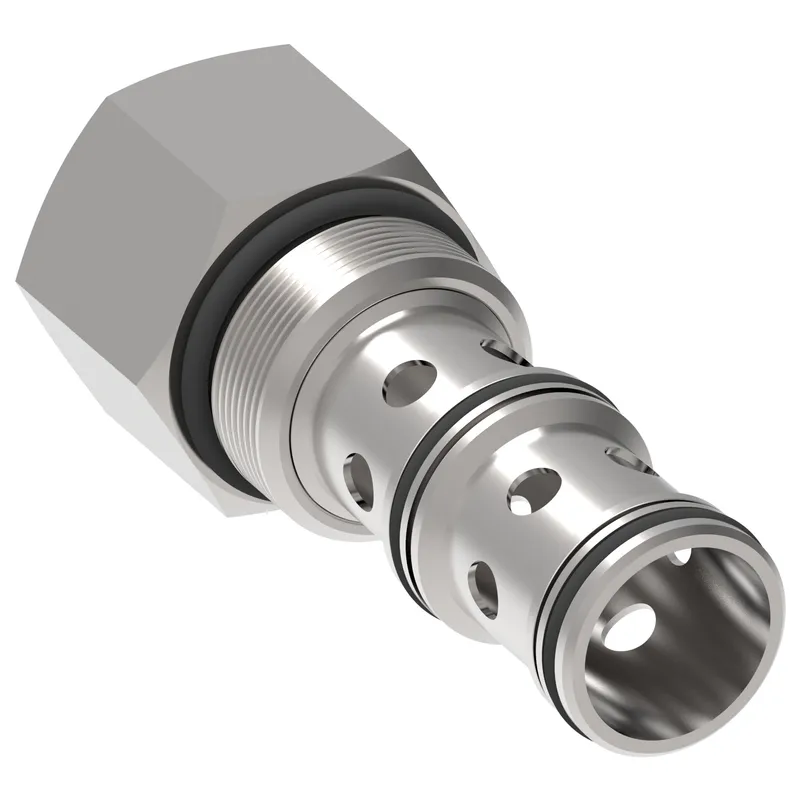

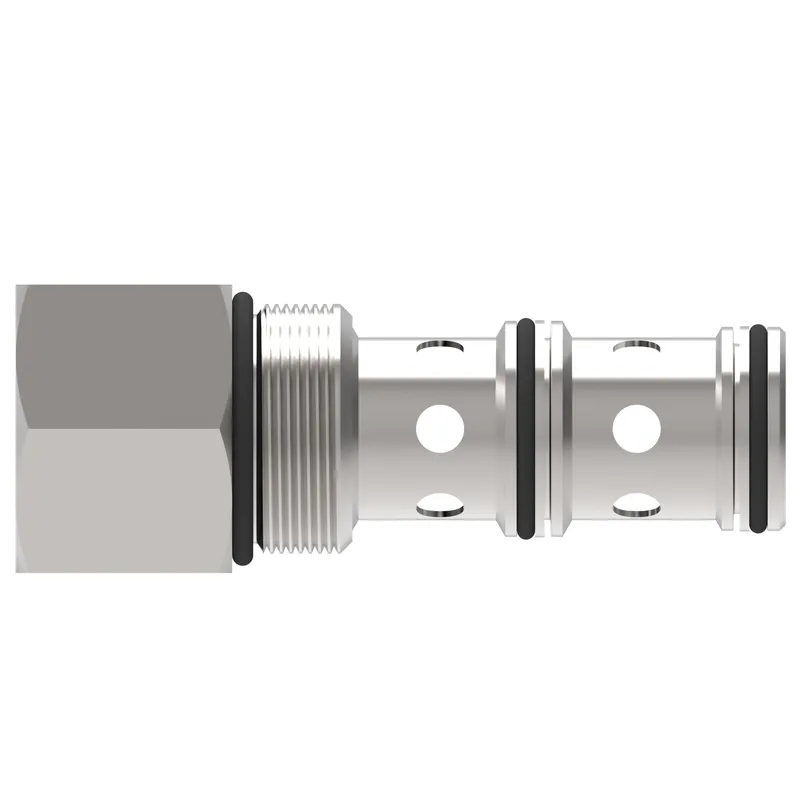

Danfoss PFR1-10-F-0-/4.00_02-165713, PFR1-10-F-0-4.0, manufacturer part number 02-165713. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Adjustment type | Fixed Orifice |
| Brand | Vickers by Danfoss |
| Cavity | C-10-3 |
| Factory set flow rate GPM | 4.000 |
| Factory set flow rate LPM | 15.00 |
| Flow rate GPM | 15.000 |
| Flow rate LPM | 57.00 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Priority Flow Regulator Fixed type |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Maximum flow rate LPM | 23.00 |
| Minimum flow rate GPM | 2.000 |
| Minimum flow rate LPM | 6.00 |
| Model Code 1 | PFR1-10-F-0-4.0 |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Port type | Cartridge Only |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3000.00 |
| Product height in | 1.000 |
| Product height mm | 25.400 |
| Product length in | 2.560 |
| Product length mm | 65.024 |
| Product width in | 1.000 |
| Product width mm | 25.400 mm |
| Rec filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Spool seal | No |
| Style | Spool |
| Torque alu cavity | 47-54 Nm |
| Torque steel cavity | 68-75 Nm |
