PTS1-20V-0-40, PTS1-20-V-0-40
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-163638 be shipped?
02-163638 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-163638 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-163638 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-163638, subject to availability and destination.

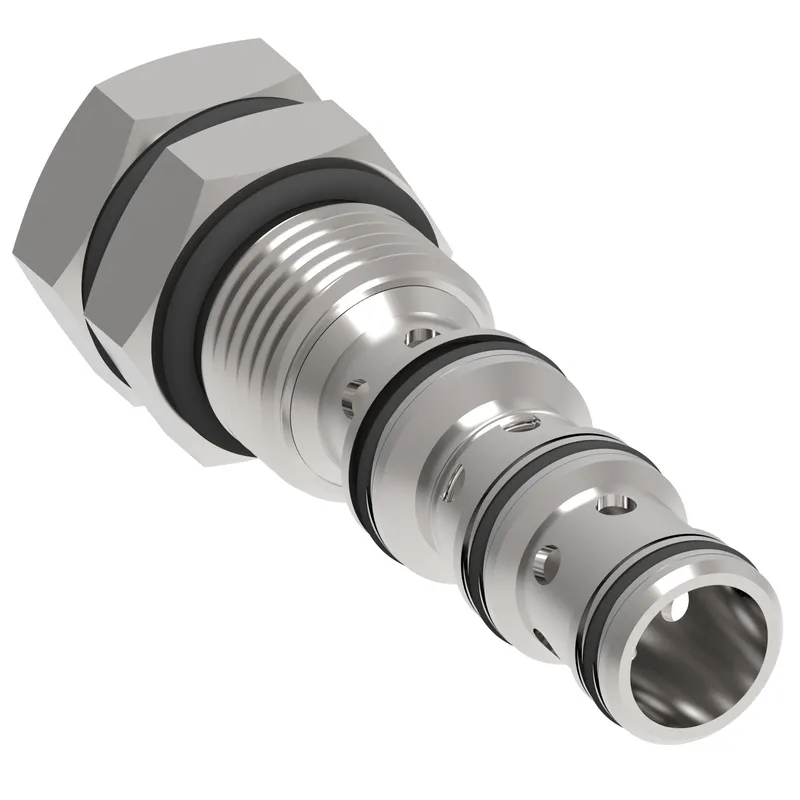

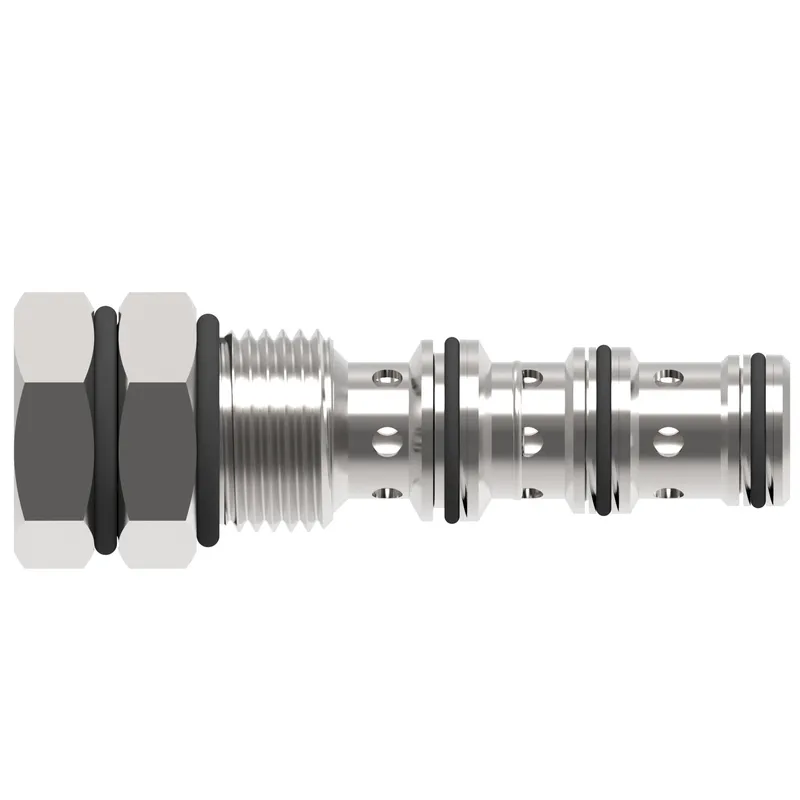

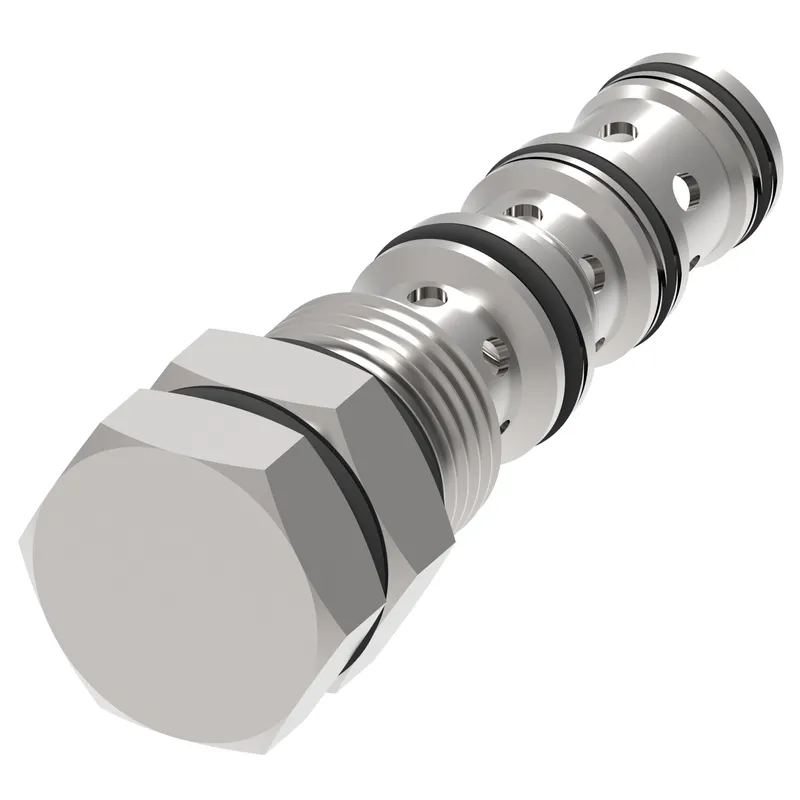

Danfoss PTS1-20V-0-40, PTS1-20-V-0-40, manufacturer part number 02-163638. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation option | None |
| Adjustment type | None |
| Brand | Vickers by Danfoss |
| Cavity | C-20-4 |
| Detent option | No |
| Flow rate GPM | 70.00 |
| Flow rate LPM | 265.000 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Pilot to shift valve |
| Housing | No |
| Housing material | None |
| Installation type | Screw-in Cartridge |
| Leakage | 164 cc/min |
| Model Code 1 | PTS1-20-V-0-40 |
| Number of housing ports | 4 |
| Number of valve ports | 4 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Pilot operated |
| Pilot pressure setting BAR | 3.00 |
| Port size | None |
| Port type | Cartridge Only |
| Pressure rating BAR | 210.00 |
| Pressure rating PSI | 3000.00 |
| Product height in | 1.870 |
| Product height mm | 47.498 |
| Product length in | 7.120 |
| Product length mm | 180.848 |
| Product width in | 1.870 |
| Product width mm | 47.498 mm |
| Recommended filtration level | 18/16/13 |
| Seal type | Viton |
| Style | 4-Way 2-Position |
| Torque into aluminium cavity | 128-155 Nm |
| Torque into steel cavity | 163-183 Nm |
