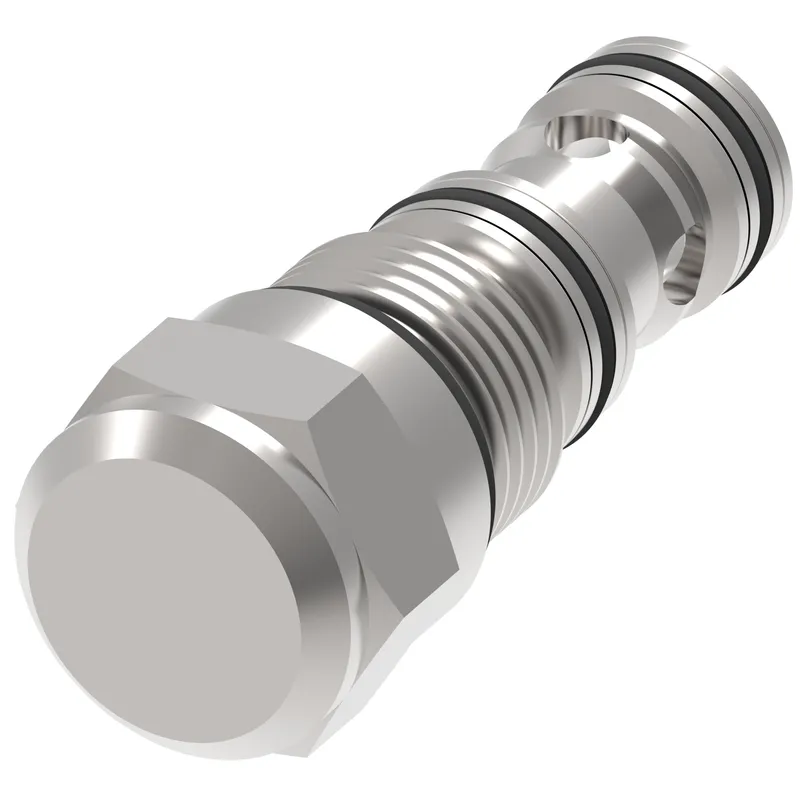

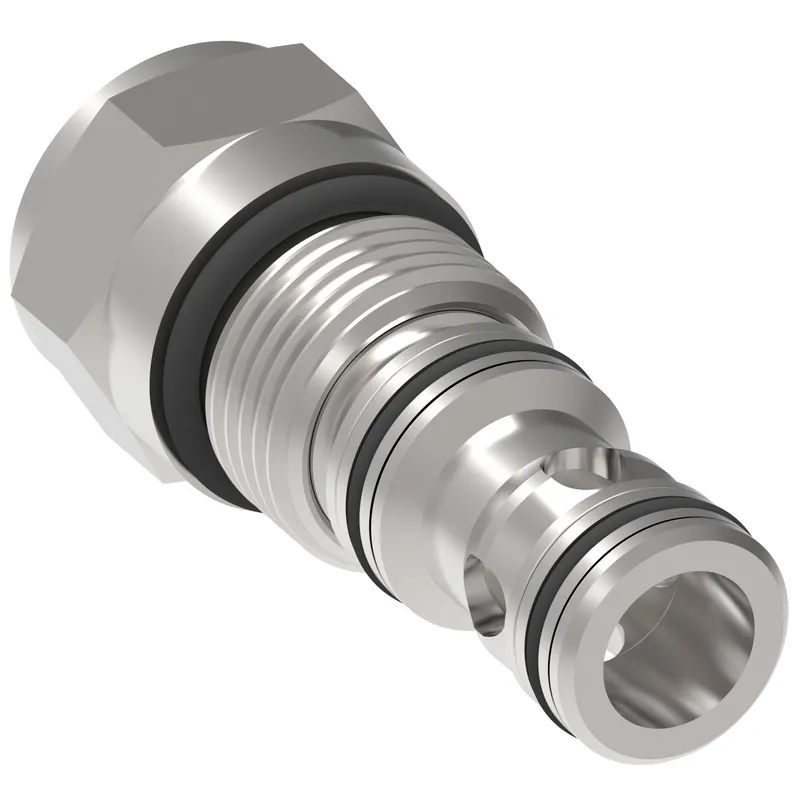

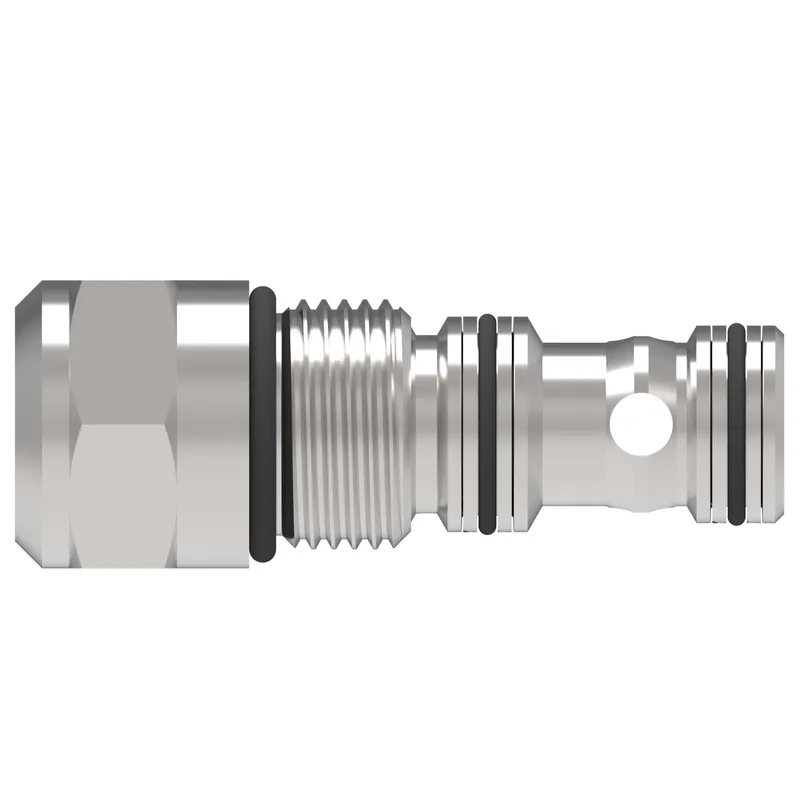

DPS2-16V-V-F-0-20 DIFF PRESS SENSINGCART, DPS2-16-V-V-F-0-020

Name: DPS2-16V-V-F-0-20 DIFF PRESS SENSINGCART, DPS2-16-V-V-F-0-020
Brand: Danfoss (Drives)
SKU: 02-161595

MPN: 02-161595 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cartridge valves
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-161595 be shipped?

02-161595 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-161595 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-161595 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-161595, subject to availability and destination.

Danfoss DPS2-16V-V-F-0-20 DIFF PRESS SENSINGCART, DPS2-16-V-V-F-0-020, manufacturer part number 02-161595. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-16-3S
Flow rate GPM	50.000
Flow rate LPM	189.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Differential Pressure Sensing
Housing	No
Installation type	Screw-in Cartridge
Leakage	246 cc/min
Model Code 1	DPS2-16-V-V-F-0-020
Normal function	Spool, Normally closed
Number housing ports	3
Number of valve port	3
Operating temp	-40 C to 120 C (-40 to 248 F)
Pilot ratio	1:1
Port type	Cartridge Only
Pressure differential BAR	1.37
Pressure differential PSI	20.00
Pressure rating BAR	290.00
Pressure rating PSI	4200.00
Product height in	1.500
Product height mm	38.100
Product length in	3.450
Product length mm	87.630
Product width in	1.500
Product width mm	38.100 mm
Rec filtration level	18/16/13
Seal type	Viton
Special features	None
Spring	20 psi
Stroke adjustment	Fixed stroke
Style	Spool
