Home / Danfoss (Drives) / DPS2-20V-P-F-0-80 DIFF PRESS SENSINGCART, DPS2-20-V-P-F-0-080

Available on request

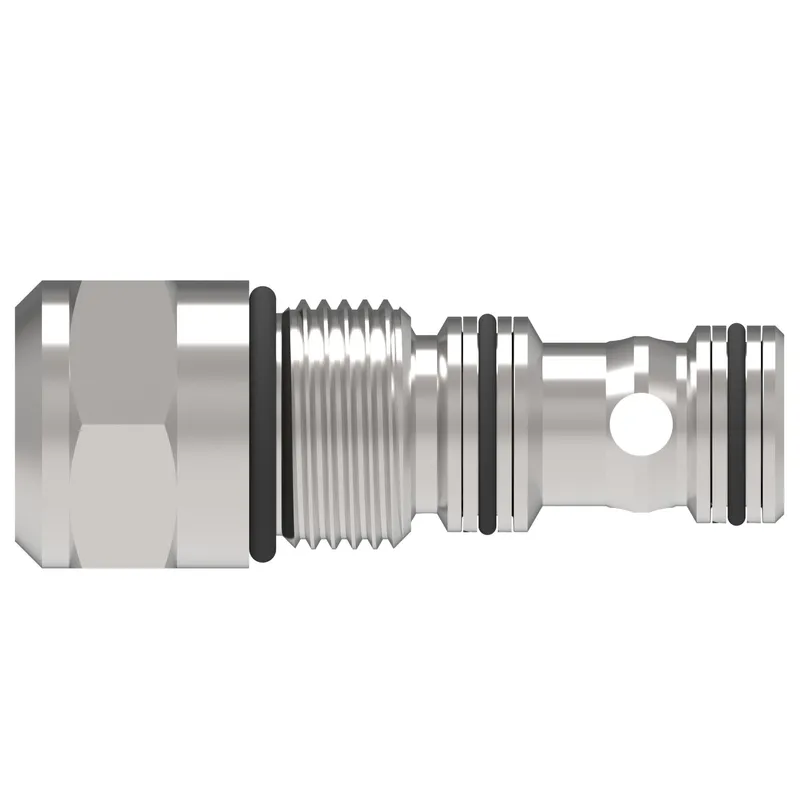

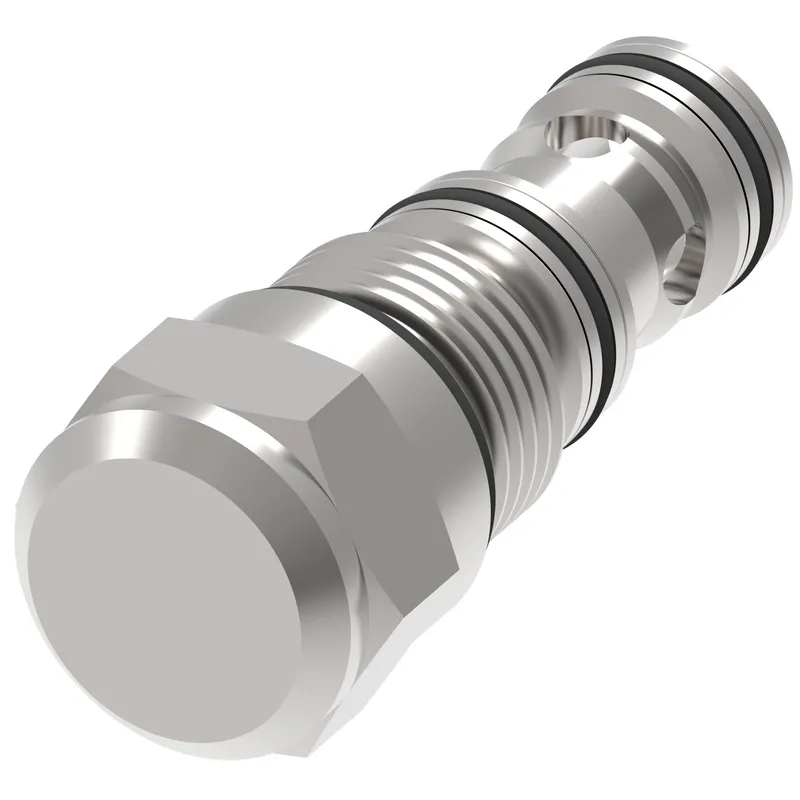

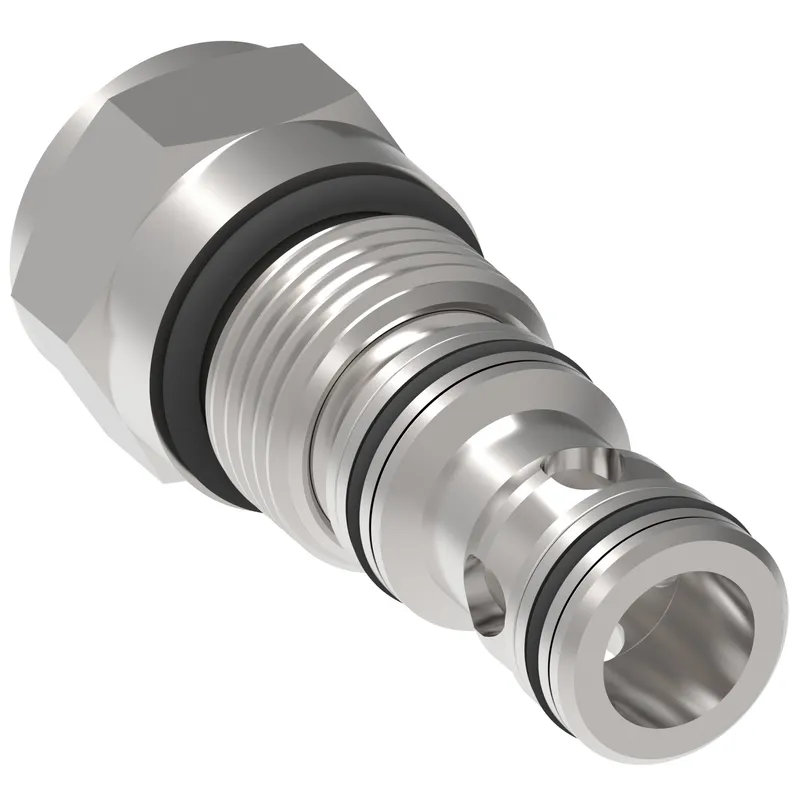

DPS2-20V-P-F-0-80 DIFF PRESS SENSINGCART, DPS2-20-V-P-F-0-080

Name: DPS2-20V-P-F-0-80 DIFF PRESS SENSINGCART, DPS2-20-V-P-F-0-080
Brand: Danfoss (Drives)
SKU: 02-161423

MPN: 02-161423 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cartridge valves
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-161423 be shipped?

02-161423 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-161423 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-161423 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-161423, subject to availability and destination.

Danfoss DPS2-20V-P-F-0-80 DIFF PRESS SENSINGCART, DPS2-20-V-P-F-0-080, manufacturer part number 02-161423. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-20-3S
Flow rate GPM	80.000
Flow rate LPM	303.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Differential Pressure Sensing
Housing	No
Installation type	Screw-in Cartridge
Leakage	82 cc/min
Model Code 1	DPS2-20-V-P-F-0-080
Normal function	Spool, Normally Closed, LS
Number housing ports	3
Number of valve port	3
Operating temp	-40 C to 120 C (-40 to 248 F)
Pilot ratio	1:1
Port type	Cartridge Only
Pressure differential BAR	5.50
Pressure differential PSI	80.00
Pressure rating BAR	290.00
Pressure rating PSI	4200.00
Product height in	1.870
Product height mm	47.498
Product length in	4.340
Product length mm	110.236
Product width in	1.870
Product width mm	47.498 mm
Rec filtration level	18/16/13
Seal type	Viton
Special features	None
Spring	80 psi
Stroke adjustment	Fixed stroke
Style	Spool
