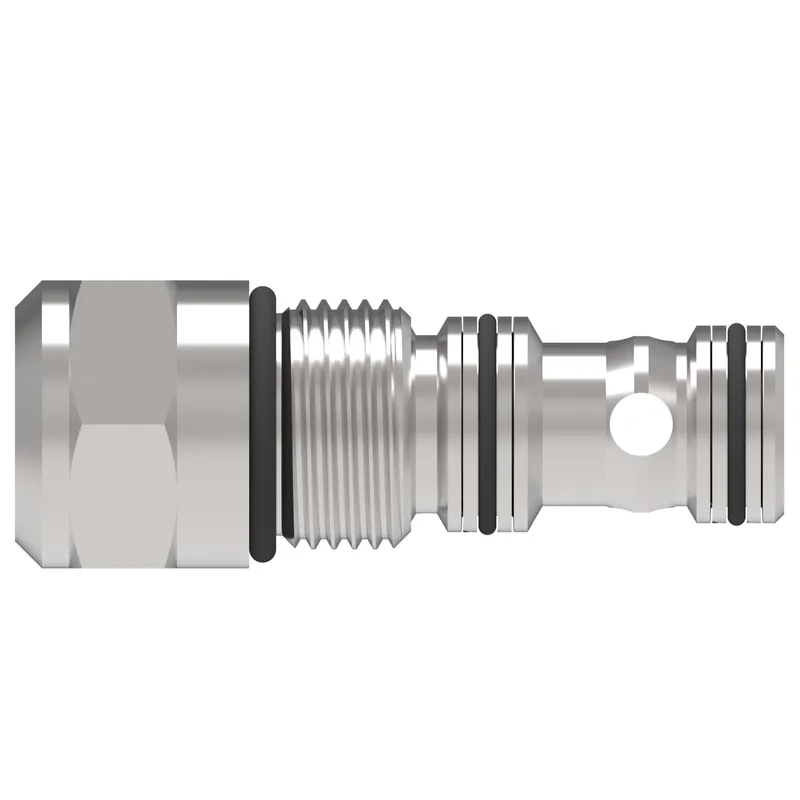

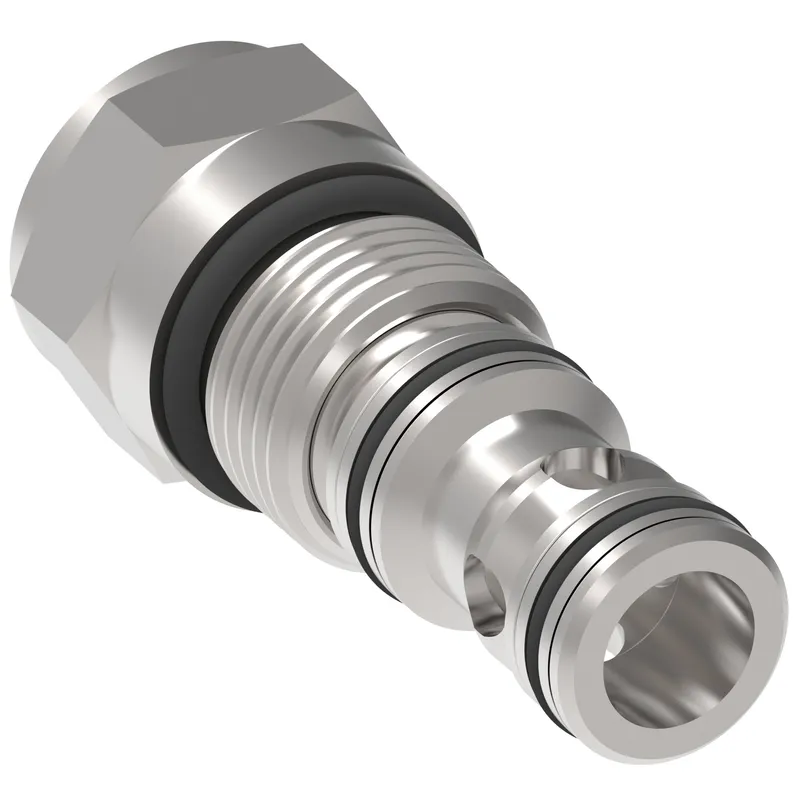

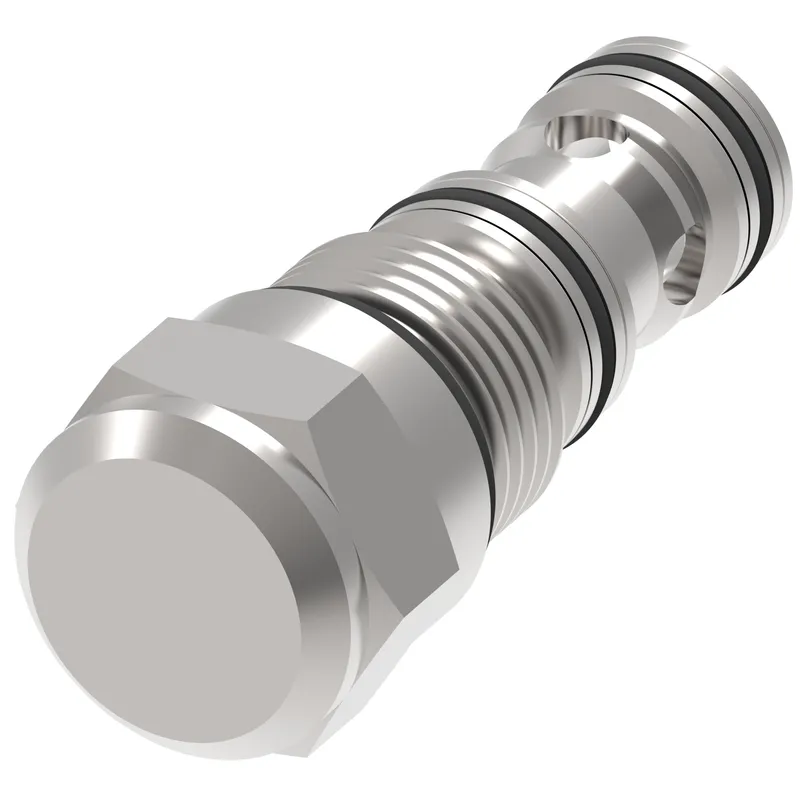

DPS1-16-P-0-160 DIFF PRESS SENSING CART, DPS1-16-P-0-160
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cartridge valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-161223 be shipped?
02-161223 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-161223 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-161223 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-161223, subject to availability and destination.
Danfoss DPS1-16-P-0-160 DIFF PRESS SENSING CART, DPS1-16-P-0-160, manufacturer part number 02-161223. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Vickers by Danfoss |
| Cavity | C-16-3 |
| Flow rate GPM | 50.000 |
| Flow rate LPM | 189.00 |
| Fluid compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Differential Pressure Sensing |
| Housing | No |
| Installation type | Screw-in Cartridge |
| Leakage | 246 cc/min |
| Model Code 1 | DPS1-16-P-0-160 |
| Normal function | Spool, Normally Closed (L/S element) |
| Number housing ports | 3 |
| Number of valve port | 3 |
| Operating temp | -40 C to 120 C (-40 to 248 F) |
| Pilot ratio | 1:1 |
| Port type | Cartridge Only |
| Pressure differential BAR | 11.00 |
| Pressure differential PSI | 160.00 |
| Pressure rating BAR | 290.00 |
| Pressure rating PSI | 4200.00 |
| Product height in | 1.500 |
| Product height mm | 38.100 |
| Product length in | 2.680 |
| Product length mm | 68.072 |
| Product width in | 1.500 |
| Product width mm | 38.100 mm |
| Rec filtration level | 18/16/13 |
| Seal type | Buna-N |
| Special features | None |
| Spring | 160 psi |
| Stroke adjustment | Fixed stroke |
| Style | Spool |
