V10 1J2J 0C20 024L, V10 1J2J 0C20 024L
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-159700-7 be shipped?
02-159700-7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-159700-7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-159700-7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-159700-7, subject to availability and destination.

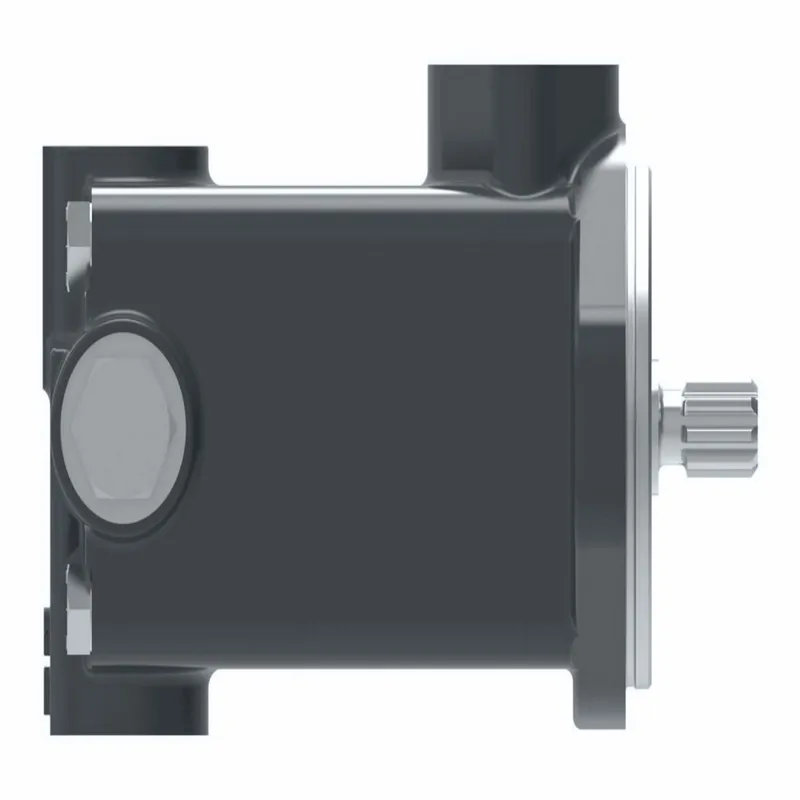

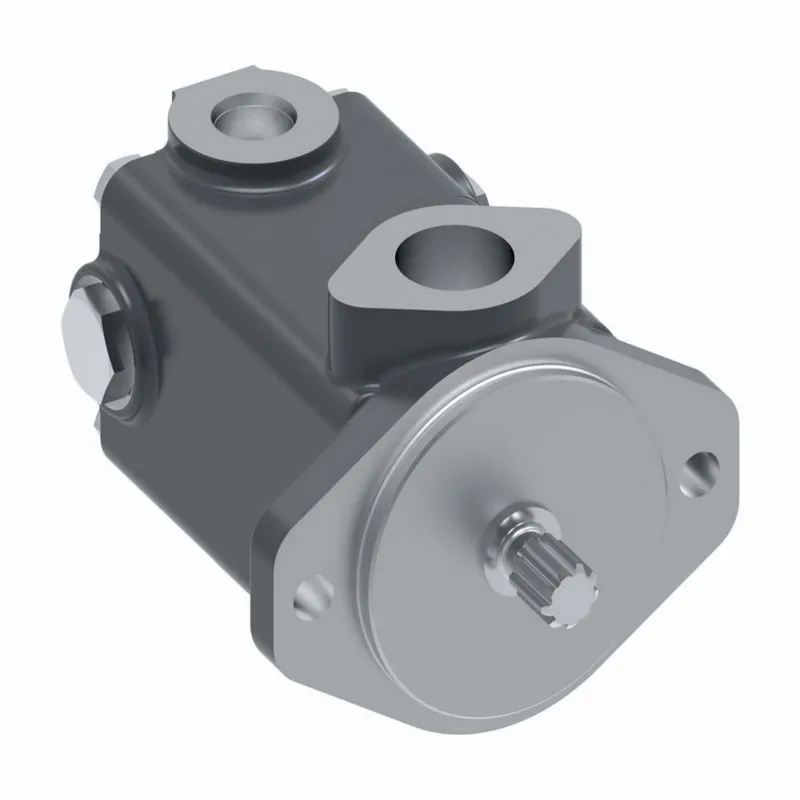

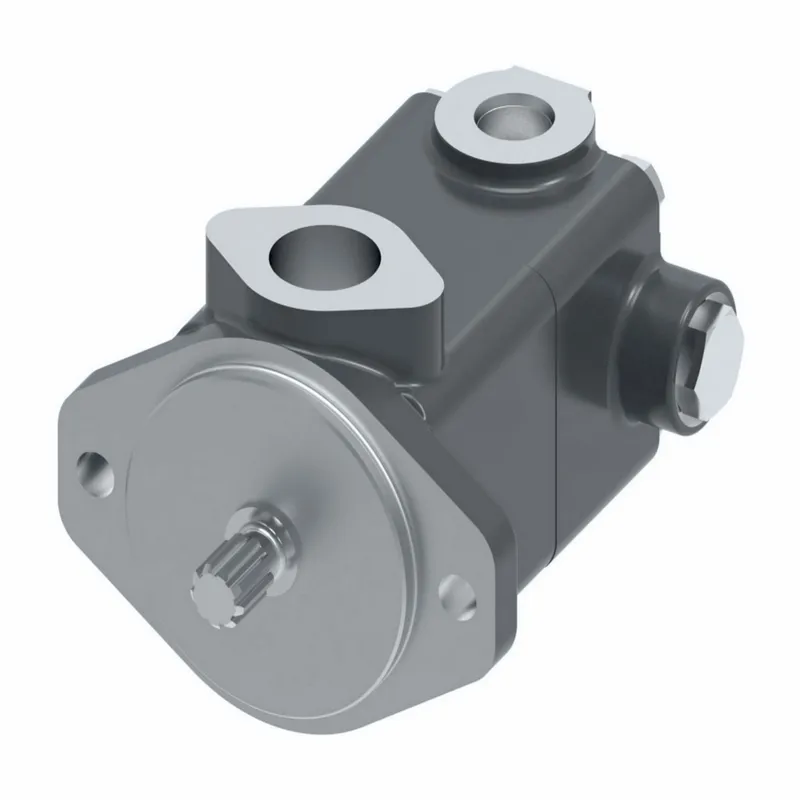

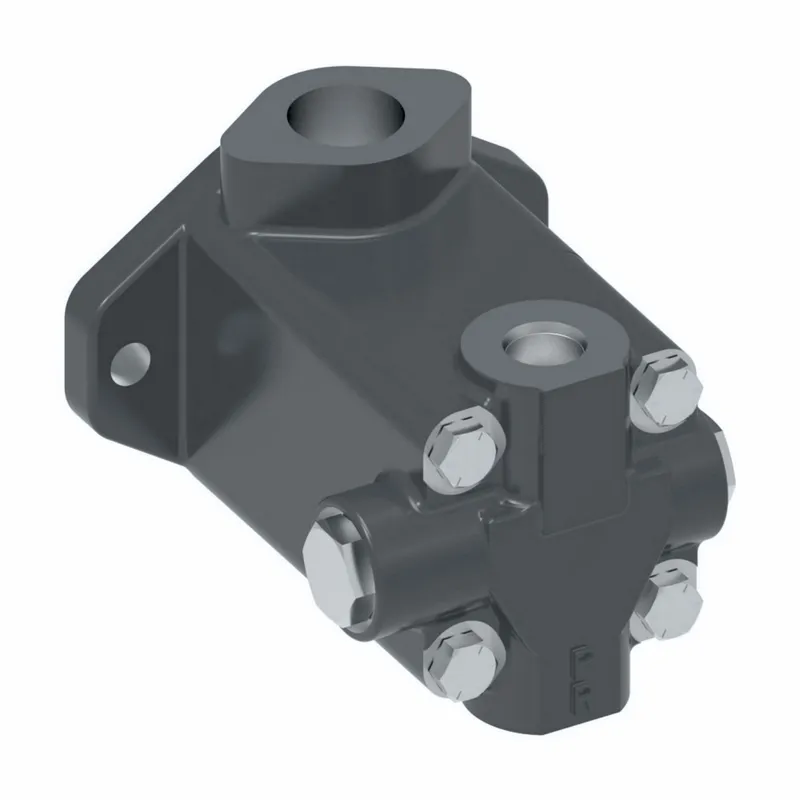

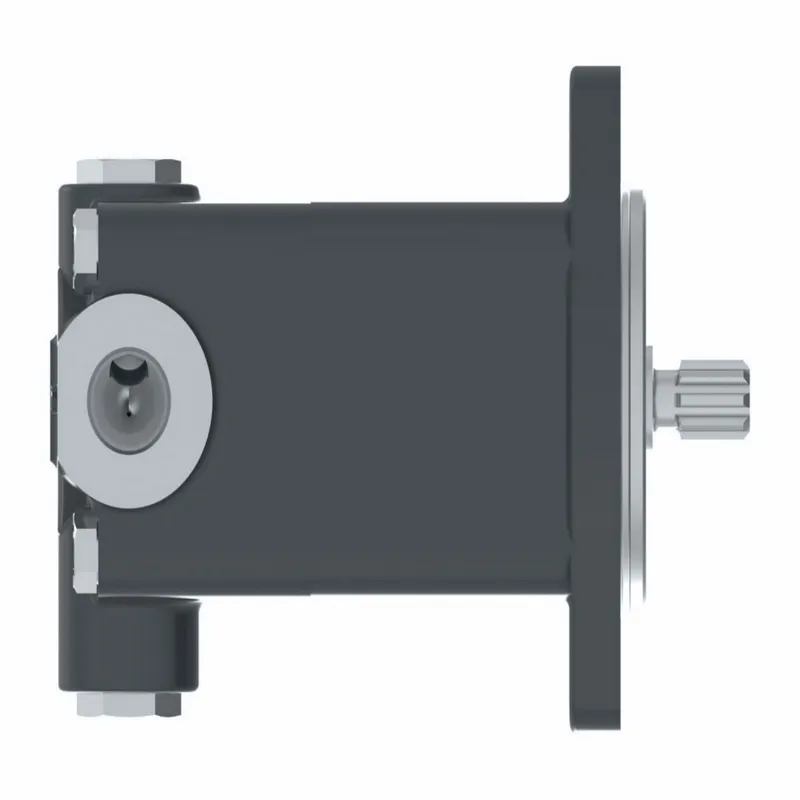

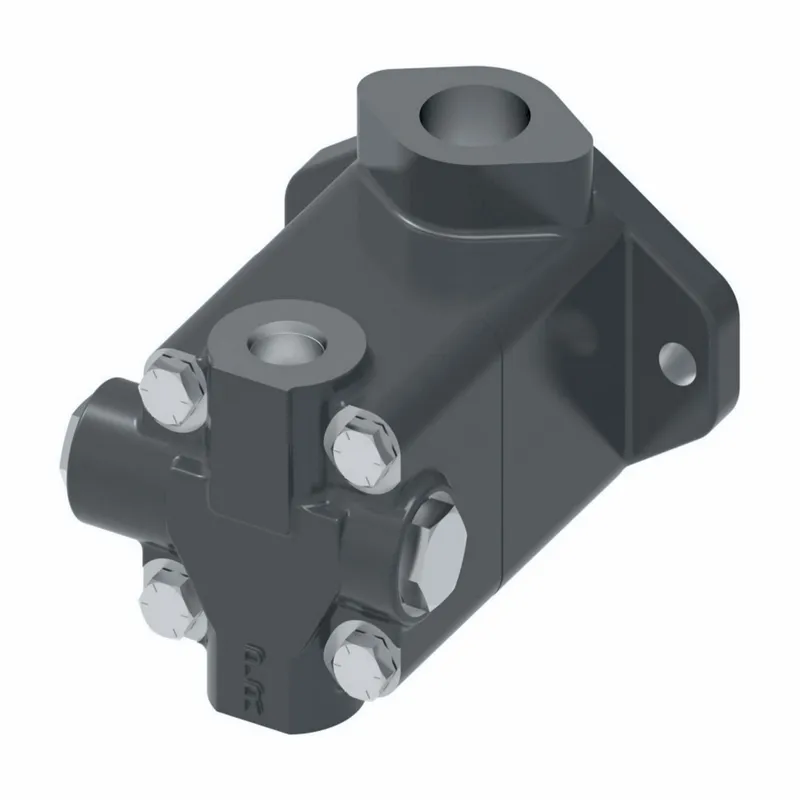

Danfoss V10 1J2J 0C20 024L, V10 1J2J 0C20 024L, manufacturer part number 02-159700-7. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| PUMP TYPE | VANE PUMP |
| Series | SERIES DESIGNATION |
| Mounting type | 2 BOLT FLANGE SAE-A SIZE |
| INLET PORT TYPE | JIS B2351 THREAD |
| RING CAPACITY | 2 GPM |
| OUTLET PORT TYPE | JIS PF 1/2 THREAD |
| Shaft type | TANG LIMITED TORQUE( 524 ) |
| OUTLET COVER PORT ORIENTATION | INLINE WITH INLET PORT |
| DESIGN CODE | DESIGN CODE FOR NF,S,F COVER |
| Shaft rotation | LH CCW ROTATION VIEWED FROM SHAFT END |
| SPECIAL FEATURE SUFFIX | TANG SHAFT WITH LIMITED CAPABILITY. MAX TORQUE SHAFT WILL WITHSTAND IS 2000 PSI(3 GPM ROTATING GROUP) |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | V10 Single Pump |
| Model Code 1 | V10 1J2J 0C20 024L |
