45VQTCS50A 2203CC20R, 45VQTCS50A 2203CC20R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-125649-3 be shipped?
02-125649-3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-125649-3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-125649-3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-125649-3, subject to availability and destination.

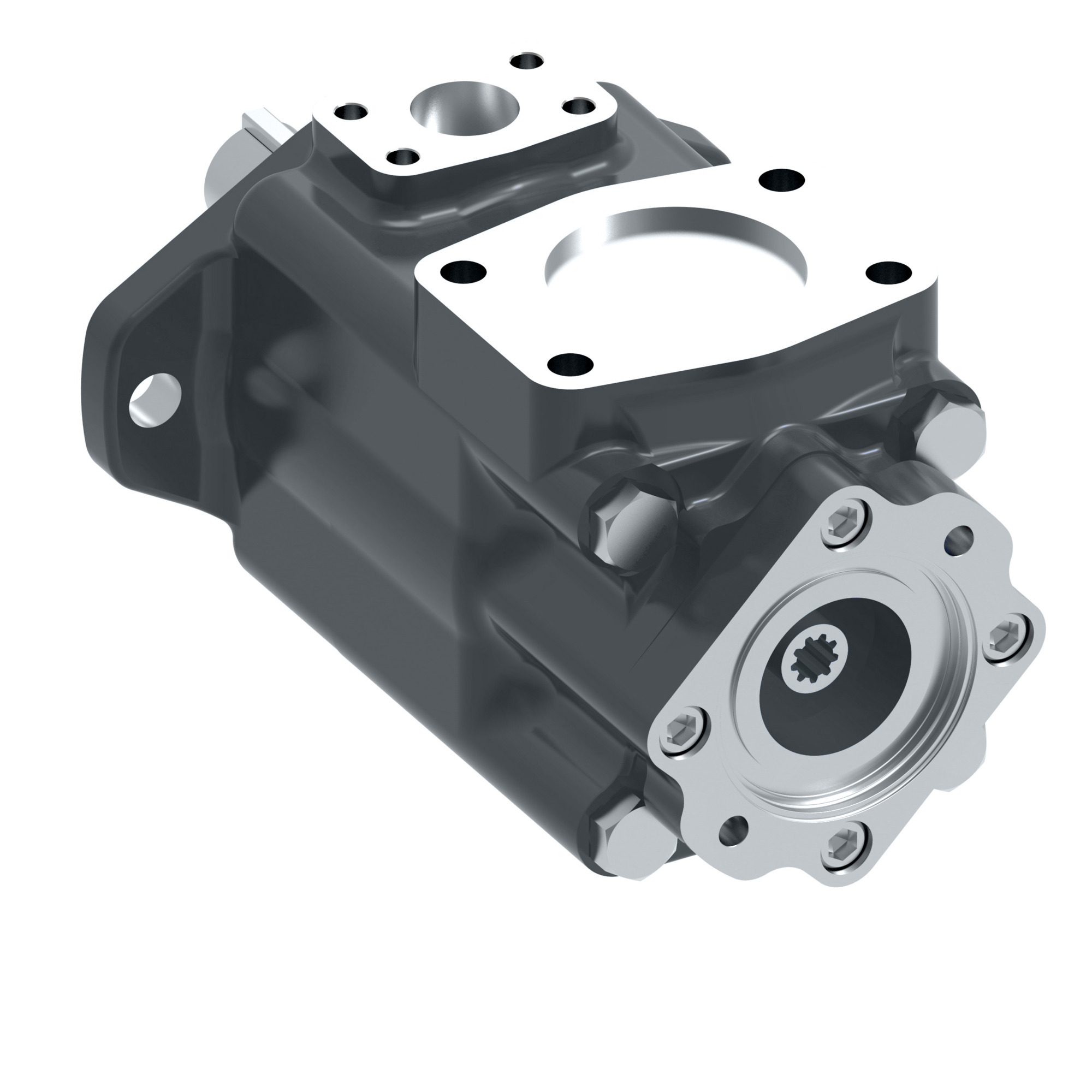

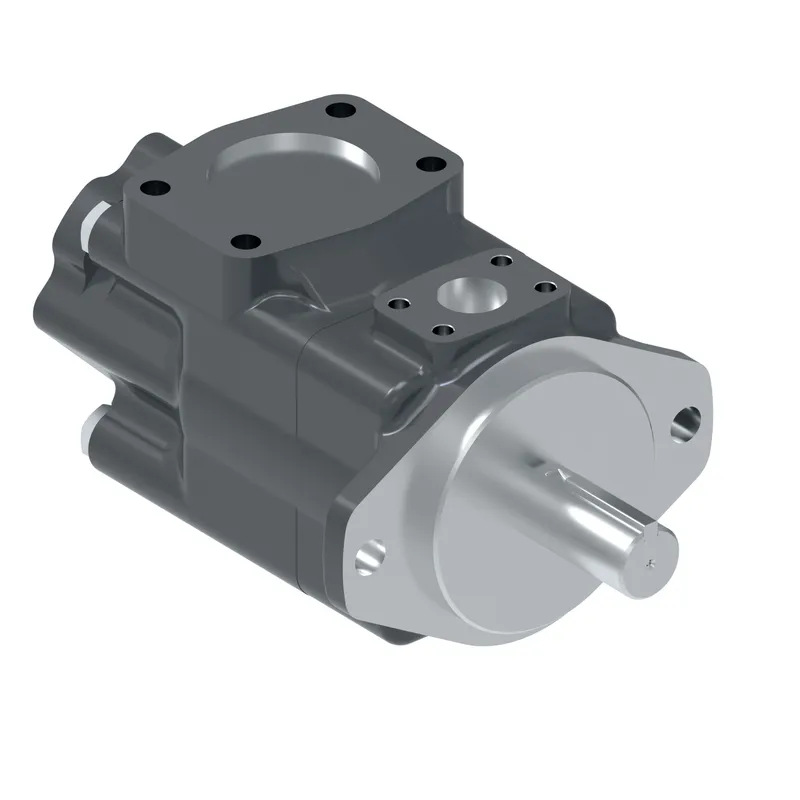

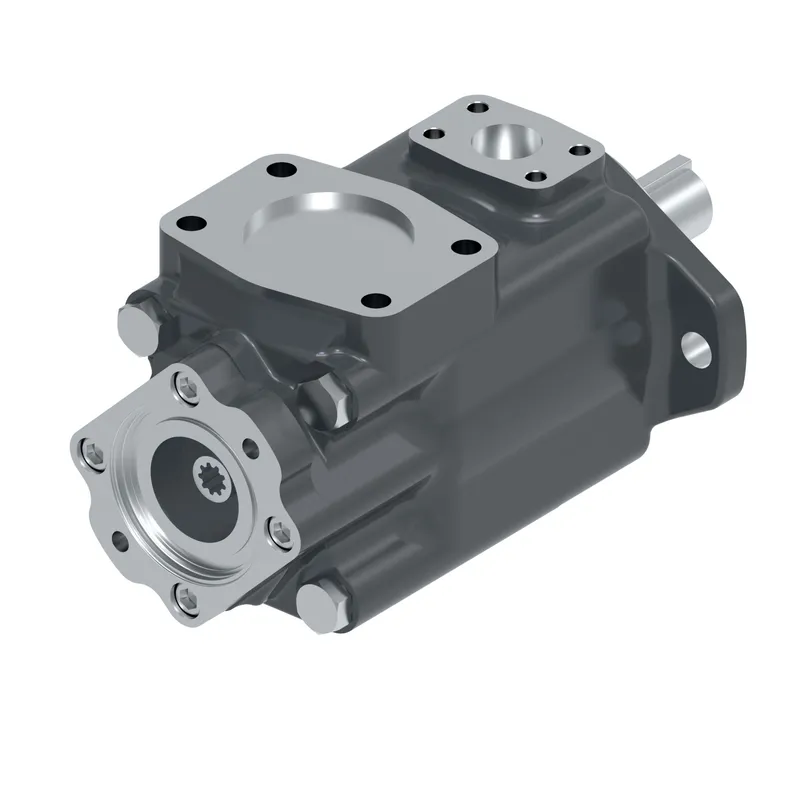

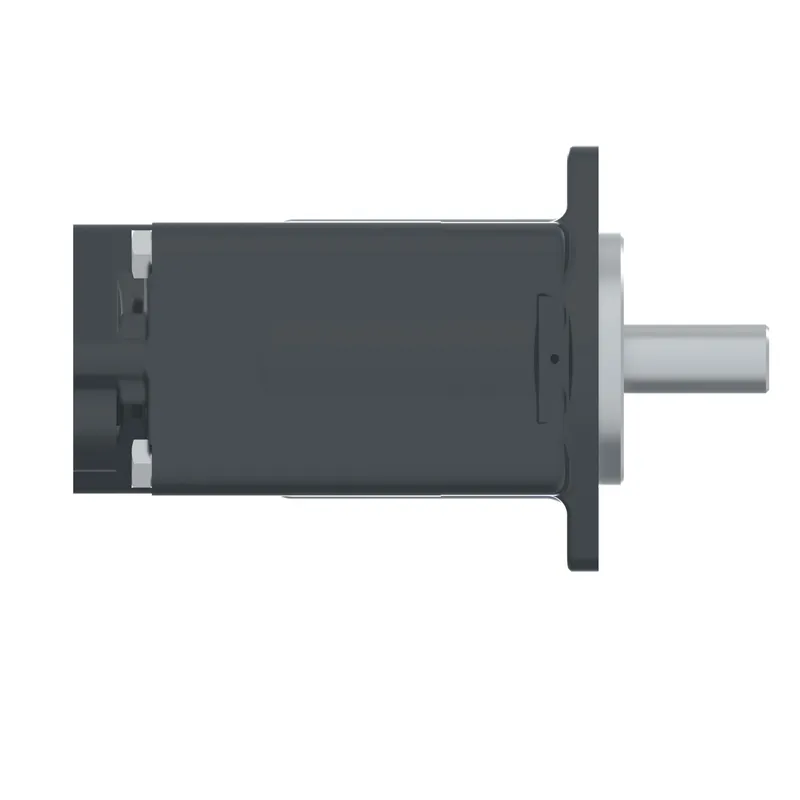

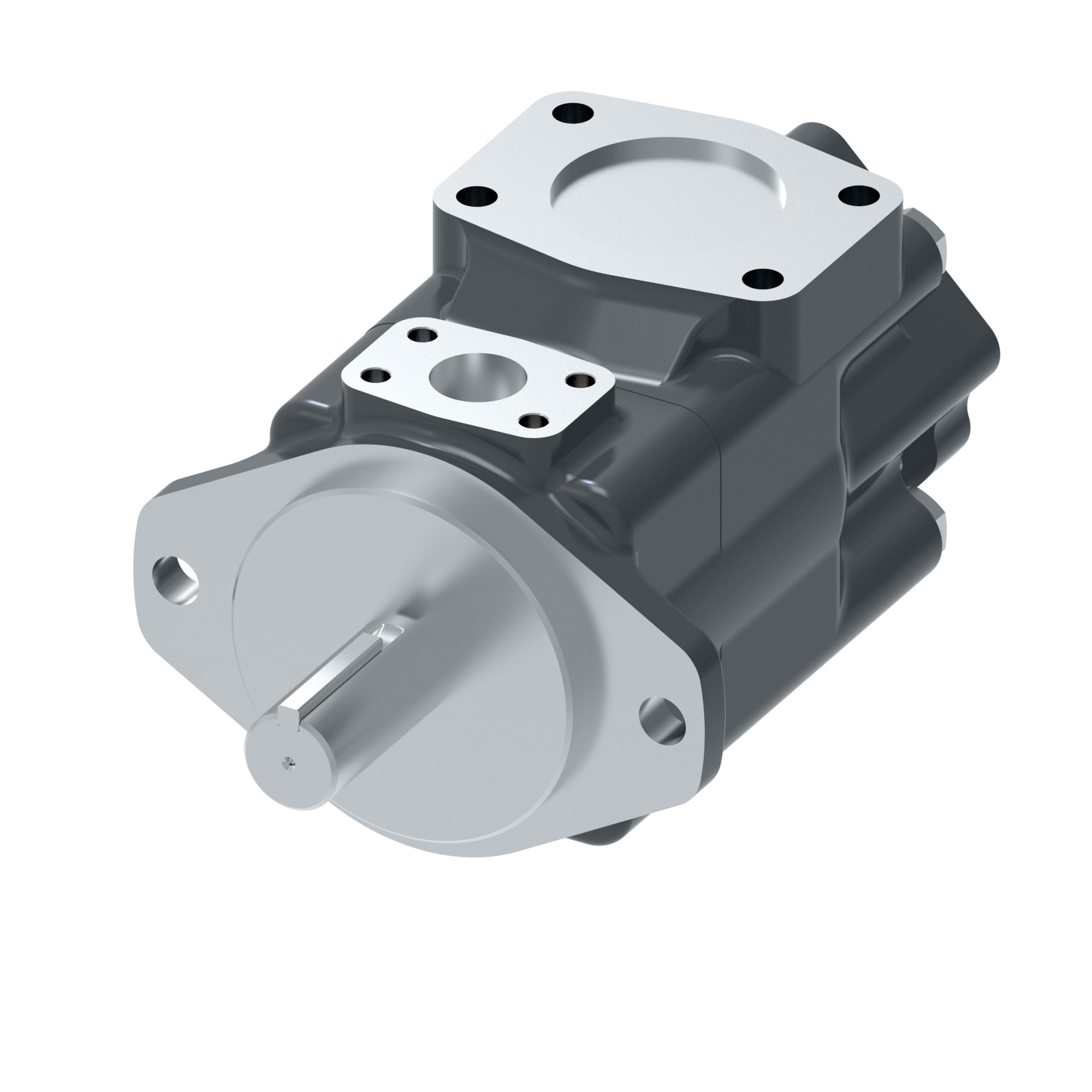

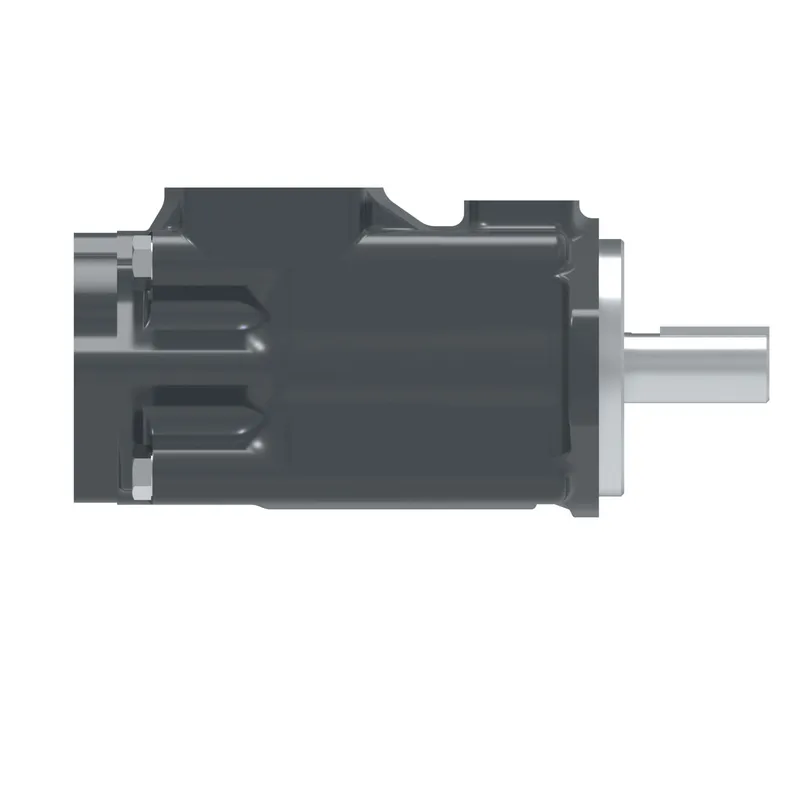

Danfoss 45VQTCS50A 2203CC20R, 45VQTCS50A 2203CC20R, manufacturer part number 02-125649-3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| PUMP TYPE | VANE TYPE PUMP VQ-MOBILE |
| Series | INTRAVANE PUMP SERIES |
| ROT FROM SHAFT END | RIGHT HAND OR CLOCKWISE |
| THRU DRIVE | THRU DRIVE |
| ADPMTG ORT ADP END | A ADAPTER- ROTATED 45⁰ CW WITH RESPECT TO PUMP MTG. FLG. B OR C ADAPTER- IN LINE WITH PUMP MTG. FLANGE |
| BODY MOUNTING FLG | SAE J744 MOUNTING FLANGE |
| Brand | Vickers by Danfoss |
| CPLG FOR TAND PUMP | SAE SPLINED COUPLING INCLUDED WITH PUMP |
| DESIGN NO MOD | DESIGN CODE-SINGLE SHAFT SEAL |
| DRIVE SHAFT TYPE | 203 - SQUARE KEYED SHAFT |
| IPM FRAME SIZE | 45VQ Single Pump |
| Model Code 1 | 45VQTCS50A 2203CC20R |
| O POS FROM ADP END | IN LINE WITH INLET PORT |
| ROTATING GROUP CAP | 50 GPM |
| SAE PORT CONNECTION | INLET-4 BOLT FLG. OUTLET-4 BOLT FLG. |
| THRU CXN MTG ADP | TWO BOLT SAE 'C' FLANGE |
