Home / Danfoss (Drives) / 25VTAS17A-2202AA-22R, 25VTAS17A-2202AA-22R
Available on request

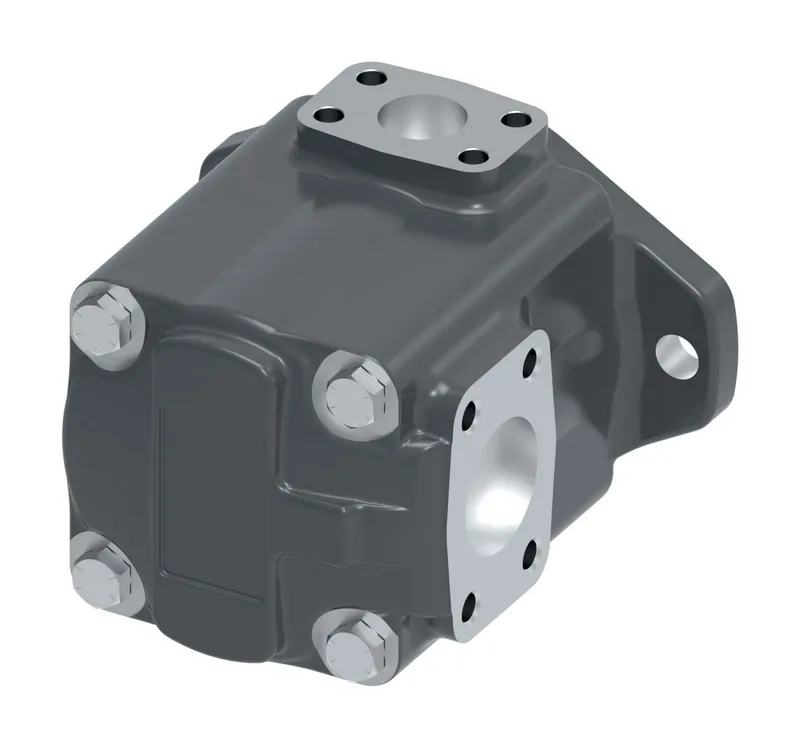

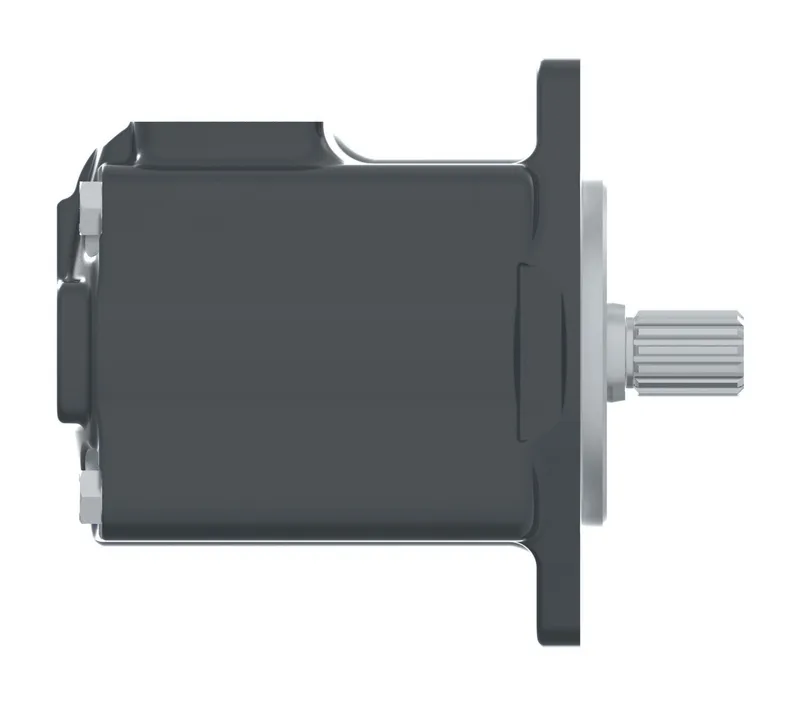

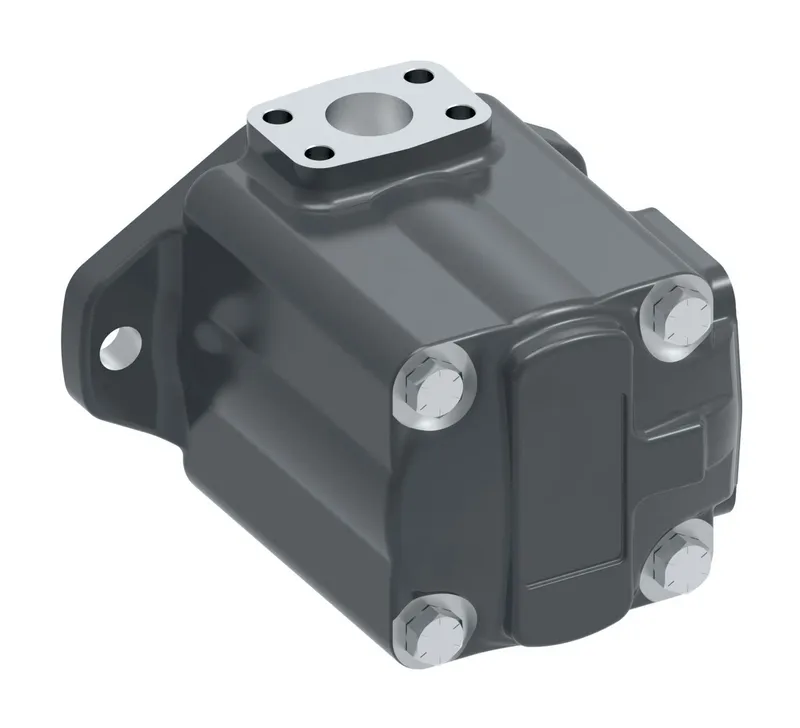

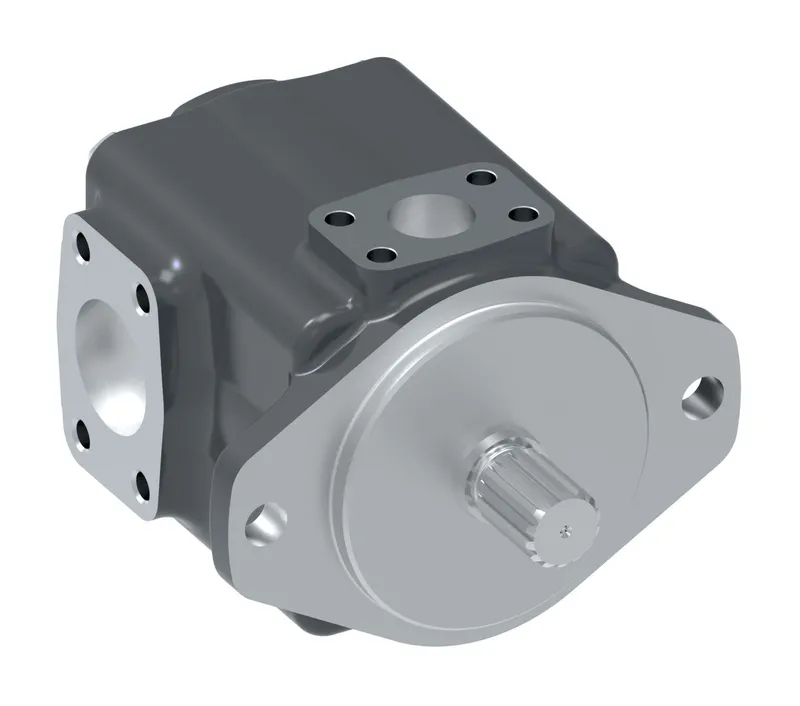

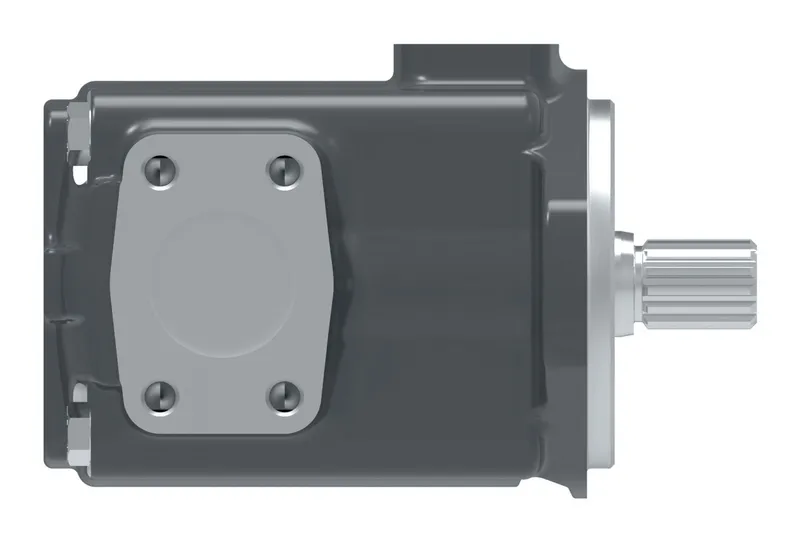

25VTAS17A-2202AA-22R, 25VTAS17A-2202AA-22R

MPN: 02-125403-AAR · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryIndustrial vane pumps
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-125403-AAR be shipped?

02-125403-AAR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-125403-AAR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-125403-AAR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-125403-AAR, subject to availability and destination.

Danfoss 25VTAS17A-2202AA-22R, 25VTAS17A-2202AA-22R, manufacturer part number 02-125403-AAR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

DESIGN NODESIGN NO - 22
IPM FRAME SIZE25VT Thru-Drive Pump
PORT CONNECTIONINLET: 4 BOLT FLANGE OUTLET: 4 BOLT FLANGE
PUMP TYPEVANE PUMP, THRU DRIVE
RING CAPACITY17 GPM
ROTATION FROM SHAFT ENDCLOCKWISE
SeriesSERIES DESIGNATION
SHAFT202- SAE 'B' SQUARE KEY
BODY MOUNTING FLANGESAE J-744 101-2 MOUNTING FLANGE
ADAPTER MTG ORIENTATIONFOR ADAPTER 'A' : ROTATE 45° CW WITH RESPECT TO MOUNTING FLANGE VIEWED FROM ADAPTER END. FOR ADAPTER 'B': INLINE WITH MOUNTINGFLANGE
COUPLINGWITH SPLINE FOR TANDEM PUMP
OUTLET POSITIONOUTLET OPPOSITE INLET
THRU CONNECTION MOUNTINGTWO BOLT SAE 'A' FLANGE
BrandVickers by Danfoss
Model Code 125VTAS17A-2202AA-22R
