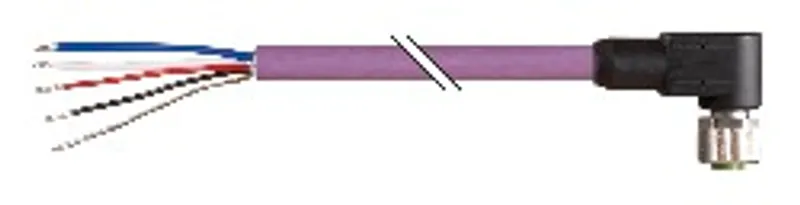

B&R X67CA0X31.0150 – Accessories, X2X Link attachment cable, M12, 4-pin, angled

Name: B&R X67CA0X31.0150 – Accessories, X2X Link attachment cable, M12, 4-pin, angled
Brand: B&R
SKU: X67CA0X31.0150

MPN: X67CA0X31.0150 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	X2X Link cable
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.06 kg

Shipping & availability

When can X67CA0X31.0150 be shipped?

X67CA0X31.0150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67CA0X31.0150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67CA0X31.0150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0X31.0150, subject to availability and destination.

X2X Link attachment cable, angled, 15 m

Specifications

Short description

Accessories

X2X Link attachment cable, M12, 4-pin, angled, 15 m

General information

Cable cross section – AWG	2x 24 AWG
Cable cross section – mm²	2x 0.25 mm²
Cable cross section – AWG	2x 22 AWG
Cable cross section – mm²	2x 0.34 mm²
Note	Halogen-free
Durability	Flame-retardant

Cable construction

Signal line – Shield	Pair shielding with aluminum foil
Signal line – Stranding	Twisted-pair wires
Outer jacket – Material	Thermoplastic polyurethane (TPU)
Outer jacket – Color	Violet
Wires – Data lines	Blue, white
Wires – Power supply lines	Red, black
Wires – Data lines	Cell polyethylene (PE)
Wires – Power supply lines	Polypropylene (PP)
Wires – Type	Tinned copper ETB1; Data line: Fine stranded wire (19x 0.13 mm); Supply line: Fine stranded wire (19x 0.15 mm)
Cable stranding	0.35 mm² (22 AWG) with filler
Cable shield	Tinned copper braiding, coverage >85%

Electrical properties

Rated voltage	250 V
Nominal current	Max. 4 A / Contact at 40°C
Operating voltage	Max. 250 V
Degree of insulation	Category II per IEC 61076-2
Conductor resistance	Data line: ≤78 Ω/km; Supply line: ≤55 Ω/km
Insulation resistance	≥100 MΩ

Operating conditions

Degree of protection per EN 60529 – Connector/Coupling

IP67, only when screwed in

Ambient conditions

Temperature – Transport	-40 to 80°C
Temperature – Fixed installation	-40 to 80°C
Temperature – Flexible installation " data-placement="top" data-html="true" data-container="body" data-content="In cable drag chain operation<br>">	-25 to 60°C

Mechanical properties

Dimensions – Length	15 m
Dimensions – Diameter	6.9 mm ±0.3 mm
Bend radius – Fixed installation	≥5x outer diameter
Bend radius – Flexible installation	≥15x outer diameter
Drag chain data – Acceleration	Max. 4 m/s²
Drag chain data – Flex cycles	Min. 2 million
Drag chain data – Velocity	Max. 3 m/s
Weight	0.063 kg/m
