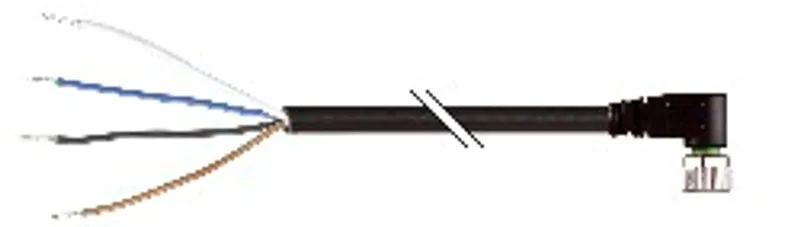

B&R X67CA0P30.0100 – Accessories, power attachment cable, 4-pin, angled, 10 m

Name: B&R X67CA0P30.0100 – Accessories, power attachment cable, 4-pin, angled, 10 m
Brand: B&R
SKU: X67CA0P30.0100

MPN: X67CA0P30.0100 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O supply cable
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X67CA0P30.0100 be shipped?

X67CA0P30.0100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67CA0P30.0100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67CA0P30.0100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0P30.0100, subject to availability and destination.

Power attachment cable, 4-pin, angled, 10 m

Specifications

Short description

Accessories

Power attachment cable, 4-pin, angled, 10 m

General information

Cable cross section – AWG	4x 20 AWG
Cable cross section – mm²	4x 0.5 mm²
Note	PVC- and silicone-free; PWIS- and halogen-free
Durability	Good chemical and oil resistance; Flame-retardant; Good UV and ozone resistance

Cable construction

Outer jacket – Material	Polyurethane (PUR)
Outer jacket – Color	Black
Wires – Wire insulation	Polypropylene (PP) 9Y
Wires – Wire colors	Brown, black, blue, white
Wires – Type	Uncoated copper ETP1; Fine stranded wire (42x 0.1 mm / 42x 38 AWG), class 6
Wires – Stranding	Not stranded
Cable shield	Not shielded

Electrical properties

Nominal current	Max. 4 A per EN / Contact at 40°C; Max. 3 A per UL / Contact
Operating voltage	Max. 60 V
Degree of insulation	Category II per IEC 61076-2
Conductor resistance	≤57 Ω/km
Insulation resistance	≥100 MΩ

Operating conditions

Degree of protection per EN 60529 – Connector/Coupling

IP67, only when screwed in

Ambient conditions

Temperature – Transport	-40 to 90°C
Temperature – Fixed installation	-30 to 90°C
Temperature – Flexible installation " data-placement="top" data-html="true" data-container="body" data-content="In cable drag chain operation<br>">	-25 to 60°C

Mechanical properties

Dimensions – Length	10 m
Dimensions – Diameter	5 mm ±0.2 mm
Bend radius – Fixed installation	≥5x outer diameter
Bend radius – Flexible installation	≥10x outer diameter
Drag chain data – Acceleration	Max. 5 m/s²
Drag chain data – Flex cycles	5 million
Drag chain data – Velocity	Max. 3.3 m/s
