B&R X67CA0E41.0200 – Accessories, POWERLINK/Ethernet connection cable

Name: B&R X67CA0E41.0200 – Accessories, POWERLINK/Ethernet connection cable
Brand: B&R
SKU: X67CA0E41.0200

MPN: X67CA0E41.0200 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	POWERLINK/Ethernet-Cable
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.06 kg

Shipping & availability

When can X67CA0E41.0200 be shipped?

X67CA0E41.0200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67CA0E41.0200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67CA0E41.0200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0E41.0200, subject to availability and destination.

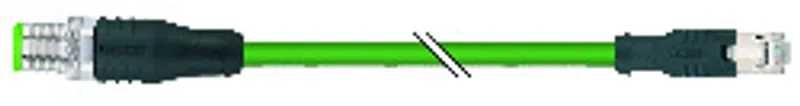

POWERLINK/Ethernet connection cable, RJ45 to M12, 20 m

Specifications

Short description

Accessories

POWERLINK/Ethernet connection cable, RJ45 to M12, 4-pin, straight, 20 m

General information

Cable cross section – AWG	4x 22 AWG
Cable cross section – mm²	4x 0.34 mm²
Note	PWIS- and halogen-free " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> Halogen-free">
Durability	Flame-retardant, RoHS-compliant ; Acid, alkali and oil resistant ; Salt water resistant ; UV and ozone resistant " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> Flame-retardant per IEC 60332-1-2; RoHS 2011/65/EU">

Cable construction

Outer jacket – Material	Polyurethane (PUR)
Outer jacket – Color	Green
Wires – Wire insulation	FRNC (Flame-Retardant Non-Corrosive)
Wires – Wire colors	White, yellow, blue, orange
Wires – Type	Tinned copper stranded wire; Fine stranded wire (7x 0.25 mm / 7x 30 AWG)
Wires – Stranding	Complete stranding ; 4 wires to the star quad
Cable shield	Overlapping aluminum-clad foil, tinned copper braiding, 85% coverage

Electrical properties

Test voltage – Wire - Wire	2000 V
Test voltage – Wire - Shield	2000 V
Operating voltage	Max. 60 V for PoE
Conductor resistance	≤120 Ω/km at 20°C
Transfer properties	Category 5 / Class D up to 100 MHz per ISO/IEC 11801 (EN 50173-1), ISO/IEC 24702 (EN 50173-3)
Transfer rate	10/100 Mbit/s
Insulation resistance	≥500 MΩ/km at 20°C

Operating conditions

Degree of protection per EN 60529 – Cables	IP67
Degree of protection per EN 60529 – M12 connector	IP67, only when screwed in
Degree of protection per EN 60529 – RJ45 connector	IP20, only when properly connected

Ambient conditions

Temperature – Transport	-50 to 75°C " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> -50 to 70°C">
Temperature – Fixed installation	-40 to 75°C " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> -40 to 70°C">
Temperature – Flexible installation	-30 to 70°C " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> -20 to 60°C">

Mechanical properties

Dimensions – Length	20 m
Dimensions – Diameter	6.5 mm ±0.2 mm
Bend radius – Fixed installation	≥4x outer diameter " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> ≥3x outer diameter">
Bend radius – Flexible installation	≥8x outer diameter " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> ≥7x outer diameter">
Drag chain data " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> Cables cannot be used in cable drag chains."> – Acceleration	3 m/s²
Drag chain data " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> Cables cannot be used in cable drag chains."> – Flex cycles	Min. 3 million
Drag chain data " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> Cables cannot be used in cable drag chains."> – Velocity	3 m/s
Drag chain data " data-placement="top" data-html="true" data-container="body" data-content="<strong>Up to version <D0:</strong> Cables cannot be used in cable drag chains."> – Bend radius	200 mm
Weight	0.064 kg/m
