Available on request

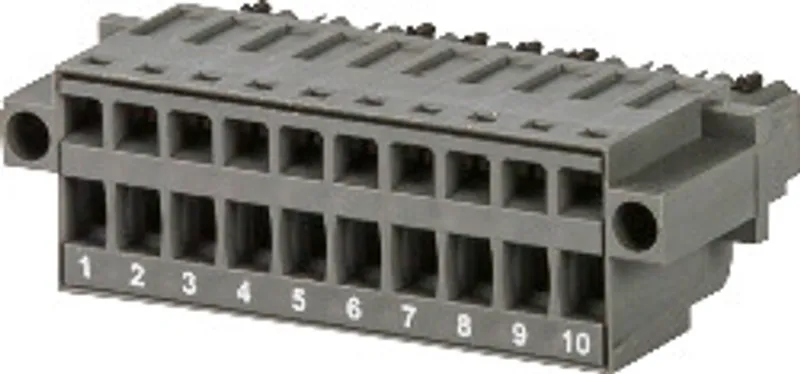

B&R 8TB1110.21C-00 – Cage clamp terminal block 10-pin, one-row, pitch: 3.5 mm
MPN: 8TB1110.21C-00 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 10.9 kg |
Shipping & availability
When can 8TB1110.21C-00 be shipped?
8TB1110.21C-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8TB1110.21C-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8TB1110.21C-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB1110.21C-00, subject to availability and destination.
Cage clamp terminal block 10-pin, one-row, pitch: 3.5 mm, coding C: 1001111001
Specifications
Terminal block
| Connection cross section – AWG wire | 26 to 14 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.2 to 1 mm² |
| Connection cross section – Single-wire | 0.2 to 1.5 mm² |
| Connection cross section – Fine-stranded wires | 0.2 to 1.5 mm² |
| Connection cross section – With wire end sleeve | 0.2 to 1.5 mm² |
| Note | Labeling: None; Coding C: 1001111001; 1-row |
| Number of pins | 10 |
| Type of terminal block | Cage clamp terminal block |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | C |
| Pitch | 3.5 mm |
| Wire stripping length | 6 mm |
| Tightening torque | 0.2 to 0.25 Nm |
Electrical properties
| Nominal voltage | 320 V (IEC) / 300 V (UL) |
| Nominal current | 14.5 A (IEC) / 10 A (UL) |
Mechanical properties
| Dimensions – Width | 42 mm |
| Dimensions – Height | 13 mm |
| Dimensions – Depth | 22 mm |
| Weight | 10.9 g |
