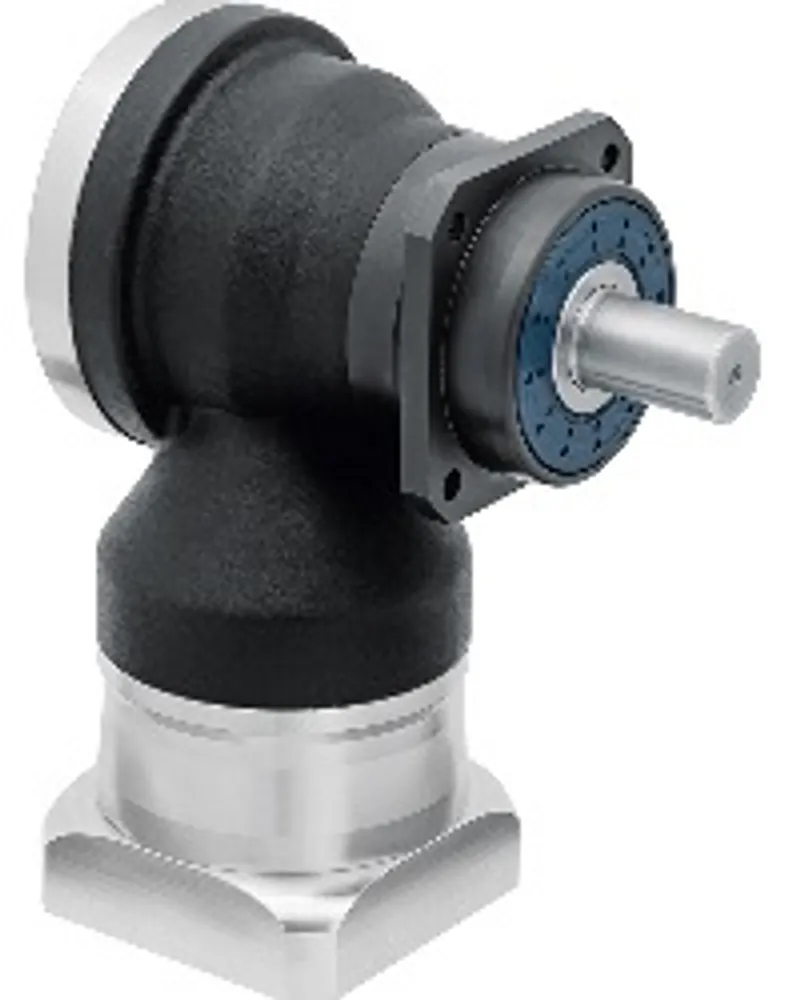

B&R 8GA60-070hh016klmm – Angular PG, i = 016, 2-stage, IP65.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Angular planetary gearboxes 8GA |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 8GA60-070hh016klmm be shipped?
8GA60-070hh016klmm is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8GA60-070hh016klmm in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8GA60-070hh016klmm and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GA60-070hh016klmm, subject to availability and destination.
Angular PG, i = 016, 2-stage, IP65.
Specifications
Gearbox
| Number of gear stages | 2 |
| Gear ratio i | 16 |
| Nominal output torque T 2N [Nm] | 77 |
| Max. output torque T 2max [Nm] | 123 |
| Emergency switch-off torque T 2stop [Nm] | 150 |
| Idle torque [Nm] at 20°C and 3000 rpm | 1 |
| Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1 | 1850 |
| Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1 | 1550 |
| Max. drive speed n 1max [rpm] | 16000 |
| Max. backlash J t [arcmin] | 7 |
| Reduced backlash J t [arcmin] less than | 0 |
| Torsional rigidity C t21 [Nm/arcmin] | 2.4 |
| Tilt tension C 2K [Nm/arcmin] | 0 |
| Max. breakdown torque M 2Kmax [Nm] | 0 |
| Max. radial force Fr max [N] for 30,000 h | 3200 |
| Max. radial force Fr max [N] for 20,000 h | 3200 |
| Max. axial force Fa max [N] for 30,000 h | 3900 |
| Max. axial force Fa max [N] for 20,000 h | 4400 |
| Operating noise L PA [dB(A)] | 66 |
| Efficiency at full load ŋ [%] | 94 |
| Min. operating temperature B Tempmin [°C] | -25 |
| Max. operating temperature B Tempmax [°C] | 90 |
| Mounting orientation | Any |
| Degree of protection | IP 65 |
| Weight m [kg] | 3.9 |
| Moment of inertia J 1 [kgcm 2] | 0.639 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| System overview planetary gearboxes | PDF · 3 MB · 1.4 (01/10/2024) - EN |
