B&R 8ECM0009.1111C-0 – ACOPOS P3 motor cable, length 9 m

Name: B&R 8ECM0009.1111C-0 – ACOPOS P3 motor cable, length 9 m
Brand: B&R
SKU: 8ECM0009.1111C-0

MPN: 8ECM0009.1111C-0 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	1.5 mm² motor cables
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.3 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8ECM0009.1111C-0 be shipped?

8ECM0009.1111C-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8ECM0009.1111C-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8ECM0009.1111C-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8ECM0009.1111C-0, subject to availability and destination.

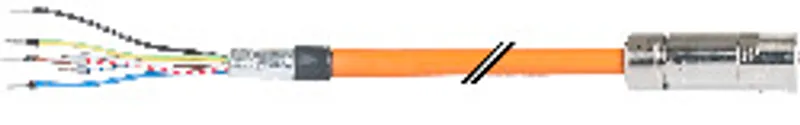

ACOPOS P3 motor cable, length 9 m, 4x 1.5 mm² + 2x 2x 0.75 mm², 8-pin female speedtec motor connector size 1, can be used in cable drag chains

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Cable cross section	4x 1.5 mm² + 2x 2x 0.75 mm²
Durability	Oil resistance per HD 22.10 appendix A DIN EN 60811-404 (note: Values refer to the raw cable being used.)
Certification	E170315 cRUus AWM STYLE 21223 AWM I/II A/B 80°C 1000 V FT1 (note: Values refer to the raw cable being used.)

Cable construction

Power lines – Quantity	4
Power lines – Wire insulation	PP
Power lines – Wire colors	Black, brown, blue, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	1.5 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	PP
Signal line – Wire colors	White, white/red, white/blue, white/green
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	0.75 mm²
Signal line – Shield	Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield
Signal line – Stranding	White with white/red and white/blue with white/green
Outer jacket – Material	TPU
Outer jacket – Color	Orange, similar to RAL 2003 flat
Outer jacket – Labeling	B&R 4 G 1.5 + 2 x (2x0.75)C C E170315 cRUus AWM STYLE 21223 AWM I/II A/B 80°C 1000 V FT1 production order number (note: Values refer to the raw cable being used.)
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	8-pin female speedtec motor connector
Mating cycles	<500
Contacts	8 (4 power and 4 signal contacts)
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties

Test voltage – Wire - Wire	4 kV
Test voltage – Wire - Shield	4 kV
Conductor resistance – Power lines	≤13.7 Ω/km
Conductor resistance – Signal line	≤26.7 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	20 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	17.8 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	20.9 A
Operating voltage	Max. 1000 VAC (UL)
Insulation resistance	≥500 MΩ*km

Ambient conditions

Temperature – Moving	-20°C to +80°C
Temperature – Static	-20°C to +90°C

Mechanical properties

Dimensions – Length	9 m
Dimensions – Diameter	12.2 mm ±0.3 mm
Bend radius – Single bend	>38 mm
Bend radius – Moving	>94 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles	≥5,000,000 (note: At an ambient temperature from -20°C to +60°C.)
Drag chain data – Velocity	Max. 300 m/min
Weight	1.3 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8ECM0009.1111C-0

PDF · 186 KB · 1.5 (05/25/2023) - EN

Certificates (3)

EU Declaration Servos ACOPOS P3	PDF · 238 KB · 2025-07 (10/27/2025)
UK Declaration ACOPOSmicro	PDF · 109 KB · 2022-09 (09/12/2022)
UK Declaration Servos ACOPOS P3	PDF · 126 KB · 2022-09 (09/09/2022)
