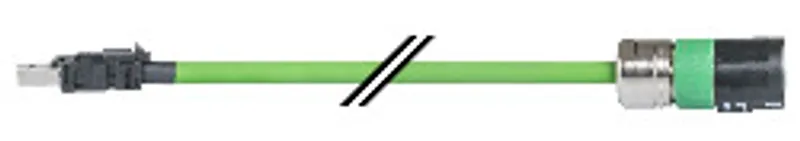

B&R 8ECF0008.1221C-0 – ACOPOS P3 EnDat 2.2 cable, length 8 m
MPN: 8ECF0008.1221C-0 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.2 cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.5 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8ECF0008.1221C-0 be shipped?
8ECF0008.1221C-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8ECF0008.1221C-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8ECF0008.1221C-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8ECF0008.1221C-0, subject to availability and destination.
ACOPOS P3 EnDat 2.2 cable, length 8 m, 1x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 8-pin Mini I/O male connector, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Cable cross section | 4x 0.14 mm² + 4x 0.35 mm² |
| Durability | Oil resistance per DIN EN 50363-10-2 (VDE 0207-363-10-2) as well as standard cleaning agents and hydraulic oil " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
Cable construction
| Supply lines – Quantity | 4 |
| Supply lines – Wire insulation | Special thermoplastic material |
| Supply lines – Wire colors | White/Green, brown/green, blue, white |
| Supply lines – Variant | Tinned copper stranded wire |
| Supply lines – Cross section | 0.35 mm² |
| Supply lines – Shield | No |
| Supply lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Polyolefin foam |
| Signal line – Wire colors | Yellow, gray, pink, violet |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.14 mm² |
| Signal line – Shield | No |
| Signal line – Stranding | All 4 wires together |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Green flat |
| Outer jacket – Labeling | B&R 4x0,14 + 4x0,35 FLEX (UL) AWM STYLE 20963 80°C 30 V E63216 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper/Tin braiding, optical coverage ≥85% |
Connector
| Type | 12-pin female series 615 signal connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 8-pin male Mini I/O encoder connector; Mating cycles: <1500; Contacts: 8; Degree of protection per EN 60529: IP30 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Test voltage – Wire - Wire | 1 kV |
| Test voltage – Wire - Shield | 0.5 kV |
| Conductor resistance – Supply lines | ≤55 Ω/km |
| Conductor resistance – Signal line | ≤134 Ω/km |
| Operating voltage | ≤30 V |
| Insulation resistance | >200 MΩ*km |
Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Temperature – Moving | -10°C to 80°C |
| Temperature – Static | -40°C to 80°C |
Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Dimensions – Length | 8 m |
| Dimensions – Diameter | 6 mm ±0.2 mm |
| Bend radius – Single bend | ≥19 mm |
| Bend radius – Moving | ≥47 mm |
| Drag chain data – Acceleration | ≤6 g |
| Drag chain data – Flex cycles " data-placement="top" data-html="true" data-container="body" data-content="Valid at an ambient temperature of 20°C and bend radius of 78 mm."> | ≥3000000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 0.5 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8ECF0008.1221C-0 | PDF · 170 KB · 1.4 (05/24/2023) - EN |
Certificates (3)
| EU Declaration Servos ACOPOS P3 | PDF · 238 KB · 2025-07 (10/27/2025) |
| UK Declaration ACOPOSmicro | PDF · 109 KB · 2022-09 (09/12/2022) |
| UK Declaration Servos ACOPOS P3 | PDF · 126 KB · 2022-09 (09/09/2022) |
