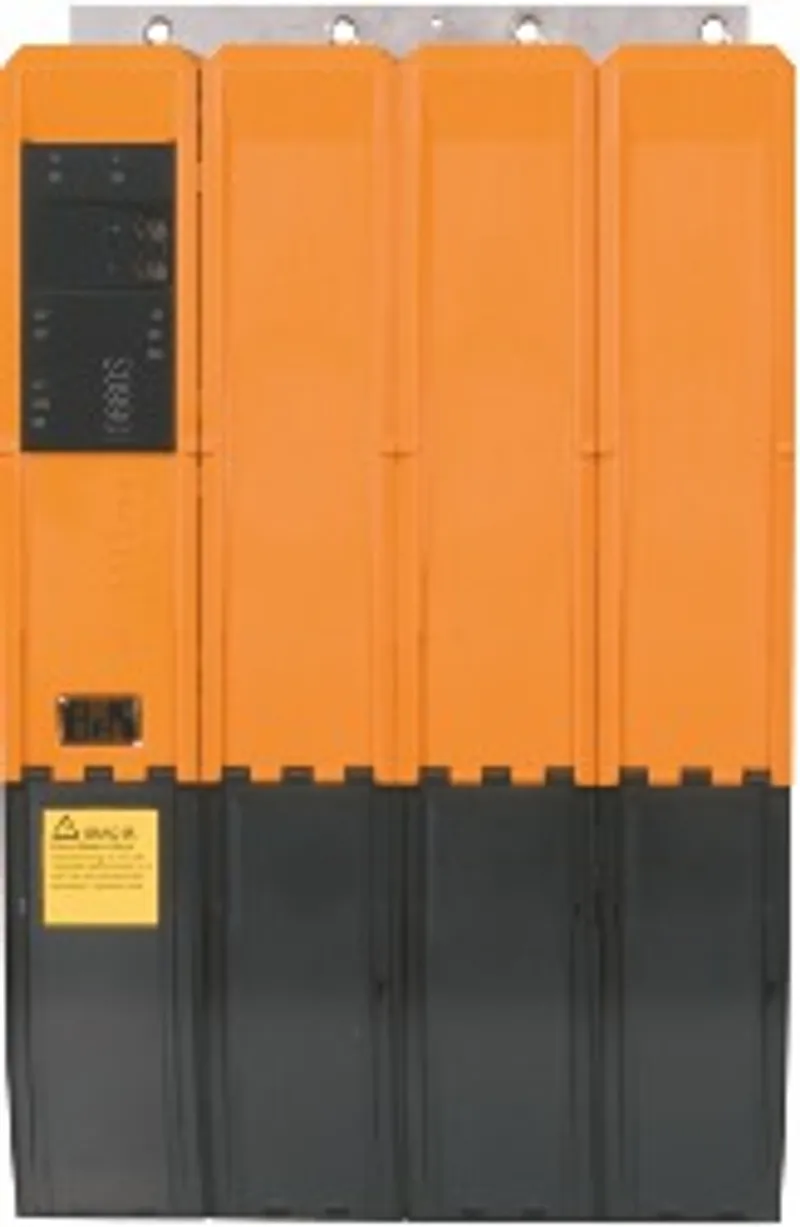

B&R 8BVI0660HCS0.008-1 – ACOPOSmulti inverter module, 66 A, AS

Name: B&R 8BVI0660HCS0.008-1 – ACOPOSmulti inverter module, 66 A, AS
Brand: B&R
SKU: 8BVI0660HCS0.008-1

MPN: 8BVI0660HCS0.008-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Cold plate or feed-through mounting
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8BVI0660HCS0.008-1 be shipped?

8BVI0660HCS0.008-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BVI0660HCS0.008-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BVI0660HCS0.008-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0660HCS0.008-1, subject to availability and destination.

ACOPOSmulti inverter module, 66 A, AS, cold plate or pass-through mounting

Accessories

Required accessories (order separately)

8BZVI1650S0.000-1A

Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8BVI0660HxS0, 8BVI0880HxS0, 8BVI1650HxS0 and 8BVI2000HxS0 modules: 1x 8TB2104.203L-00, 1x 8T…

Optional accessories (29)

8BXF001.0000-00	Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
X20CA0E61.00100	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00035	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m
X20CA0E61.00030	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m
X20CA0E61.00025	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m
X20CA0E61.00020	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
8BAC0133.000-1	Plug-in modules — Encoder emulation module for installation in ACOPOSmulti modules; 3 RS422 outputs; ABR encoder emulation ACOPOSmulti plug-in module, 3 RS42…
8BAC0132.000-1	Plug-in modules — Analog input module for installation in ACOPOSmulti modules; 4 high-speed analog inputs ±10 V ACOPOSmulti plug-in module, 4 analog inputs ±…
8BAC0130.001-1	Plug-in modules — Digital output module for installation in ACOPOSmulti modules; 2 high-speed outputs, +24 VDC; 2 standard readable outputs, +24 VDC ACOPOSmu…
8BAC0130.000-1	Plug-in modules — Digital mixed module for installation in ACOPOSmulti modules; 2 inputs, +24 VDC; 2 high-speed outputs, +24 VDC; 2 standard readable outputs…
8BAC0125.000-1	Plug-in modules — Interface for evaluating sinusoidal output signals; Functions and protocols selected through configuration (using a higher-level controller…
8BAC0124.000-1	Plug-in modules — SinCos interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with sinusoidal output signal; Encoder supply…
8BAC0123.002-1	Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp…
8BAC0123.001-1	Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp…
8BAC0123.000-1	Plug-in modules — Incremental encoder and SSI absolute encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental/SSI encoders with…
8BAC0122.000-1	Plug-in modules — Resolver interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, resolver interf…
8BAC0121.000-1	Plug-in modules — HIPERFACE interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, HIPERFACE inte…
8BAC0120.001-2	Plug-in modules — EnDat 2.2 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; Embedded parameter chip when used with B&R motors…
8BAC0120.000-1	Plug-in modules — EnDat 2.1 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; High-precision analog signal processing; Embedded…
8SCS010.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK14-20, 1x shield connection clamp SK20
8SCS005.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x slot cover / shield plate
8SCS004.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield plate 4x type 0, 2x hose clamps, B 9 mm, D 32-50 mm
8SCS003.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield mounting plate 4x 45°, 8x screws
8SCS002.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws
8SCS001.0000-00	Shield component sets — ACOPOSmulti shield component set: 1x shield plate 4x type 1, 1x hose clamp, B 9 mm, D 12-22 mm
8TB2108.2010-00	Terminal blocks — 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2106.2010-00	Terminal blocks — 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively
8TB2104.203L-00	Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010

Specifications

General information

Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Evaluation ongoing
Certifications – Functional safety	Yes
Certifications – UL	cULus E225616; Power conversion equipment
B&R ID code	0x2C23
Cooling and mounting type	Cold plate or pass-through mounting
Slots for plug-in modules	2

DC bus connection

Voltage – Nominal	750 VDC
Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 5 kHz	In preparation
Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 10 kHz	In preparation
Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 20 kHz	In preparation
Continuous power consumption " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">	48.8 kW
DC bus capacitance	1980 µF
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	32.9 µF
Max. power consumption	27 W + P SLOT1 + P SLOT2 + P 24 V Out + P HoldingBrake " data-placement="top" data-html="true" data-container="body" data-content="P<sub>SLOT1</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT1 (see the technical data for the respective plug-in module). <br>P<sub>SLOT2</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT2 (see the technical data for the respective plug-in module). <br>P<sub>24 V Out</sub> ... Power [W] that is output to connections X2/+24 V Out 1 and X2/+24 V Out 2 on the module (max. 10 W).">
Variant	ACOPOSmulti backplane

24 VDC output

Output voltage – DC bus voltage (U DC ): 260 to 315 VDC	25 VDC * (U DC /315)
Output voltage – DC bus voltage (U DC ): 315 to 800 VDC	24 VDC ±6%
Quantity	2
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Motor connection

Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Cold plate mounting " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the return temperature of the cold plate mounting plate.">	1.9 A/K (starting at 58°C) " data-placement="top" data-html="true" data-container="body" data-content="Value for the nominal switching frequency.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Pass-through mounting	1.82 A/K (starting at 40°C) " data-placement="top" data-html="true" data-container="body" data-content="Value for the nominal switching frequency.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Cold plate mounting " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the return temperature of the cold plate mounting plate.">	1.36 A/K (starting at 27°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the return temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies. <br>Caution! Condensation can occur at low flow temperatures and return temperatures.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Pass-through mounting	0.88 A/K (starting at -12°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the ambient temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Cold plate mounting " data-placement="top" data-html="true" data-container="body" data-content="The temperature specifications refer to the return temperature of the cold plate mounting plate.">	0.75 A/K (starting at -37°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the return temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies. <br>Caution! Condensation can occur at low flow temperatures and return temperatures.">
Reduction of continuous current depending on switching frequency and mounting type " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, minimum permissible coolant flow volume (3 l/min)."> – Pass-through mounting	0.54 A/K (starting at -106°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the ambient temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies.">
Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	6.6 A eff per 1000 m
Protective measures – Overload protection	Yes
Protective measures – Short-circuit and ground fault protection	Yes
Variant – U, V, W, PE	M8 threaded bolts
Variant – Shield connection	Yes
Connection cross section range – Flexible and fine-stranded wires	--- " data-placement="top" data-html="true" data-container="body" data-content="The connection is made with cable lugs for M8 (0.32") threaded bolts. The nominal cross section of the cable lug must match the cross section of the conductor to be connected in the particular application.">
Max. motor line length depending on switching frequency – Switching frequency 5 kHz	25 m
Max. motor line length depending on switching frequency – Switching frequency 10 kHz	25 m
Max. motor line length depending on switching frequency – Switching frequency 20 kHz	25 m
Quantity	1
Continuous power per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">	48 kW
Continuous current per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.">	66 A eff
Peak current	132 A eff
Nominal switching frequency	5 kHz
Possible switching frequencies " data-placement="top" data-html="true" data-container="body" data-content="B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization.">	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004 " data-placement="top" data-html="true" data-container="body" data-content="If necessary, the stress of the motor isolation system can be reduced by an additional externally wired dv/dt choke. For example, the RWK 305 three-phase dv/dt choke from Schaffner (www.schaffner.com) can be used. IMPORTANT: Even when using a dv/dt choke, it is necessary to ensure that an EMC-compatible, low inductance shield connection is used!">	Limit value curve A " data-placement="top" data-html="true" data-container="body" data-content="Only applies when using B&R motor cables and B&R motors.">
Max. output frequency	598 Hz " data-placement="top" data-html="true" data-container="body" data-content="The module's electrical output frequency (SCTRL_SPEED_ACT * MOTOR_POLEPAIRS) is monitored to protect against dual use in accordance with Regulation (EC) 428/2009 \| 3A225. If the electrical output frequency of the module exceeds the limit value of 598 Hz uninterrupted for more than 0.5 s, then the current movement is aborted and error 6060 is output ("Power unit: Limit speed exceeded").">
Terminal cable cross section dimension of shield connection	12 to 50 mm " data-placement="top" data-html="true" data-container="body" data-content="The maximum diameter that can be clamped depends on the shield component set used.">

Motor holding brake connection

Protective measures – Overload and short-circuit protection	Yes
Protective measures – Open-circuit monitoring	Yes
Protective measures – Undervoltage monitoring	Yes
Quantity	1
Output voltage " data-placement="top" data-html="true" data-container="body" data-content="During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the intended wiring. For the operating voltage range of the holding brake, see the user documentation for the motor being used.">	24 VDC +5.8% / -0% " data-placement="top" data-html="true" data-container="body" data-content="The specified value is only valid under the following conditions: <br>- The 24 VDC power supply for the module is provided by an 8B0C auxiliary supply module located on the same mounting plate. <br>- Connection of connectors S1 and S2 (activation of the external holding brake) by a jumper with a maximum length of 10 cm. <br>If the 24 VDC power supply for the module is applied to the mounting plate using an 8BVE expansion module, then the output voltage is reduced because of voltage drops on the expansion cable. In this case, undervoltage monitoring must be disabled. <br>If jumpers longer than 10 cm are used to connect connectors S1 and S2, then the output voltage is reduced due to voltage drops on the jumpers.">
Continuous current per connection	4.2 A
Max. internal resistance	0.15 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	3 Ws
Max. switching frequency	0.5 Hz
Response threshold for open-circuit monitoring	Approx. 0.5 A
Response threshold for undervoltage monitoring	24 VDC +0% / -4%

Enable inputs

Electrical isolation – Input - Inverter module	Yes
Electrical isolation – Input - Input	Yes
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Switching delay at nominal input voltage – Enable 1 → 0, PWM off	Max. 20.5 ms
Switching delay at nominal input voltage – Enable 0 → 1, ready for PWM	Max. 100 µs
Quantity	2
Circuit	Sink
Input current at nominal voltage	Approx. 30 mA
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections " data-placement="top" data-html="true" data-container="body" data-content="Output signal switching device (OSSD) signals are used for monitoring signal lines for short circuits and cross faults.">	Permitted ; Max. test pulse length: 500 µs

Trigger inputs

Electrical isolation – Input - Inverter module	Yes
Electrical isolation – Input - Input	Yes
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Switching delay – Rising edge	52 µs ±0.5 µs (digitally filtered)
Switching delay – Falling edge	53 µs ±0.5 µs (digitally filtered)
Quantity	2
Circuit	Sink
Input current at nominal voltage	Approx. 10 mA
Modulation compared to ground potential	Max. ±38 V

Temperature sensor connection

Quantity	1
Resistance range	500 Ω to 5 kΩ

Electrical properties

Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Power dissipation relative to continuous apparent power " data-placement="top" data-html="true" data-container="body" data-content="Continuous apparent power S[VA] = √3 * UMains[Vrms] * IMains[Arms]. IE2 notation (a,b) stands respectively for a load point with frequency a (as a percentage of the nominal frequency of the motor) and current b (as a percentage of the continuous current).">	IE2 (10,25) 1% ; IE2 (50,25) 1% ; IE2 (10,50) 1.2% ; IE2 (50,50) 1.2% ; IE2 (90,50) 1.2% ; IE2 (10,100) 2% ; IE2 (50,100) 2% ; IE2 (90,100) 2%
Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Nominal losses in standby mode	10.5 W
Discharge capacitance	0.44 µF

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum " data-placement="top" data-html="true" data-container="body" data-content="Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.">	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Cold plate	212 mm
Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Pass-through mounting	209 mm
Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Width	213.5 mm
Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Height	317 mm
Weight	Approx. 7.95 kg
Module width	4

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8BVI0660HCS0.008-1	PDF · 2 MB · 1.4 (02/19/2024) - EN
ACOPOSmulti User´s Manual	PDF · 309 MB · 1.30 (08/18/2025) - EN

CAD & dimension drawings

3D file STEP 8BVI0660HCS0.00x-1

ZIP · 248 KB · 3.1 (03/10/2017)

Certificates (6)

E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1)	PDF · 183 KB · 2.10 (07/20/2022)
EU Declaration FS Servos ACOPOSmulti	PDF · 989 KB · 2026-06 (07/08/2026) - EN
EU Declaration Servos ACOPOSmulti	PDF · 963 KB · 2026-06 (06/30/2026)
TÜV-certificate - function "Safe Pulse Disabling" for ACOPOSmulti	PDF · 1 MB · 2.10 (06/26/2026)
UK Declaration FS Servos ACOPOSmulti	PDF · 340 KB · 2026-06 (07/08/2026) - EN
UK Declaration Servos ACOPOSmulti	PDF · 337 KB · 2026-06 (06/29/2026)
