• Can be used in cable drag chains
• Assembled specifically for use with ACOPOSmicro, ACOPOS servo drives and B&R servo motors with series 615 built-in connectors
• itec - Innovative connector system for fast and secure connections

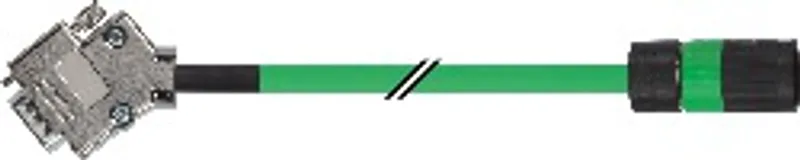

Resolver cable, length 4 m, 3x 2x 24 AWG (19x 0.127), 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 3x 2x 24 19 AWG |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
| Certification | UL AWM Style 20671, 90°C, 30 V, E63216 and CSA AWM, 90°C, 30 V, I/II A/B FT1 LL46064 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
Cable construction
| Signal line – Quantity | 6 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White/Brown, green/yellow, gray/pink |
| Signal line – Execution | Tinned copper stranded wire |
| Signal line – Cross section | 24 AWG / 19 AWG |
| Signal line – Shield | No |
| Signal line – Stranding | White with brown, green with yellow, gray with pink |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Green, similar to RAL 6018 flat |
| Outer jacket – Labeling | B&R 3x2x24 AWG FLEX UL AWM STYLE 20671 90°C 30 V E63216 CSA AWM 90°C 30 V I/II A/B FT1 LL46064 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
| Cable stranding | The 3 pairs together covered by foil shield |
| Cable shield | Copper braiding, optical coverage ≥90% and foil shield |
Connector
| Type | 12-pin female series 615 signal connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 9-pin male DSUB servo connector; Mating cycles: <200; Contacts: 9; Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Test voltage – Wire - Wire | 1.5 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – Signal line | ≤86 Ω/km |
| Operating voltage | ≤30 V eff |
| Insulation resistance | >200 MΩ*km |
Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Temperature – Moving | -20°C to +80°C |
| Temperature – Static | -20°C to +80°C |
Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Dimensions – Length | 4 m |
| Dimensions – Diameter | 6.5 mm ±0.2 mm |
| Bend radius – Single bend | ≥20 mm |
| Bend radius – Moving | ≥50 mm |
| Drag chain data – Acceleration | ≤6 g |
| Drag chain data – Flex cycles " data-placement="top" data-html="true" data-container="body" data-content="At an ambient temperature of 20°C and bend radius of 65 mm."> | >3,000,000 |
| Drag chain data – Speed | ≤4 m/s |
| Weight | 0.28 kg |
