B&R 8BCE0014.1111A-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.1 cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.1 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8BCE0014.1111A-0 be shipped?
8BCE0014.1111A-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCE0014.1111A-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCE0014.1111A-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCE0014.1111A-0, subject to availability and destination.
• Can be used in cable drag chains
• Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with Y-Tec connectors
• speedtec - Innovative connector system for secure connections

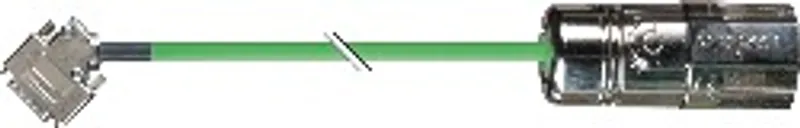

ACOPOSmulti EnDat 2.1 cable, length 14 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female speedtec EnDat connector, 15-pin male DSUB servo connector, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 5x 2x 0.14 mm² + 1x 2x 0.50 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used."> |
Cable construction
| Supply lines – Quantity | 2 |
| Supply lines – Wire insulation | Special thermoplastic material |
| Supply lines – Wire colors | White/Green, white/red |
| Supply lines – Variant | Tinned copper stranded wire |
| Supply lines – Cross section | 0.5 mm² |
| Supply lines – Shield | No |
| Supply lines – Stranding | White/Red with white/green and filler elements |
| Signal line – Quantity | 10 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | Blue, brown, yellow, gray, green, pink, red, black, violet, white |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.14 mm² |
| Signal line – Shield | No |
| Signal line – Stranding | Green with brown, gray with yellow, white with violet, black with red, pink with blue |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Green, similar to RAL 6018 flat |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper braiding, optical coverage >85% and foil shield |
Connector
| Type | 17-pin female speedtec EnDat connector |
| Mating cycles | <500 |
| Contacts | 17 |
| Additional connectors | 15-pin male DSUB servo connector; Mating cycles: <200; Contacts: 15; Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Test voltage – Wire - Wire | 1 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – Supply lines | ≤40 Ω/km |
| Conductor resistance – Signal line | ≤140 Ω/km |
| Operating voltage | ≤30 V eff |
| Insulation resistance | >200 MΩ*km |
Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Temperature – Moving | -20°C to +80°C |
| Temperature – Static | -20°C to +90°C |
Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
| Dimensions – Length | 14 m |
| Dimensions – Diameter | 7.85 mm ±0.2 mm |
| Bend radius – Single bend | ≥24 mm |
| Bend radius – Moving | ≥60 mm |
| Drag chain data – Acceleration | ≤6 g |
| Drag chain data – Flex cycles " data-placement="top" data-html="true" data-container="body" data-content="At an ambient temperature of 20°C and bend radius of 65 mm."> | >3,000,000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 1.1 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8BCE0014.1111A-0 | PDF · 217 KB · 1.5 (10/23/2023) - EN |
Certificates (4)
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | PDF · 282 KB · 1.30 (07/20/2022) |
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| UK Declaration ACOPOSmicro | PDF · 109 KB · 2022-09 (09/12/2022) |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
