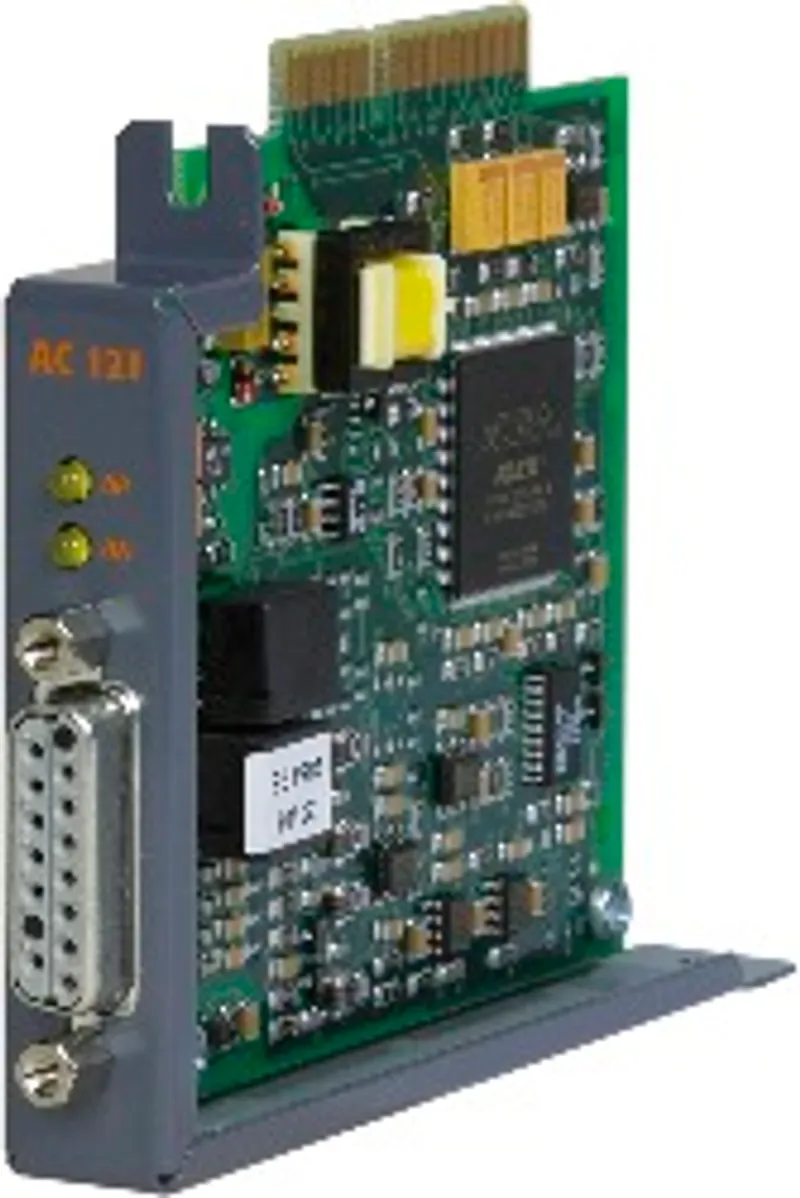

B&R 8AC121.60-1 – HIPERFACE interface for installation in ACOPOS servo drives

Name: B&R 8AC121.60-1 – HIPERFACE interface for installation in ACOPOS servo drives
Brand: B&R
SKU: 8AC121.60-1

MPN: 8AC121.60-1 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Plug-in modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8AC121.60-1 be shipped?

8AC121.60-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8AC121.60-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8AC121.60-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC121.60-1, subject to availability and destination.

• HIPERFACE interface for installation in ACOPOS servo drives

• Encoder monitoring

ACOPOS plug-in module, HIPERFACE interface

Specifications

General information

Power consumption – With encoder current consumption of 0 mA	0.35 W
Power consumption – With encoder current consumption of 100 mA	1.4 W
Power consumption – With encoder current consumption of 170 mA	2.1 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0x1558
Slot " data-placement="top" data-html="true" data-container="body" data-content="The AC121 is an encoder module. It is also possible to connect multiple encoder modules. In this case, the module in the smallest slot automatically serves as motor feedback.">	Slots 2, 3 and 4

Encoder inputs

Electrical isolation – Encoder - ACOPOS	No
Encoder power supply – Output voltage	8 to 9 V
Encoder power supply – Load capacity	170 mA
Encoder power supply – Sense lines	- " data-placement="top" data-html="true" data-container="body" data-content="No sense lines are present since the supply voltage for the HIPERFACE encoder is permitted to be between 7 and 12 V.">
Sine/Cosine inputs – Signal transmission	Differential signal, asymmetrical
Sine/Cosine inputs – Signal frequency	DC up to 200 kHz
Sine/Cosine inputs – Differential voltage	0.5 to 1.25 V ss
Sine/Cosine inputs – Common-mode voltage	Max. ±7 V
Sine/Cosine inputs – Terminating resistor	120 Ω
Sine/Cosine inputs – Resolution " data-placement="top" data-html="true" data-container="body" data-content="Noise on the encoder signal reduces the resolution that can be used by approx. 5 bits (factor of 32).">	16384 * Number of encoder lines
Sine/Cosine inputs – Accuracy " data-placement="top" data-html="true" data-container="body" data-content="In practice, the accuracy is limited by the encoder.">	-
Serial interface – Signal transmission	Asynchronous
Serial interface – Protocol	RS485
Serial interface – Baud rate	9600 baud
Quantity	1
Module-side connection	15-pin female DSUB, 2 pins closed
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	50 m " data-placement="top" data-html="true" data-container="body" data-content="Requirement: Wiring of the encoder takes place with a shielded cable with a wire cross section of min. 0.14 mm² for all signal lines and a wire cross section of min. 0.5 mm² for all encoder power supply lines. The sense lines must be used.">

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8AC121.60-1	PDF · 758 KB · 1.5 (04/24/2020) - EN
