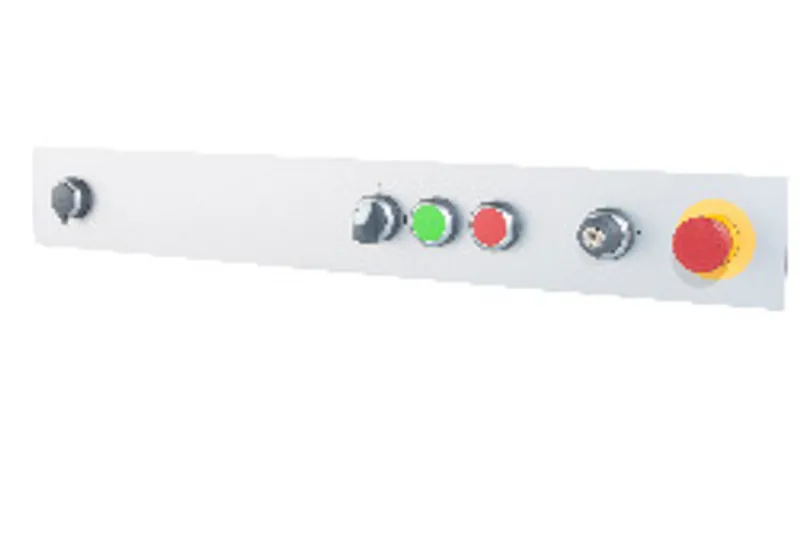

B&R 5ACCKPS0.215C-000 – AP5000 swing arm expansion option

Name: B&R 5ACCKPS0.215C-000 – AP5000 swing arm expansion option
Brand: B&R
SKU: 5ACCKPS0.215C-000

MPN: 5ACCKPS0.215C-000 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Expansion units
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.1 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 5ACCKPS0.215C-000 be shipped?

5ACCKPS0.215C-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5ACCKPS0.215C-000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5ACCKPS0.215C-000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCKPS0.215C-000, subject to availability and destination.

AP5000 swing arm expansion option - Expansion unit POWERLINK SAFETY - 1x emergency stop (SAFETY) - 2x pushbutton (red and green) - 1x selector switch (SAFETY) - 1x key switch (SAFETY) - 1x front USB interface - For panel 5AP5230.215C-000

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – Functional safety	Yes (openSAFETY)
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xEF21

Safety characteristics " data-placement="top" data-html="true" data-container="body" data-content="Safety characteristics apply only to the emergency stop.">

EN ISO 13849-1:2015 – Category	Cat. 4
EN ISO 13849-1:2015 – PL	PL e
EN ISO 13849-1:2015 – DC	>94%
EN ISO 13849-1:2015 – MTTFD per channel	2500 years
EN ISO 13849-1:2015 – Mission time	Max. 20 years
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – Module	<1*10 -10
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – openSAFETY wired	Negligible
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – openSAFETY wireless	<110 -14 Number of openSAFETY packets per hour
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – SIL CL	SIL 3
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – SFF	>90%
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – PFD per channel	<2*10 -5
IEC 61508:2010,; IEC 61511:2004,; EN 62061:2013 – Proof test interval (PT)	20 years
Emergency stop – B10d	Emergency stop switching element (1.20.126.414/0000): 130,000 ; Emergency stop button (1.30.273.512/0300): 130,000

Interfaces

USB – Quantity	1
USB – Type	USB 1.1 / USB 2.0
USB – Execution	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) " data-placement="top" data-html="true" data-container="body" data-content="In SDL operation: Max. USB 1.1 without additional USB type A/B cable<br>In SDL3 operation: Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (30 Mbit/s)<br>In SDL4 operation: Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (150 Mbit/s)">
USB – Current-carrying capacity	Max. 500 mA " data-placement="top" data-html="true" data-container="body" data-content="The USB interface is protected by a maintenance-free "USB current-limiting switch" (max. 500 mA).">
POWERLINK – Physical layer	100BASE-TX
POWERLINK – Half-duplex	Yes
POWERLINK – Full-duplex	No
POWERLINK – Autonegotiation	Yes
POWERLINK – Auto-MDI/MDIX	Yes
POWERLINK – Quantity	2
POWERLINK – Type	Controlled node
POWERLINK – Execution	2x RJ45 shielded
POWERLINK – Transfer rate	100 Mbit/s
POWERLINK – Line length	Max. 100 m between 2 nodes (segment length)

Features

Pushbuttons – Quantity	2 (green, red)
Pushbuttons – Type	Rafix 22 FS+ 1.30.270.021/2500 (green); Rafix 22 FS+ 1.30.270.021/2300 (red)
Selector switch – Quantity	1
Selector switch – Type	Rafix 22 FS+ 1.30.272.102/2200
Key switch – Quantity	1
Key switch – Type	Rafix 22 FS+ 1.30.255.222/0000
Emergency stop – Quantity	1
Emergency stop – Type	RAFIX 22 FS+ Plus 1 1.30.273.512/0300
Standard switching element – Quantity	4
Standard switching element – Type	2x maintained / 2x momentary - RAFIX 22 FS universal, 1.20.126.005/0000
Emergency stop switching element – Quantity	1
Emergency stop switching element – Type	Maintained - RAFIX 22 FS+ PCB gold, 1.20.126.414/0000

Electrical properties

Nominal voltage	24 VDC -15% / +20% SELV " data-placement="top" data-html="true" data-container="body" data-content="IEC 60204 requirements must be observed; see section "+24 VDC power supply".">
Nominal current	Max. 150 mA
Power consumption	2.5 W
Overvoltage category per EN 61131-2	II
Galvanic isolation	No

Operating conditions

Degree of protection per EN 60529	IP65 with panel with mounting unit 5ACCMA00.0000-000, 5ACCMA00.0001-000 or 5ACCMA00.0002-000
Degree of protection per UL 50	Type 4X indoor with mounting unit 5ACCMA00.0000-000, 5ACCMA00.0001-000 or 5ACCMA00.0002-000

Ambient conditions

Temperature – Operation	0 to 50°C " data-placement="top" data-html="true" data-container="body" data-content="Maximum temperature specifications refer to operation at 500 meters. The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.">
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 90%, non-condensing
Relative humidity – Transport	5 to 90%, non-condensing
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Vibration testing is performed per EN 60068-2-6.<br>Shock testing is performed per EN 60068-2-27."> – Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude; 9 to 200 Hz: 0.5 g peak
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Vibration testing is performed per EN 60068-2-6.<br>Shock testing is performed per EN 60068-2-27."> – Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude; 9 to 200 Hz: 1 g peak
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Vibration testing is performed per EN 60068-2-6.<br>Shock testing is performed per EN 60068-2-27."> – Storage	2 to 8 Hz: 7.5 mm amplitude; 8 to 200 Hz: 2 g peak; 200 to 500 Hz: 4 g peak
Vibration " data-placement="top" data-html="true" data-container="body" data-content="Vibration testing is performed per EN 60068-2-6.<br>Shock testing is performed per EN 60068-2-27."> – Transport	2 to 8 Hz: 7.5 mm amplitude; 8 to 200 Hz: 2 g peak; 200 to 500 Hz: 4 g peak
Shock " data-placement="top" data-html="true" data-container="body" data-content="Vibration testing is performed per EN 60068-2-6.<br>Shock testing is performed per EN 60068-2-27."> – Operation	15 g, 11 ms
Shock " data-placement="top" data-html="true" data-container="body" data-content="Vibration testing is performed per EN 60068-2-6.<br>Shock testing is performed per EN 60068-2-27."> – Storage	30 g, 6 ms
Shock " data-placement="top" data-html="true" data-container="body" data-content="Vibration testing is performed per EN 60068-2-6.<br>Shock testing is performed per EN 60068-2-27."> – Transport	30 g, 6 ms
Elevation – Operation	0 to 2000 m " data-placement="top" data-html="true" data-container="body" data-content="Maximum temperature specifications refer to operation at 500 meters. The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.">

Mechanical properties

Housing – Material	Steel sheet
Front – Material	Polyester overlay
Dimensions – Width	72.5 mm
Dimensions – Length	539 mm
Dimensions – Depth	33.6 mm " data-placement="top" data-html="true" data-container="body" data-content="See also section "Dimensions" (without key).">
Weight	Approx. 1000 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet 5ACCKPS0.215C-000	PDF · 3 MB · 1.00 (11/15/2018) - EN
Data sheet B050006543xx-yy and B050006677xx-yy - Legacy	PDF · 267 KB · 1.141 (05/03/2019) - EN
Data sheet B050006543xx-yy and B050006677xx-yy - mapp Safety	PDF · 138 KB · 2.10 (06/08/2021) - EN
