B&R 5ACCKP04.215C-000 – AP5000 swing arm expansion option, Expansion unit
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Expansion units |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1000 kg |
Shipping & availability
When can 5ACCKP04.215C-000 be shipped?
5ACCKP04.215C-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCKP04.215C-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCKP04.215C-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCKP04.215C-000, subject to availability and destination.

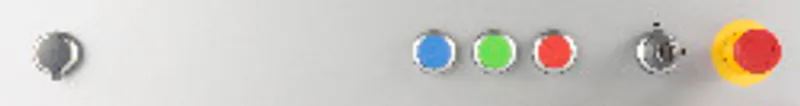

AP5000 swing arm expansion option - Expansion unit - 1x emergency stop - 3x pushbutton (red, green, blue) - 1x key switch - 1x front USB interface - For panel 5AP5230.215C-000
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | 500 mA |
Features
| Pushbuttons – Quantity | 3 (blue, green, red) |
| Pushbuttons – Type | RAFIX 22 FS+, 1.30.270.021/2600 (blue), 1.30.270.021/2500 (green), 1.30.270.021/2300 (red) |
| Pushbuttons – Contact element | Momentary |
| Key switch – Quantity | 1 |
| Key switch – Type | RAFIX 22 FS 1.30.275.222/0000 |
| Key switch – Contact element | Maintained |
| Emergency stop – Quantity | 1 |
| Emergency stop – Type | RAFIX 22 FS+, 1.30.273.511/0300 |
| Emergency stop – Contact element | Maintained |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Mechanical properties
| Material | Steel sheet |
| Weight | 1000 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| KCF Editor User's manual | PDF · 316 KB · 2.10 (05/27/2026) - EN |
| Key Editor help | ZIP · 8 MB · 4.50 (02/12/2025) - EN |
CAD & dimension drawings
| 3D Datei STEP 5ACCKP04.215C-000 | ZIP · 2 MB · 1.00 (06/13/2018) |
| 3D files DXF/STP 5ACCKP04.215C-000 | ZIP · 2 MB · 1.00 (06/03/2019) |
