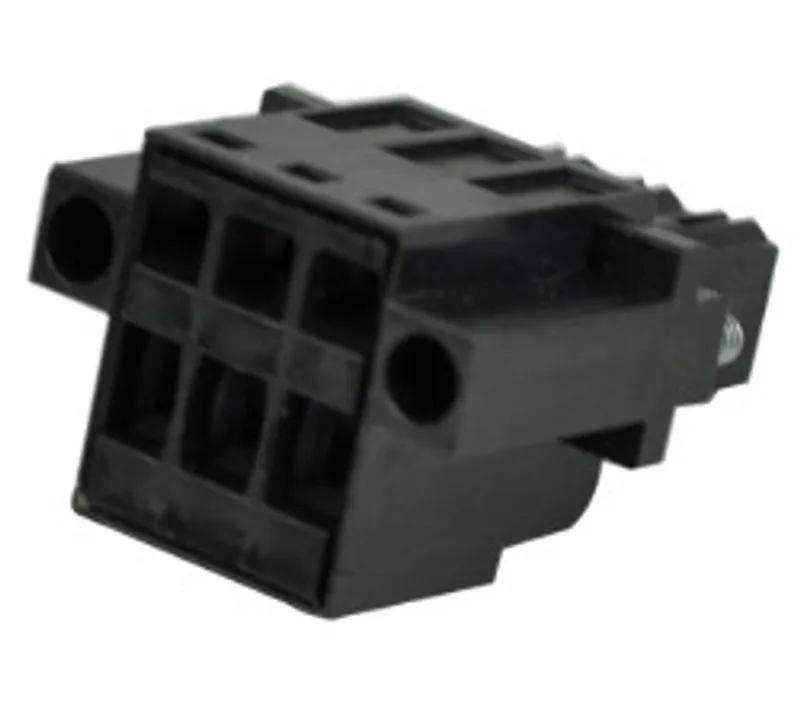

B&R 0TB703.81 – This 1-row, 3-pin terminal block is used to connect to…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TB703.81 be shipped?
0TB703.81 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB703.81 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB703.81 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB703.81, subject to availability and destination.
This 1-row, 3-pin terminal block is used to connect to various B&R modules.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
Terminal block
| Connection cross section – AWG wire | 26 to 14 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.20 to 1.00 mm² |
| Connection cross section – Single-wire | 0.20 to 1.50 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 1.50 mm² |
| Connection cross section – With wire end sleeve | 0.20 to 1.50 mm² |
| Note | Protected against vibration by the screw flange ; Nominal data per UL |
| Number of pins | 3 |
| Type of terminal block | Cage clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 3.5 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!"> | 10 A / contact |
| Contact resistance | ≤4.2 mΩ |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
CAD & dimension drawings
| 3D file STEP 0TB703.81 | ZIP · 78 KB · 1.00 (05/23/2025) |
