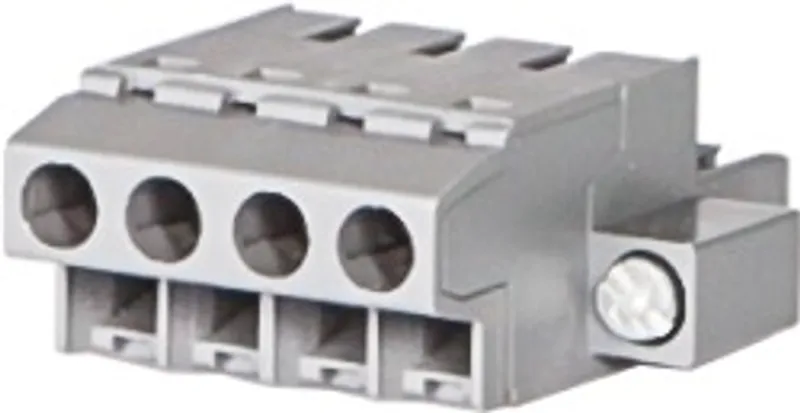

B&R 0TB2104.8000 – Connector 24 VDC, 4-pin female
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TB2104.8000 be shipped?
0TB2104.8000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB2104.8000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB2104.8000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB2104.8000, subject to availability and destination.
Connector 24 VDC - 4-pin female - Screw clamp terminal block 2.5 mm²
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Terminal block
| Connection cross section – AWG wire | 26 to 14 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.2 to 1.5 mm² |
| Connection cross section – Single-wire | 0.2 to 2.5 mm² |
| Connection cross section – Fine-stranded wires | 0.2 to 1.5 mm² |
| Connection cross section – With wire end sleeve | 0.2 to 1.5 mm² |
| Note | Nominal data per UL |
| Number of pins | 4 (female) |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 5.08 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current | 10 A (note: The respective limit data of the IF option must be taken into account!) |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Automation PC 3200 User's Manual | PDF · 11 MB · 1.11 (09/23/2026) - EN |
| Automation PC 4100 user's manual | PDF · 18 MB · 1.21 (08/03/2026) - EN |
| Panel PC 3200 User's Manual | PDF · 18 MB · 1.11 (09/23/2026) - EN |
More B&R parts
Available on requestB&R 0TB2104.4121 – Accessory terminal block, 4-pin, AX1, cage clamps 2.5 mm²
Available on requestB&R 0TB2104.4121-01 – Accessory terminal block, 4-pin, AX1

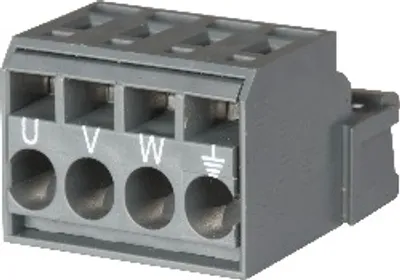

Available on requestB&R 0TB2104.4122 – Accessory terminal block, 4-pin, AX2, cage clamps 2.5 mm²
Available on requestB&R 0TB2104.4122-01 – Accessory terminal block, 4-pin, AX2
Available on requestB&R 0TB2105.4011 – Accessory terminal block, 5-pin, AX1, screw clamp 2.5 mm²

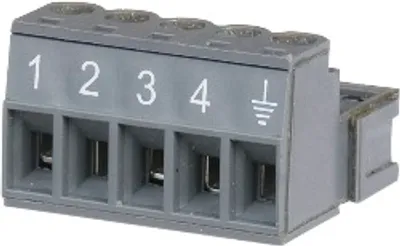

Available on requestB&R 0TB2105.4012 – Accessory terminal block, 5-pin, AX2 screw clamp 2.5 mm²
