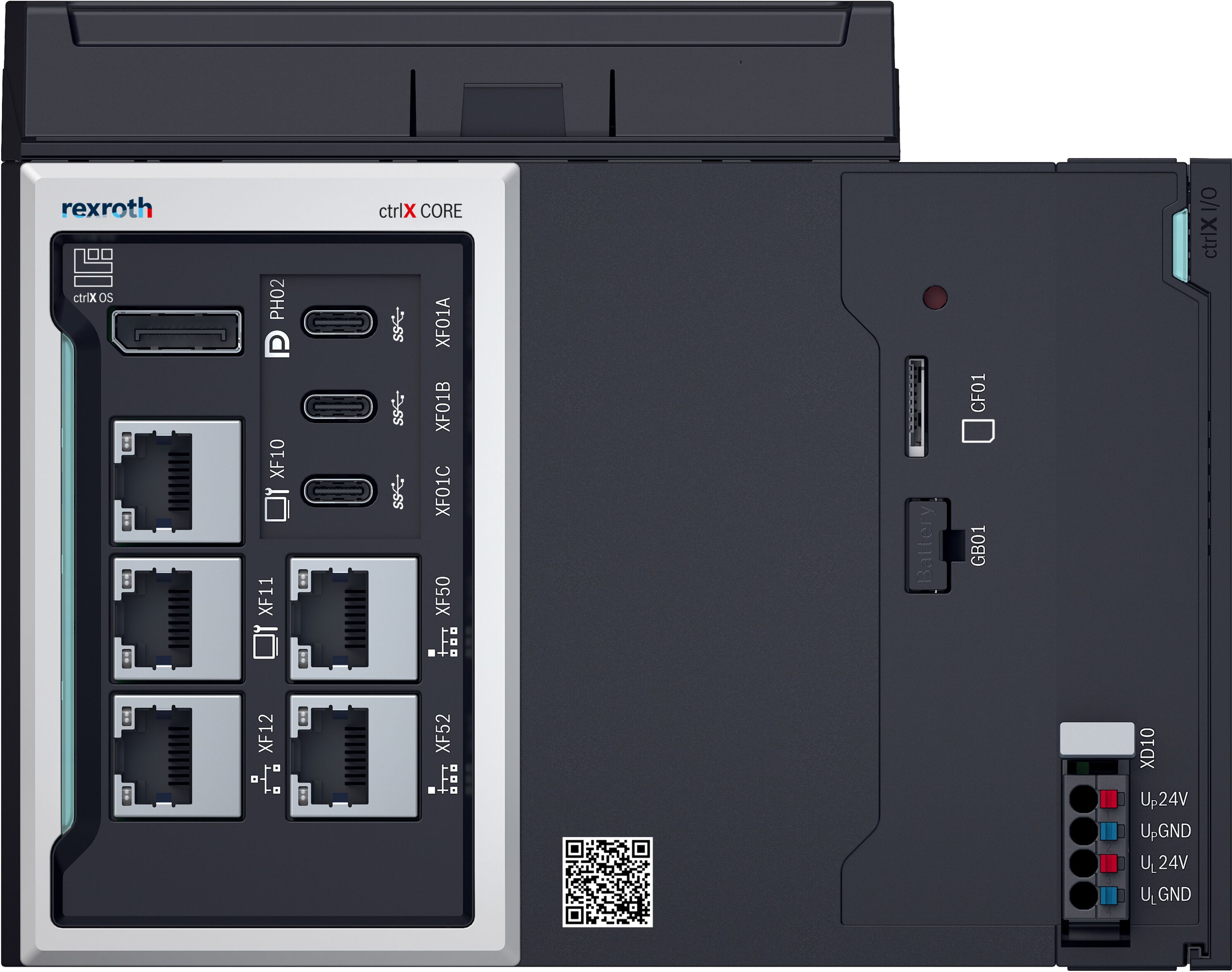

CONTROL COREX-M-X7-31-BNNN-21.01-02RS-NN-NN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ctrlX COREplus X7 modular control |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R914511507 be shipped?
R914511507 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R914511507 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R914511507 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R914511507, subject to availability and destination.
ctrlX COREplus X7 extends the top end of the portfolio by a variant with extremely high performance. <br><br>The main features of the ctrlX COREplus X7 at a glance:<br>- Intel Core i7-1185, actively cooled<br>- 16 GB RAM<br>- 32 GB eMMc<br>- 2 MBit retain data<br>- 3x USB-C 3.0 <br>- 1 µSD card slot<br>- 5x 1 GBit Ethernet interfaces, including 2 EtherCAT master ports<br>- display port<br>- optional expansion options e.g. field bus interfaces, SSD, ...<br>- I/O connection for I/O module attachment in series<br>- Modern industrial-grade Linux-based ctrlX OS operating system<br>- Flexible and safe software scalability with apps<br>- Consistent and web-based engineering
Specifications
Specifications
| Functions ctrlX CORE | ctrlX OS License - Bosch Rexroth - EtherCAT Master Basic |
| Communication option | EtherCAT Master |
| Processor | Intel CoreTM I7 1185GRE |
| Width [mm] | 160 |
| Height [mm] | 126 |
| Depth [mm] | 87 |
| International protection code | IP20 |
| Protection class | III |
| Mass memory | 32 GB eMMc |
| RAM | 16 GB |
| Type of battery | CR1025 |
| Vibration resistance | Oscillations, sinusoidal in all three axes; 5 Hz - 8.4 Hz with 3.5 mm amplitude; 8.4 Hz -150 Hz with 1 g peak acceleration |
| Shock test | Shock stress: Shock resistance in all three axes, 11 ms semi-sinusoidal 15 g |
| Maximum permitted voltage range [V DC] | 19.2-30 |
| Broadband noise | 20-500 Hz with 1.22 g RMS (Root-Mean-Square), 30 min in all three axes |
| Extension option 1 | without extension |
| Extension option 2 | without extension |
| Extension option 3 | without extension |
| Type of interface | 1 x slot for SD card; 1 × display port; 3 × USB host, TYPE C (USB3.1), maximum cable length of 3 m; Engineering port (RJ45) 5 × Ethernet connection (10 Mbit, 100 Mbit, 1 Gbit) |
| COREX design | Modular |
| Remanent memory | 2 MB |
| Power input UP | Typ. 5 mA (without I/O modules), 8 A max., at UP = 24 V |
| Power input UL | 48 W |
| Current requirement UL | 2 A |
| Permissible air humidity (during operation) [%] | 5-85 |
| Permissible air humidity (storage) [%] | 5-85 |
| Permissible air humidity (transport) [%] | 5-85 |
| Ambient temperature (storage and transport) [°C] | -40-70 |
| Ambient temperature during operation | 2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C |
| Maximum operating altitude [m] | 5000 |
| Weight [kg] | 1.48 |
