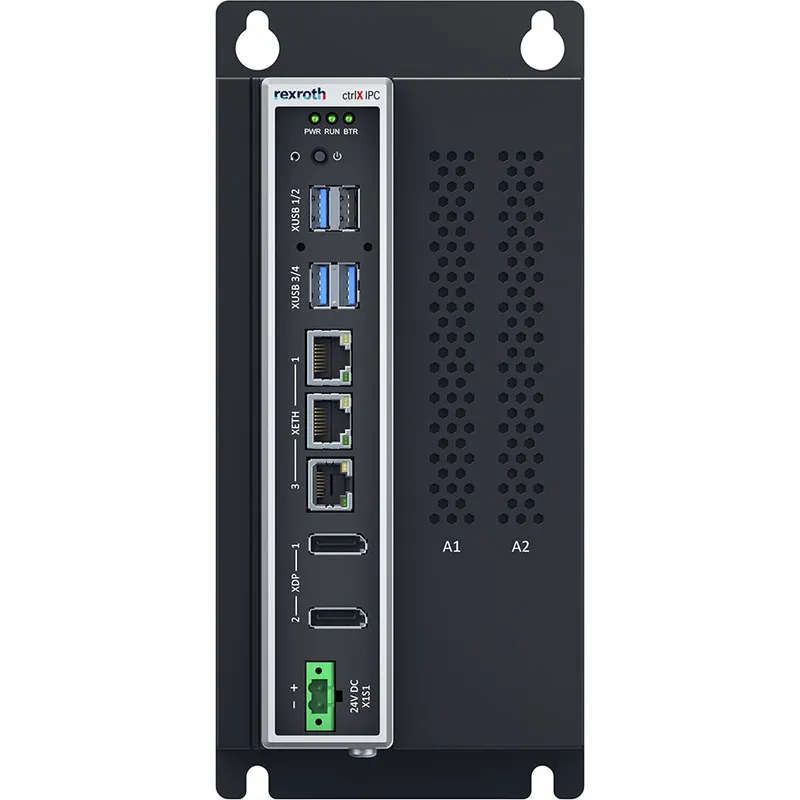

INDUSTRIAL COMPUTER PR4100.2-1O3-AA-00-BNN-0N-NNNNNN-H
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ctrlX IPC PR4 Mid-Range |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R911430029 be shipped?
R911430029 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R911430029 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R911430029 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911430029, subject to availability and destination.
The compact box PCs of the PR series are available in different housing versions. Various interfaces can be used to connect the spatially separated DR multi-touch displays. The use of the latest processor generation with low power losses gives the device a fanless device design. High performance as well as a variety of expansion options and standard interfaces, including real-time Ethernet communication, make the PR box PC the ideal solution platform for all HMI-based applications. The integrated TPM 2.0 chip provides the necessary security in the IoT environment, which makes the robust units ideal for Industry 4.0. Operating system: Windows 10 IoT Enterprise CPU: Intel Core i3/i5/i7 Extension slots: 2 x mini PCIe, 1 x half size mini PCIe Mass storage: 2 x SSD/HDD (RAID)
Specifications
Specifications
| Screen size | Without display |
| Processor | Intel CoreTM I3 1315URE 4.5 GHz |
| Width [mm] | 110 |
| Height [mm] | 230 |
| Depth [mm] | 147 |
| International protection code | IP20 |
| Mass memory | 2x 512 GB NVMe (RAID 1) |
| RAM | 16 GB |
| Supply voltage | 24 V DC |
| Type of interface | 1 x USB 2.0; 3 x USB 3.2 |
| Operating system | without OS |
| PCI/PCIe slots | 1x PCIe x4 |
| Interface (Display) | DisplayPort |
| Permissible air humidity (storage) [%] | 85 |
| Permissible air humidity (transport) [%] | 85 |
| Ambient temperature (storage and transport) [°C] | -20-60 |
| Ambient temperature (during operation) [°C] | 0-55 |
| Weight [kg] | 0 |
