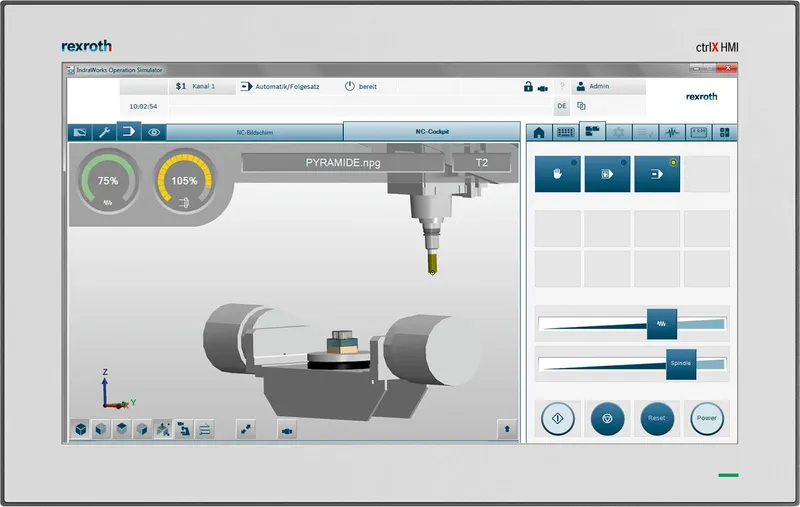

CONTROL/DISPLAY UNIT DR0012.1-12-NNN-AA

Name: CONTROL/DISPLAY UNIT DR0012.1-12-NNN-AA
Brand: Bosch Rexroth
SKU: R911390459

MPN: R911390459 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ctrlX HMI DR Built in Display
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911390459 be shipped?

R911390459 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911390459 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911390459 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911390459, subject to availability and destination.

The high-resolution displays of the DR series from the ctrlX HMI range are available in scaled sizes. They enable exact operation by means of a capacitive 10-point multi-touchscreen. Horizontal and vertical installation is possible. Anti-reflective and chemically hardened front glass makes them resistant to adverse environmental influences and guarantees a long service life. With the long-distance interface, distances of up to 100 m between operating display and box PC can be realized. Users can choose between using two displays in parallel or three displays in series. Horizontal and vertical installation Multi-touch gesture control 16:9 display formats from 12" to 21" Parallel or serial display topologies Robust due to non-reflecting and chemically hardened front glass

Specifications

Screen size	12" display / 16:9
Width [mm]	329
Height [mm]	231
Depth [mm]	65
Orientation	Horizontal
International protection code	IP65
Supply voltage	24 V DC
Type of interface	2 x USB 2.0
Display resolution	1280 x 800 Pixel
Interface (Display)	CDI+ daisy chain TX modul
Ambient temperature (storage and transport) [°C]	-20-60
Ambient temperature (during operation) [°C]	0-55
Weight [kg]	5.4
