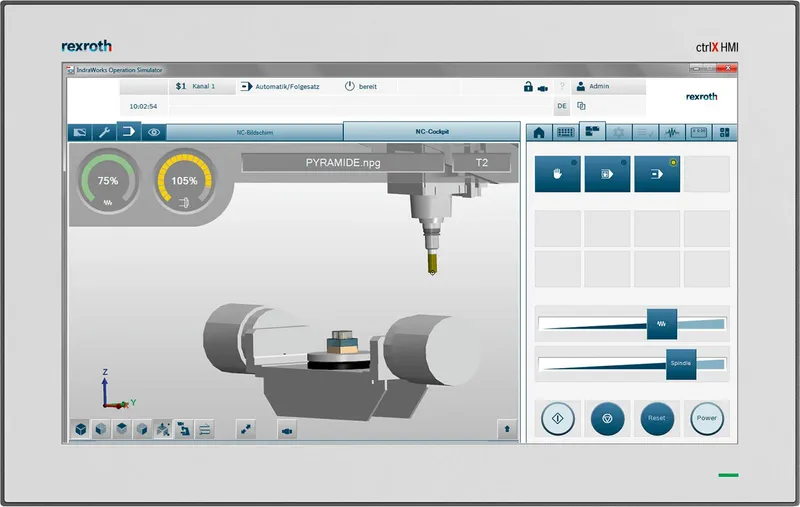

CONTROL/DISPLAY UNIT DR0015.1-10-NNN-AA

Name: CONTROL/DISPLAY UNIT DR0015.1-10-NNN-AA
Brand: Bosch Rexroth
SKU: R911381360

MPN: R911381360 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ctrlX HMI DR Built in Display
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911381360 be shipped?

R911381360 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911381360 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911381360 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911381360, subject to availability and destination.

The high-resolution displays of the DR series from the ctrlX HMI range are available in scaled sizes. They enable exact operation by means of a capacitive 10-point multi-touchscreen. Horizontal and vertical installation is possible. Anti-reflective and chemically hardened front glass makes them resistant to adverse environmental influences and guarantees a long service life. With the long-distance interface, distances of up to 100 m between operating display and box PC can be realized. Users can choose between using two displays in parallel or three displays in series. Horizontal and vertical installation Multi-touch gesture control 16:9 display formats from 12" to 21" Parallel or serial display topologies Robust due to non-reflecting and chemically hardened front glass

Specifications

Screen size	15" display / 16:9
Width [mm]	420
Height [mm]	269
Depth [mm]	65
Orientation	Horizontal
International protection code	Front IP66/ back IP20
Supply voltage	24 V DC
Type of interface	2 x USB 2.0
Display resolution	1366 x 768 Pixel
Interface (Display)	Standard Video DP
Ambient temperature (storage and transport) [°C]	-20-60
Ambient temperature (during operation) [°C]	0-55
Weight [kg]	7.5
