PLUG-IN CONNECTOR 7000-08041-6501500

Name: PLUG-IN CONNECTOR 7000-08041-6501500
Brand: Bosch Rexroth
SKU: R911344620

MPN: R911344620 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Electrical accessories for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911344620 be shipped?

R911344620 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911344620 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911344620 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911344620, subject to availability and destination.

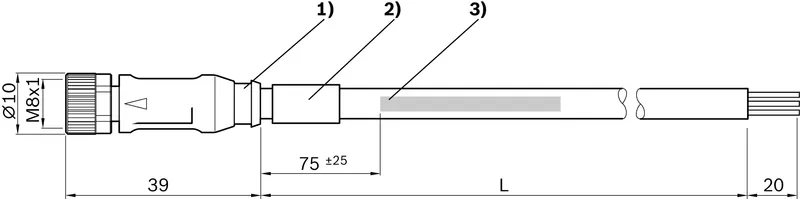

Extensions – assembled on one end

Specifications

Connection type 1	Female connector, straight, M8x1, 3-pin
Electrical accessories for electromechanical cylinders	Extensions
Electrical accessories for linear axes	Extensions
Use	Extension cable
Connection type 2	Unassembled cable end
Maximum acceleration rate amax [m/s²]	30.0
Cable cross-section	3 x 0.25 mm²
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Operating voltage indicator	no
Shield	no
Dynamic bending radius	≥ 10xD
Static bending radius	≥ 5xD
Bending cycles	> 10 million
Weight [kg]	0.36
Function indicator	no
Cable diameter D [mm]	4.1
Cable diameter D tolerance [mm]	±0.2
Cable color	Black
Cable material	PUR
Compatible	EMC, CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK
Max. permissible travel speed	3.3 m/s for 5 m travel range (typ.), up to 5 m/s for 0.9 m travel range
Suitable for drag chains	Yes
Protection class	IP68
Weld spark-resistant	no
Torsion-resistant	no
Ambient temperature fixed extension	-40 °C ... +85 °C
Ambient temperature flexible extension	-25 °C ... +85 °C
Dimension L [mm]	15000
