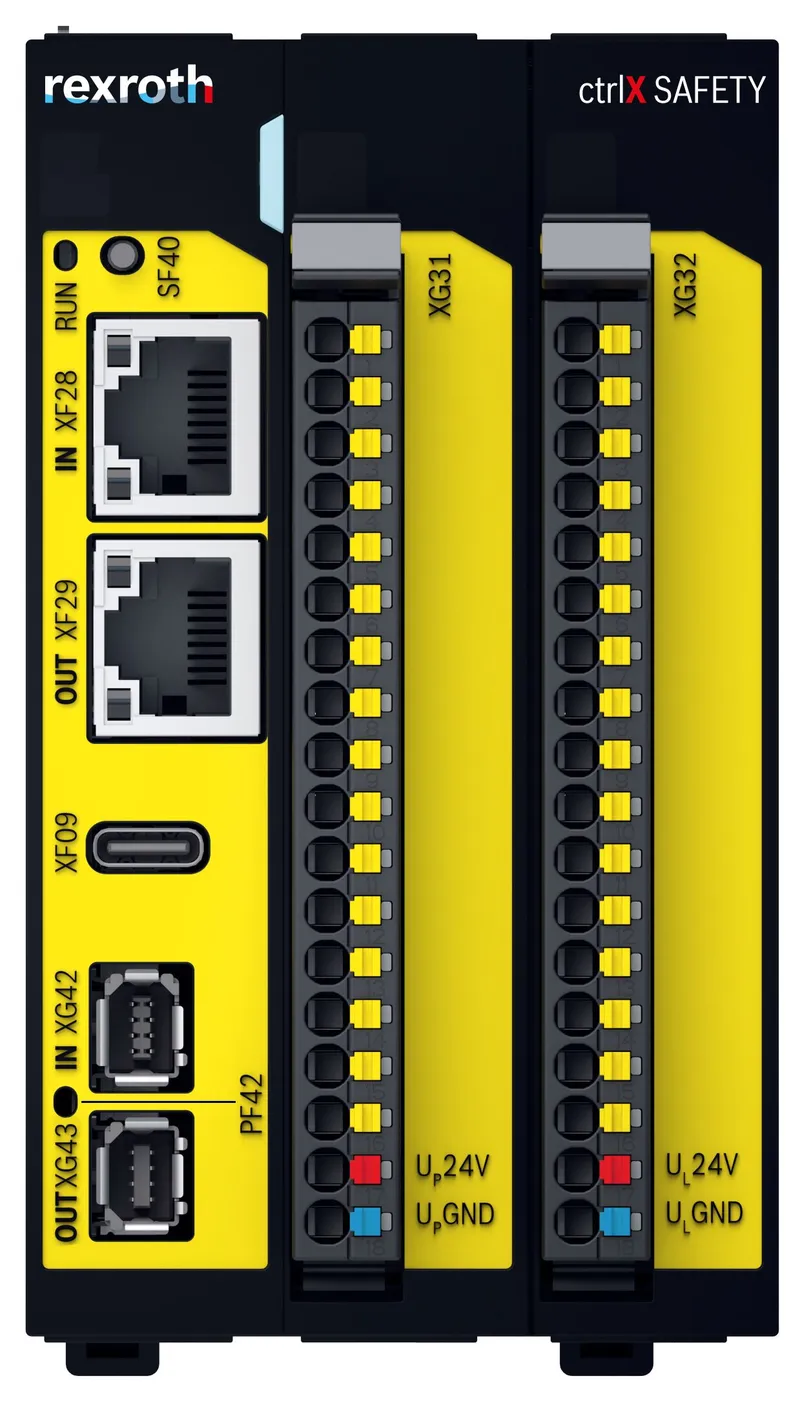

CONTROL SAFEX-C.12-11N1-2N.01-NN-NN

Name: CONTROL SAFEX-C.12-11N1-2N.01-NN-NN
Brand: Bosch Rexroth
SKU: R911175242

MPN: R911175242 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ctrlX SAFETY Controller
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911175242 be shipped?

R911175242 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911175242 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911175242 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911175242, subject to availability and destination.

ctrlX SAFETY – SAFEX-C.12 – Compact safety controller (16 inputs, 12 outputs, 2 relay outputs) optimized for the smallest installation space in the control cabinet, compact machinery by rapid response via local I/O with reliable control of ctrlX DRIVE via ctrlX SAFETYlink and safe integration into any EtherCAT network (FSoE-Master and slave)

Specifications

Number of channels	16
Width [mm]	61
Height [mm]	105
Depth [mm]	85
International protection code	IP20
Protection class	III
Maximum permitted voltage range [V DC]	18-31.2
Power consumption	Idle: Max. 350 mA (DC 24 V); full load: Max. 350 mA + 8 A (outputs) (DC 24 V)
Type of interface	1 × USB host, TYPE C (USB 2.0); RJ45 (IN XF28, OUT XF29): EtherCAT (CoE, EoE, FSoE), SMMC
Number of pulse sources	2
Pulse length (input test)	Typisch 0,25 ms (max. 0,5 ms)
Pulse length (external, tolerated)	Max. 0,5 ms
Number of safe relay outputs (single-channel)	2 (x2 Kontakte)
Maximum number of FSoE slave devices	Bis zu 32 (max. 256 Bytes pro Richtung); Max. 12 Achsen
Safety integrity level	SIL 3 (IEC 61508)
Proof test interval	20 years= max. service life
PFH / architecture	Category 4
Performance level	PL e (EN ISO 13849-1)
Fuse protection (UP)	8 A (4 A in the cULus scope)
Fuse protection (UL)	5 A
Current requirement UL	350 mA
Current requirement Up	8 A (4 A in the cULus scope)
Nominal voltage (UL/UP)	DC 24 V (-10%, +20%), supply type (SELV/PELV); for UL-conformity DC 24 V (-10%, +10%)
Permissible air humidity (storage) [%]	8-95
Permissible air humidity (transport) [%]	5-95
Ambient temperature for transport [°C]	-25-70
Ambient temperature storage [°C]	-40-70
Ambient temperature during operation	Up to 3,000 m: 0 °C to +50 °C; for UL compliance 0° to +45°C
Maximum operating altitude [m]	3000
Contamination level	2 according to DIN EN 60664-1:2007
Weight [kg]	0.49
