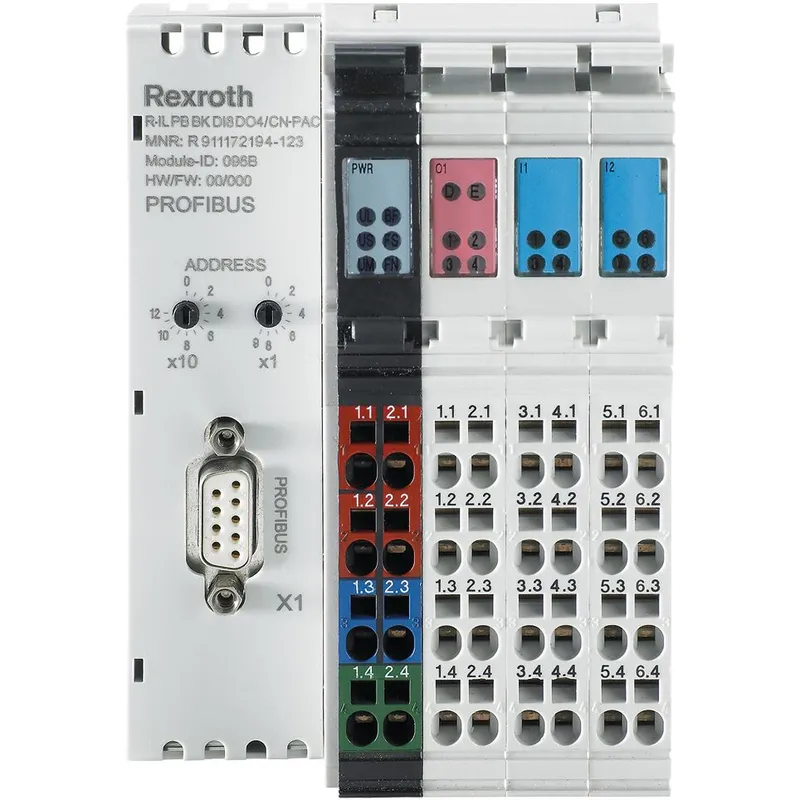

INTERFACE MODULE R-IL PB BK DI8 DO4/CN-PAC

Name: INTERFACE MODULE R-IL PB BK DI8 DO4/CN-PAC
Brand: Bosch Rexroth
SKU: R911172194

MPN: R911172194 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	R-IB IL Bus Couplers
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911172194 be shipped?

R911172194 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911172194 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911172194 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911172194, subject to availability and destination.

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Specifications

Communication	PROFIBUS DP
Connection type	Tension spring connection
Connectivity technology	2-wire, 3-wire technique
Number of channels	12
Width [mm]	80
Height [mm]	120
Depth [mm]	71.5
International protection code	IP20
Short circuit protection, overload protection of the outputs	Integrated free-wheeling circuit in the output chip
Total current [A]	2
Conductor cross-section	AWG: 28 ... 16; Flexible: 0.08-0.5 mm²; rigid: 0.08-0.5 mm²
Permissible air humidity (storage) [%]	95
Permissible air humidity (transport) [%]	95
Ambient temperature (storage and transport) [°C]	-45-85
Ambient temperature (during operation) [°C]	-25-60
Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Weight [kg]	0.34
