DIRECTIONAL SPOOL VALVE 4WE6GA6X/EW110N9DK25L/62
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Directional on/off valve |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901486372 be shipped?
R901486372 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901486372 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901486372 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901486372, subject to availability and destination.
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Spool valve
Direct actuated
Specifications
Specifications
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | WE6../E |
| Operating pressure, max. [bar] | 350.0 |
| Spool symbol | Symbol G |
| Type of connection | Subplate mounting |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 110 - 120 VAC |
| Electrical connector | Connector, 5-pole according to ANSI/B93.55M-1981 |
| Electrical connection description | Connector, 5-pole according to ANSI/B93.55M-1981 (Brad Harrison Mini-Change), with LED |
| Conformity description | CE – Low-Voltage Directive 2014/35/EU; UKCA – Low-Voltage Directive SI2016/1091 |
| Conformity | CE; UKCA |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 1.8 |
More Bosch Rexroth parts
Available on requestDIRECTIONAL SPOOL VALVE 4WE10JA5X/EG125N9K4/M
Available on requestDIRECTIONAL SPOOL VALVE 4WE6C6X/EG12N9K4K
Available on requestPROPORTIONAL DIRECTIONAL VALVE 4WRLD10V1-60L-4X/MPT/24ND6T
Available on requestDIRECTIONAL SPOOL VALVE 4WE6G6X/EG12N9K4K
Available on requestDIRECTIONAL SPOOL VALVE 4WE6W6X/EG24N9K4=UR
Available on requestDIRECTIONAL SPOOL VALVE 4WE6E6X/EG205N9K4QSABG24W
Available on requestDIRECTIONAL SPOOL VALVE 4WE10C5X/OFEG96N9K4/B08M

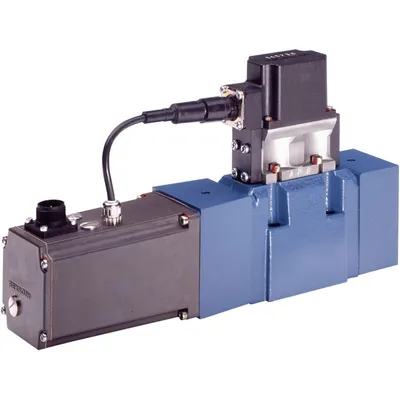

Available on requestPROPORTIONAL DIRECTIONAL VALVE 4WRGE16V125L-1X/315G24K31/A1V
