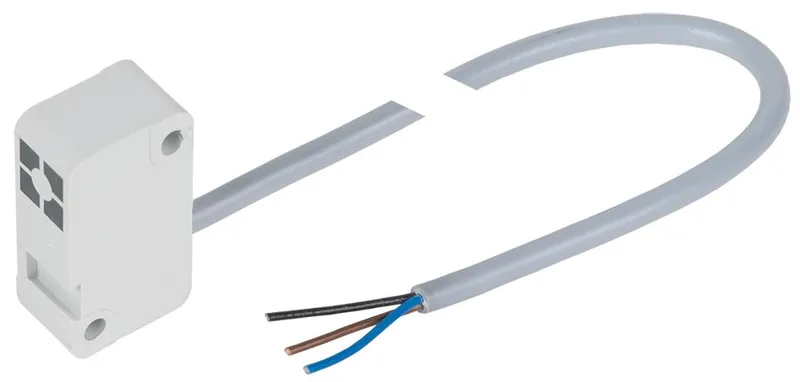

PROXIMITY SWITCH BES517-351-NO-C-03

Name: PROXIMITY SWITCH BES517-351-NO-C-03
Brand: Bosch Rexroth
SKU: R345304001

MPN: R345304001 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Electrical accessories for linear axes
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R345304001 be shipped?

R345304001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R345304001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R345304001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R345304001, subject to availability and destination.

Specifications

Electrical accessories for linear axes	Inductive sensors
Use	Limit switch
Connection type	Line 3 m, 3-pin, free line end
Switching function version	PNP/NC
Permissible ambient temperature (min. ... max.)	-40 °C ... +70 °C
Cable cross-section	3 x 0.14 mm²
Operating voltage (min. … max.)	10 V DC ... 30 V DC
Dynamic bending radius [mm]	12
Static bending radius [mm]	12
Bending cycles	‒
Weight [kg]	0.06
Function indicator	yes
Functional principle	inductive
Bending radius for flexible installation footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote bending radius, static	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Bending cycles footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Footnote cable diameter d with tolerance	Technical data only for the cast-on connection line at the proximity sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
Footnote cable cross-section	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Suitable for drag chains footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Torsion-resistant footnote	Technical data only for the cast-on connection line at the proximity sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Cable diameter D [mm]	3.5
Cable diameter D tolerance [mm]	±0.15
Compatible	CKK, CKR, MKK, MKR, MLR, OBB, SGK, SOK, TKK
Short-circuit protection	no
Load current [A]	≤200
Mean time to dangerous failure (MTTFd) [Years]	830
Option number	11/61
Switching frequency [Hz]	2500
Suitable for drag chains	No
Protection class	IP65
Weld spark-resistant	yes
Torsion-resistant	yes
Reverse polarity protection	no
