BALL GUIDE RAIL RESIST NRII KSA-015-SNS-P-MA-AK

Name: BALL GUIDE RAIL RESIST NRII KSA-015-SNS-P-MA-AK
Brand: Bosch Rexroth
SKU: R204510232

MPN: R204510232 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	High precision ball guide rail BSHP
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R204510232 be shipped?

R204510232 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R204510232 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R204510232 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R204510232, subject to availability and destination.

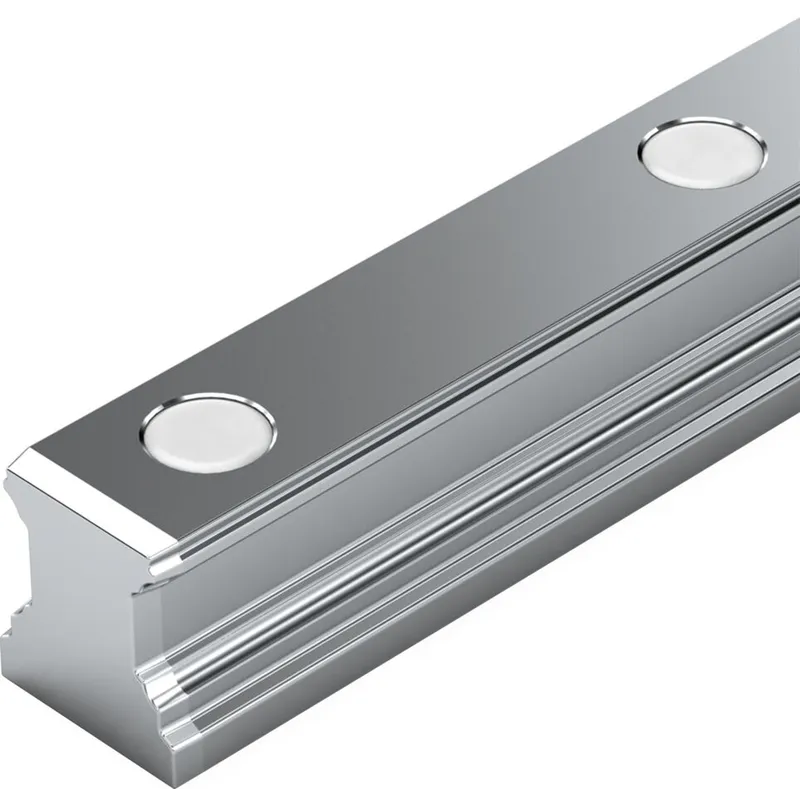

The ball guide rail made of Resist NRII is corrosion-resistant and highly precise. It is characterized by the following product features: Size 15 Format SNS: Width = slimline, length = normal, height = standard Guide rail made of corrosion-resistant steel as per DIN 10088 Fastener MA: Bolting from above Cover AK: Plastic caps Accuracy class precision Number of partial sections: 2 Rail in standard version Maximum rigidity in all load directions High torque load capacity For mounting from above with plastic mounting hole plugs Ball guide rail as well as all steel parts made of corrosion-resistant steel according to DIN EN 10088 No extra space needed at rail ends Observe the instruction for mounting! Please request the “Mounting instructions for ball rail systems.”

Specifications

Version	Ball rail system
Nominal size [mm]	15
Format	SNS - Standard guide rail
Material (profiled rail systems)	Corrosion-resistant steel (Resist NR II)
Accuracy class	P - Precise
Guide rail mounting	For bolting from above
Guide rail cover	Plastic caps
Max. length Lmax [mm]	1856.0
Minimum length Lmin [mm]	80.0
Number of holes nB (profiled rail systems)	30
Number of sections	2-piece
Mass m (kg/m) [kg/m]	1.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Product information	Please configure the product to add it to the shopping cart.

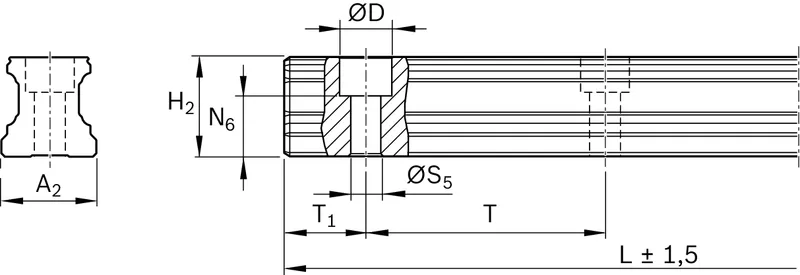

Pitch T guide rail [mm]	60
Dimension A2 (profiled rail systems) [mm]	15
Dimension D [mm]	7.4
Dimension H2 without cover strip (profiled rail systems) [mm]	16.2
Dimension N6 (profiled rail systems) [mm]	10.3
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S5 (profiled rail system) [mm]	4.5
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	50
Dimension T1 min [mm]	10
Dimension T1 s (profiled rail systems) [mm]	28
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1<sub>S</sub> with tolerances ± 0.75 recommended.
