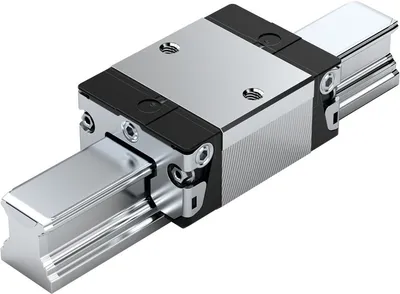

BALL RUNNER BLOCK RESIST NR KWD-015-SKS-C0-H-1

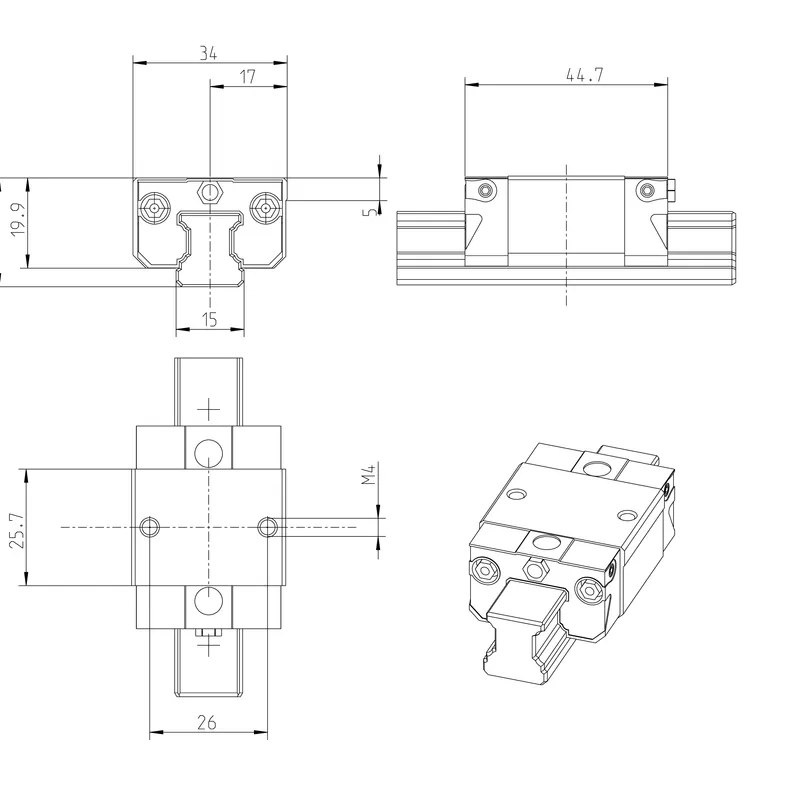

The ball runner block made of Resist NR is corrosion-resistant and highly precise. Additionally, it is characterized by the following product features:<br>Size 15<br>Format SKS: Width = slimline, length = short, height = standard<br>Runner block body made of corrosion-resistant steel as per DIN 10088<br>Preload class C0: Preload-free<br>Accuracy class H: High<br>Without ball chain<br>With initial lubrication and preservation<br>Roller bearing grease Dynalub 510<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 44.7 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. Area of application: For restricted space in longitudinal and transverse direction Ball Runner Block body made of corrosion resistant steel as per DIN EN 10088. Version recommended by Rexroth if corrosion protection is required. Fast delivery. Significantly reduced frictional oscillations and low friction force level, particularly under external load Long-term lubrication is possible over several years Patented entry zone increases the travel accuracy up to a factor of six Attachments on the ball runner block can be mounted from above Maximum precision Excellent dynamic characteristics Can be used on all SNS/SNO ball guide rails The same high load ratings in all four main directions of loading Ball runner block pre-lubricated at the factory
