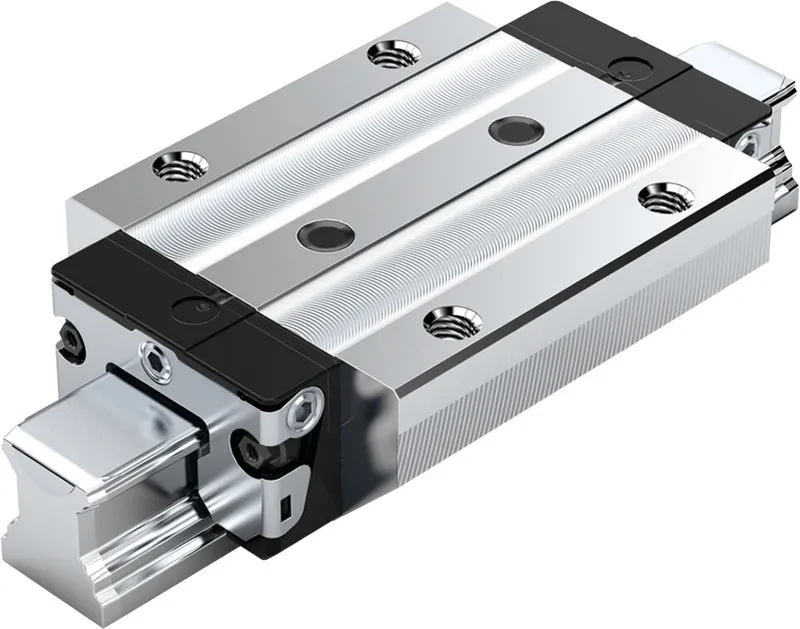

BALL RUNNER BLOCK HIGH-SPEED CARB. STEEL KWD-015-FLS-C2-P-1

The ball runner block is highly precise and enables very high travel speeds. Additionally, it is characterized by the following product features:<br>Size 15<br>Format FLS: Width = flange, length = long, height = standard<br>Runner block body made of carbon steel CS<br>Preload class C2: Medium preload<br>Accuracy class P: Precision<br>Without ball chain<br>With initial lubrication and preservation<br>Roller bearing grease Dynalub 510<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 72.6 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. Available in eight common sizes Area of application: For maximum speeds Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner block Electrically insulating due to use of ceramic balls Attachments on the ball runner block can be mounted from above and below Lube fittings with metal threads on all sides Maximum system rigidity due to preloaded O-arrangement Minimum quantity lubrication with integrated reservoir for oil lubrication High speed thanks to the low weight of ceramic balls Long-term lubrication is possible over several years Smooth, quiet running thanks to optimally designed ball return and guideway End-face fastening thread for all attachments High torque load capacity Ball runner block pre-lubricated at the factory The same high load ratings in all four main directions of loading Patented entry zone increases the travel accuracy up to a factor of six
