ROLLER GUIDE RAIL RESIST CR RSA-055-BNS-H-MA-SC

Name: ROLLER GUIDE RAIL RESIST CR RSA-055-BNS-H-MA-SC
Brand: Bosch Rexroth
SKU: R187356371

MPN: R187356371 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Roller guide rails
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R187356371 be shipped?

R187356371 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R187356371 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R187356371 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R187356371, subject to availability and destination.

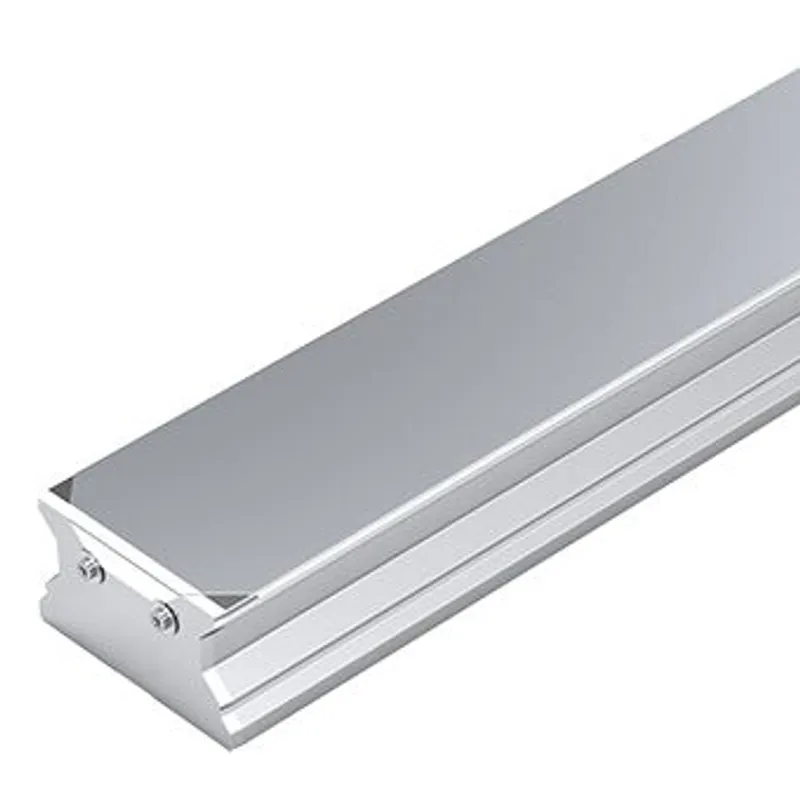

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features: Size 55 Format BNS: Width = wide, length = normal, height = standard Guide rail made of carbon steel CS, matte-silver, hard chrome plated Fastener MA: Bolting from above Cover AB: Cover strip and protective caps Accuracy class high Number of partial sections: one-piece Rail in standard version Double-rowed for mounting from above (with threaded holes at the end faces) Corrosion-resistant Resist CR coating Corrosion-resistant wide roller runner blocks and roller guide rails in Resist CR, matt silver finish, hard chrome-plated, available in accuracy class H (preload C2). Hardened raceways smoothened on all sides One cover for all bore holes saves time and costs Cover strip made of corrosion-resistant spring steel as per DIN EN 10088 Cover strip can be mounted simply and securely Clip on cover strip and lock

Specifications

Version	Roller rail systems
Nominal size [mm]	55/85
Format	BNS - wide guide rail
Material (profiled rail systems)	Hard chrome plated
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip
Max. length Lmax [mm]	3956.0
Number of holes nB (profiled rail systems)	66
Number of sections	One-piece
Mass m (kg/m) [kg/m]	24.7
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	60

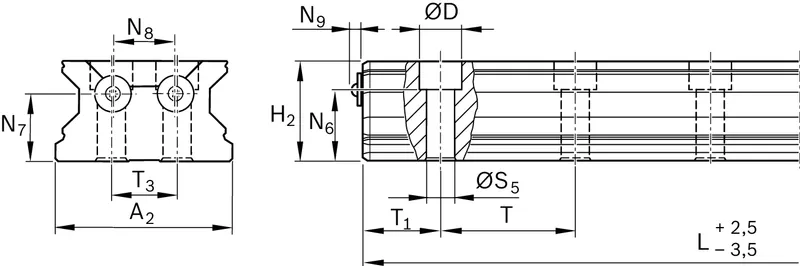

Dimension A2 (profiled rail systems) [mm]	85
Dimension D [mm]	20
Dimension diameter S5 (profiled rail systems)	18
Dimension H2 with cover strip (profiled rail systems) [mm]	47.85
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.3 mm
Dimension N6 (profiled rail systems) [mm]	31.2
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension N7 (profiled rail systems) [mm]	30
Dimension N8 (profiled rail systems) [mm]	32
Dimension N9 (profiled rail systems) [mm]	4.8
Dimension T [mm]	60
Dimension T1 min [mm]	28
Dimension T1 s (profiled rail systems) [mm]	32
Footnote of dimension T1 min (profiled rail systems)	When undercutting T<sub>1 min</sub>, no front-side thread possible. Secure the cover strip! Observe the instruction for mounting!
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerance +1/-1.5
Height of guide rail H2 with cover strip [mm]	47.85
