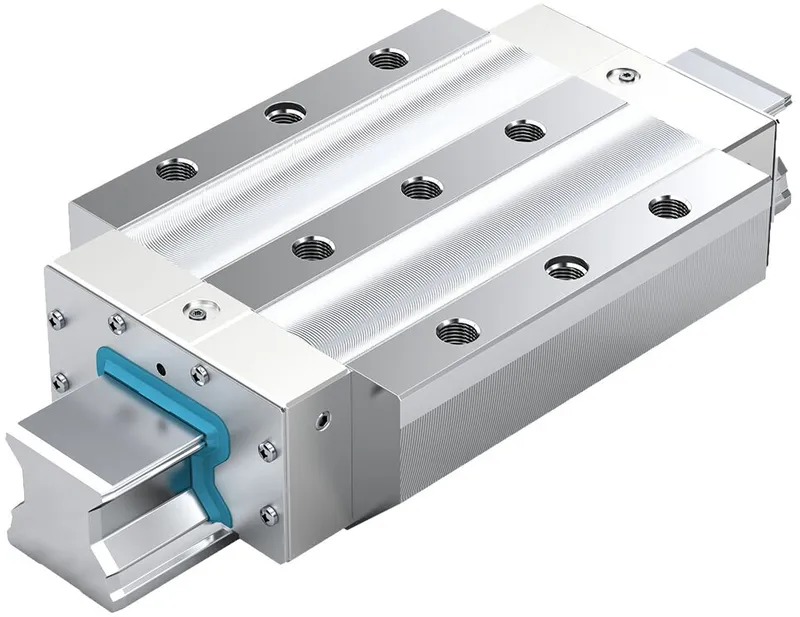

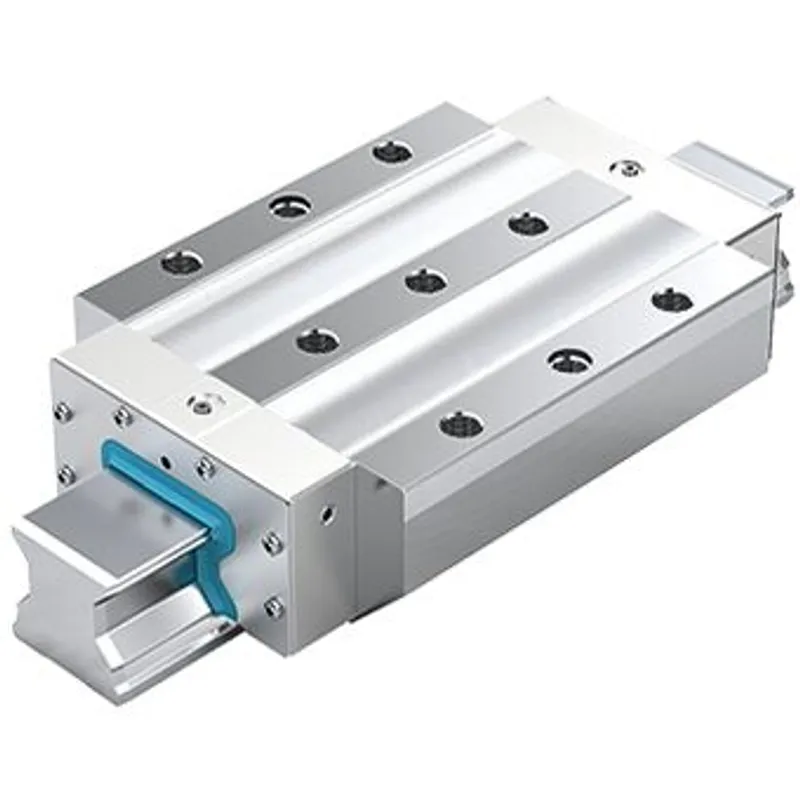

ROLLER RUNNER BLOCK CARBON STEEL RWA-125-FLS-C3-H-2

The roller runner block is highly precise and characterized by the following product features:<br>Size 125<br>Format FLS: Width = flange, length = long, height = standard<br>Runner block body made of unalloyed steel CS<br>Preload class C3: High preload<br>Accuracy class H: High<br>Without roller chain<br>Preserved<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 491.5 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. Heavy-Duty Roller Runner Block for heavy machine construction with extremely high load capacity Maximum rigidity in all load directions Improved rigidity under lift-off and side loading conditions due to three additional mounting screw holes at the center of the Roller Runner Block High torque load capacity Limitless interchangeability and any number of combination options thanks to uniform Roller Guide Rails in different versions across all Roller Runner Block variants Attachments on the Roller Runner Block can be mounted from above and below Lube nipples possible on all sides for easy maintenance Minimum lubrication quantities thanks to innovative channel design Smooth, quiet running thanks to optimally designed return and guideways of the rollers Minimal variation in elastic deflection thanks to optimized entry-zone geometry and high number of rollers Aluminum end caps (size 125) and/or plastic (size 100) Integrated front seals are included as standard for improved sealing of all running tracks and to protect the plastic parts

Specifications
