ROLLER GUIDE RAIL RESIST CR RSA-045-SNS-H-MA-AK
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Roller guide rails |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R184540342 be shipped?
R184540342 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R184540342 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R184540342 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R184540342, subject to availability and destination.
The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:<br>Size 45<br>Format SNS: Width = slimline, length = normal, height = standard<br>Guide rail made of carbon steel CS, matte-silver, hard chrome plated<br>Fastener MA: Bolting from above<br>Cover AK: Plastic caps<br>Accuracy class high<br>Number of partial sections: 2<br>Rail in standard version For mounting from above With plastic mounting hole plugs Hardened raceways smoothened on all sides Maximum rigidity in all load directions Very high torque load capacity Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated Corrosion-resistant Roller Runner Blocks and Roller Guide Rails in Resist CR, hard chrome plated, available in accuracy class H. Accuracy classes P and SP available upon request
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 45 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Plastic caps |
| Max. length Lmax [mm] | 3986.0 |
| Minimum length Lmin [mm] | 137.0 |
| Number of holes nB (profiled rail systems) | 76 |
| Number of sections | 2-piece |
| Mass m (kg/m) [kg/m] | 10.3 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 52.5 |

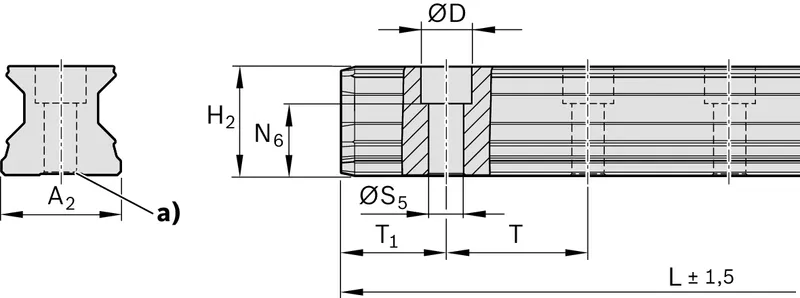

| Dimension A2 (profiled rail systems) [mm] | 45 |
| Dimension D [mm] | 20 |
| Dimension diameter S5 (profiled rail systems) | 14 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 38.8 |
| Dimension N6 (profiled rail systems) [mm] | 22.4 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension T [mm] | 52.5 |
| Dimension T1 max (profiled rail systems) [mm] | 36.5 |
| Dimension T1 min [mm] | 18 |
| Dimension T1 s (profiled rail systems) [mm] | 24.25 |
| Footnote of dimension T1 s (profiled rail systems) | Preferred dimension T<sub>1S</sub> with tolerances ± 0.75 |
